30560 - Toro 52" Rear-Discharge Mower Deck (SN: 005000001 - 005999999) (1985) SEAT MOUNT AND AIR CLEANER ASSEMBLY Parts Diagram

52" Rear-Discharge Mower Deck

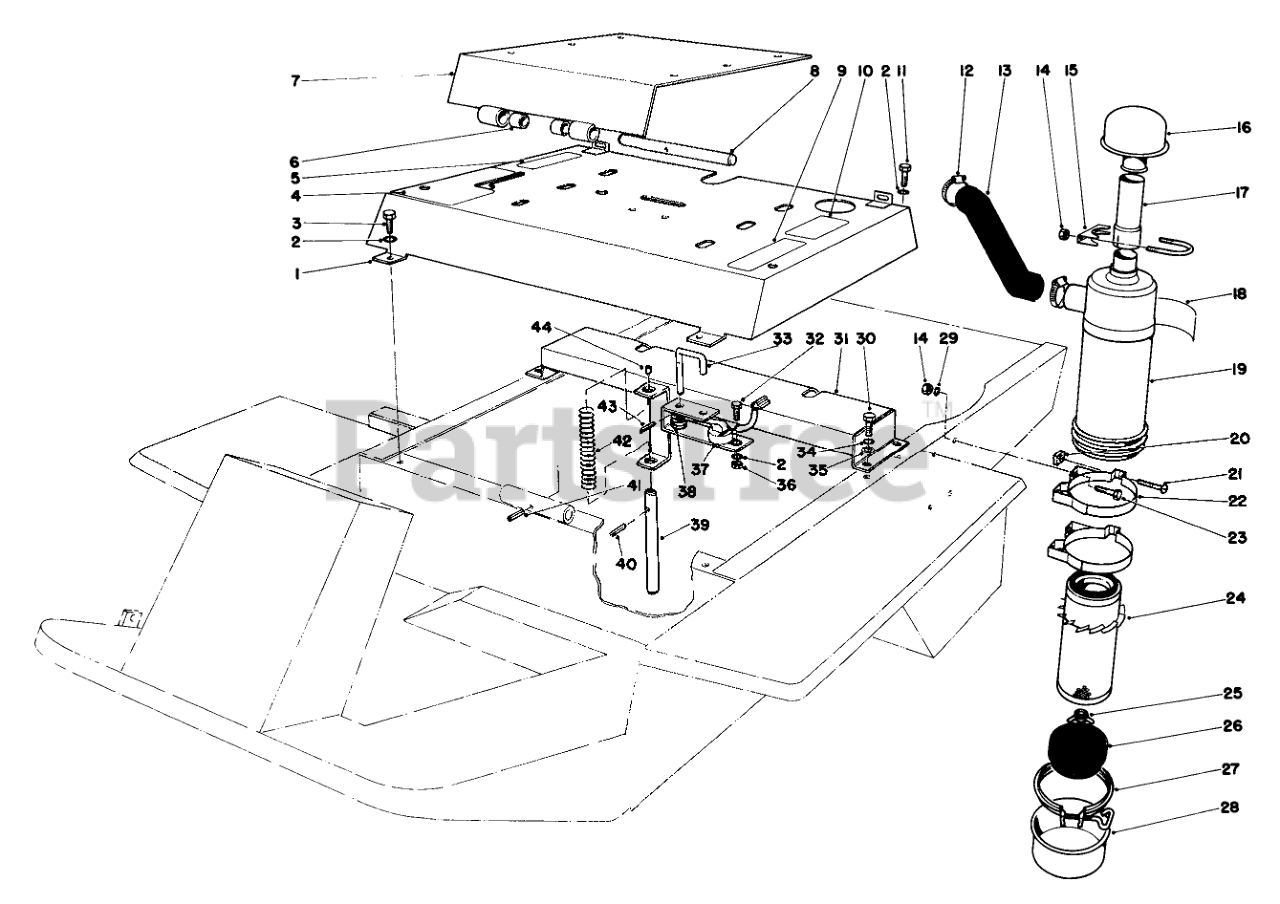

SEAT MOUNT AND AIR CLEANER ASSEMBLY Parts Diagram

  • Title

1

Toro 38-2470

Cover-Seat Support (Incl. Ref. #4, 5, 9 & 10)

$

$

Not available

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 32104-114

SCREW THD 1/4 20 5/8

$

$

Not available

4

Toro 27-4390

Decal Hydraulic Lift
(Superseded to 68-7320)

$

$

Not available

5

Toro 28-3290

Decal Caution
(Superseded to 67-1710)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 256-173

.503ID X .875LG BSHG

$1.99

$

Usually ships in 3-6 days

0

7

Toro 38-4020

Seat Mounting (Incl. Ref. #6)

$

$

Not available

8

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

9

Toro 27-4620

Decal Caution
(Superseded to 68-7330)

$

$

Not available

10

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

13

Toro 44-9050

HOSE

$91.99

$

Usually ships in 3-6 days

0

14

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

15

Toro 20-4840

CLAMP-MUFFLER

$18.99

$

Usually ships in 3-6 days

0

16

Toro 27-7180

CAP

$74.99

$

Usually ships in 3-6 days

0

17

Toro 44-8950

Tube-Air Cleaner
(Superseded to 44-8950-03)

$

$

Not available

18

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

19

Toro 27-7100

Air Cleaner Assembly (Incl. Ref. #18 & 24-28)

$451.99

$

Usually ships in 3-6 days

0

20

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

22

Toro 27-7170

Band Assembly Mounting (Incl. Ref. #20 & 21)

$

$

Not available

23

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 27-7110

ELEMENT ASM
(Superseded to 108-3833)

$29.99

$

In Stock, only 3 left!

0

25

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

26

Toro 27-7140

SKIRT-BAFFLE

$110.99

$

Usually ships in 3-6 days

0

27

Toro 27-7130

CLAMP ASM

$52.99

$

Usually ships in 3-6 days

0

28

Toro 27-7150

A/C CUP ASM

$95.99

$

Usually ships in 3-6 days

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 37-9770

Seat Support
(Superseded to 37-9770-01)

$

$

Not available

32

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 38-3170

SEAT SWITCH PIN

$

$

Not available

34

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

35

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

36

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

37

Toro 29-6930

SWITCH ARM

$

$

Not available

38

Toro 3-6685

SPRING

$10.99

$

Usually ships in 3-6 days

0

39

Toro 27-9870

PIN-SWITCH, SEAT

$39.99

$

Usually ships in 3-6 days

0

40

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

41

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

42

Toro 37-9590

SPRING-COMP

$

$

Not available

43

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

44

Toro 28-6180

PIN-PEDAL

$6.99

$

Usually ships in 3-6 days

0
