30560F - Murray 30" Lawn Tractor (1998) Electrical System Parts Diagram

30" Lawn Tractor

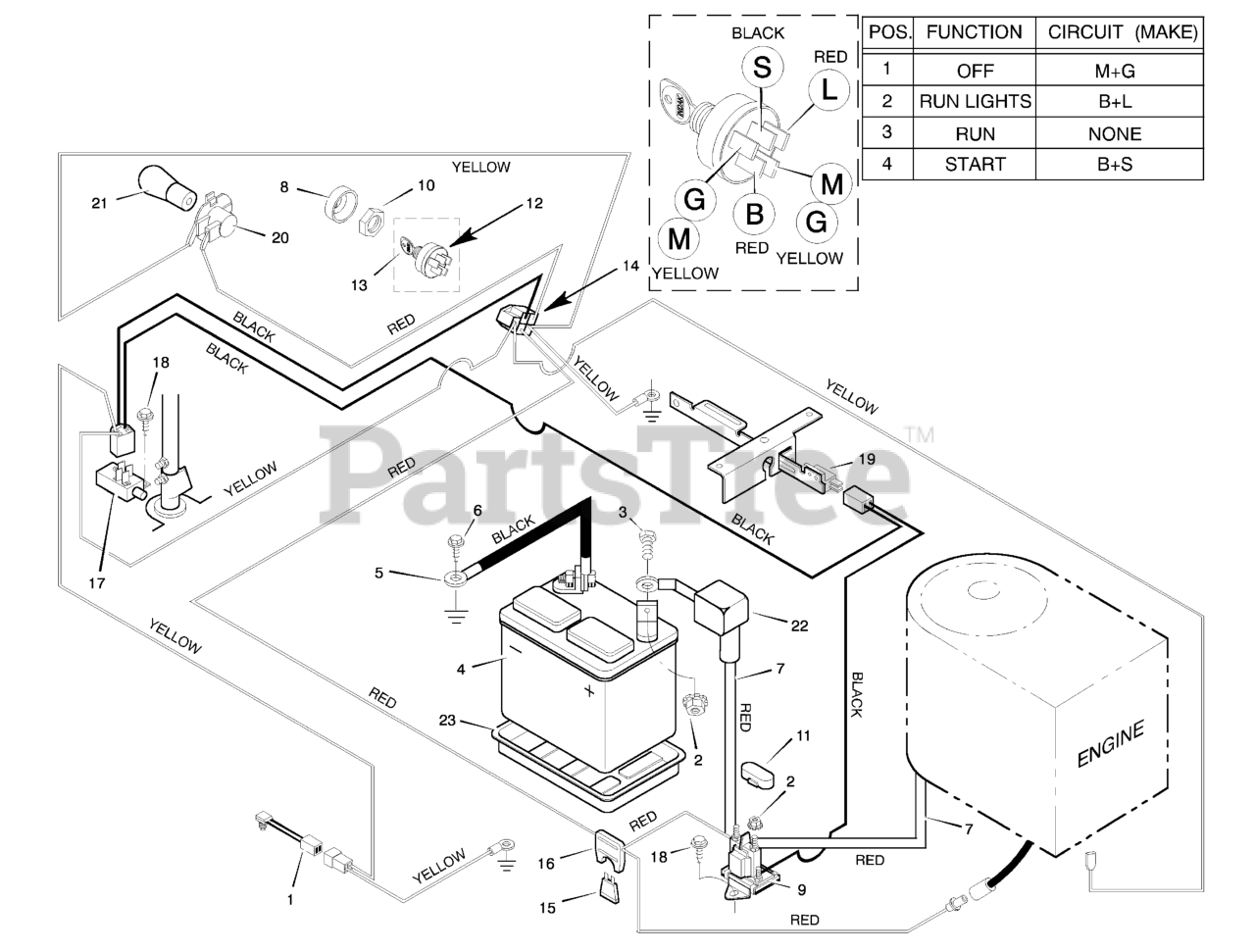

Electrical System Parts Diagram

  • Title
1

Murray Part# 091031

Switch, Seat Sensor
Usually ships same day

Currently unavailable

$

$

2

Murray Part# 015X66MA

Locknut
(Superseded to 703914)
Usually ships in 1 day

$

$2.67

0

Usually ships in 1 day

$

$3.46

0

Usually ships same day

Currently unavailable

$

$

5

Murray Part# 0024X3MA

Cable, Battery Ground
Usually ships in 3 to 5 days

$

$6.93

0

Usually ships in 3 to 5 days

$

$3.57

0

7

Murray Part# 024X24MA

Cable, Red Battery
Usually ships in 1 day

$

$6.36

0

8

Murray Part# 091488

Cap, Ignition
(Superseded to 091488MA)
Usually ships in 1 day

$

$3.34

0

9
Usually ships same day

Currently unavailable

$

$

10
Usually ships in 6 to 12 days

$

$4.61

0

11

Murray Part# 056049

Cover, Solenoid
Usually ships in 3 to 5 days

$

$3.02

0

12

Murray Part# 091846MA

Switch, Ignition
Usually ships in 1 day

$

$23.03

0

13

Murray Part# 020729

Key, Ignition
Usually ships in 3 to 5 days

$

$4.92

0

14

Murray Part# 250X85MA

Harness, Chassis Wire
Usually ships in 3 to 5 days

$

$105.82

0

Usually ships in 3 to 5 days

$

$5.81

0

16

Murray Part# 407078MA

Holder, Fuse
Usually ships in 3 to 5 days

$

$15.32

0

17

Murray Part# 091032MA

Switch, Limit
Usually ships in 1 day

$

$20.24

0

Usually ships in 3 to 5 days

$

$2.85

0

19

Murray Part# 024273MA

Switch, Limit
Usually ships in 1 day

$

$7.83

0

20

Murray Part# 092372

Socket, Light
Usually ships in 1 day

$

$5.70

0

21

Murray Part# 090084MA

Bulb, Light
(Superseded to 1677371SM)
Usually ships in 1 day

$

$23.47

0

22

Murray Part# 054148MA

Cover, Terminal
Usually ships in 3 to 5 days

$

$3.91

0

23

Murray Part# 091896MA

Tray, Battery
Usually ships in 3 to 5 days

$

$8.11

0
