30560F - Murray 30" Lawn Tractor (1998) Mower Housing Suspension Parts Diagram

30" Lawn Tractor

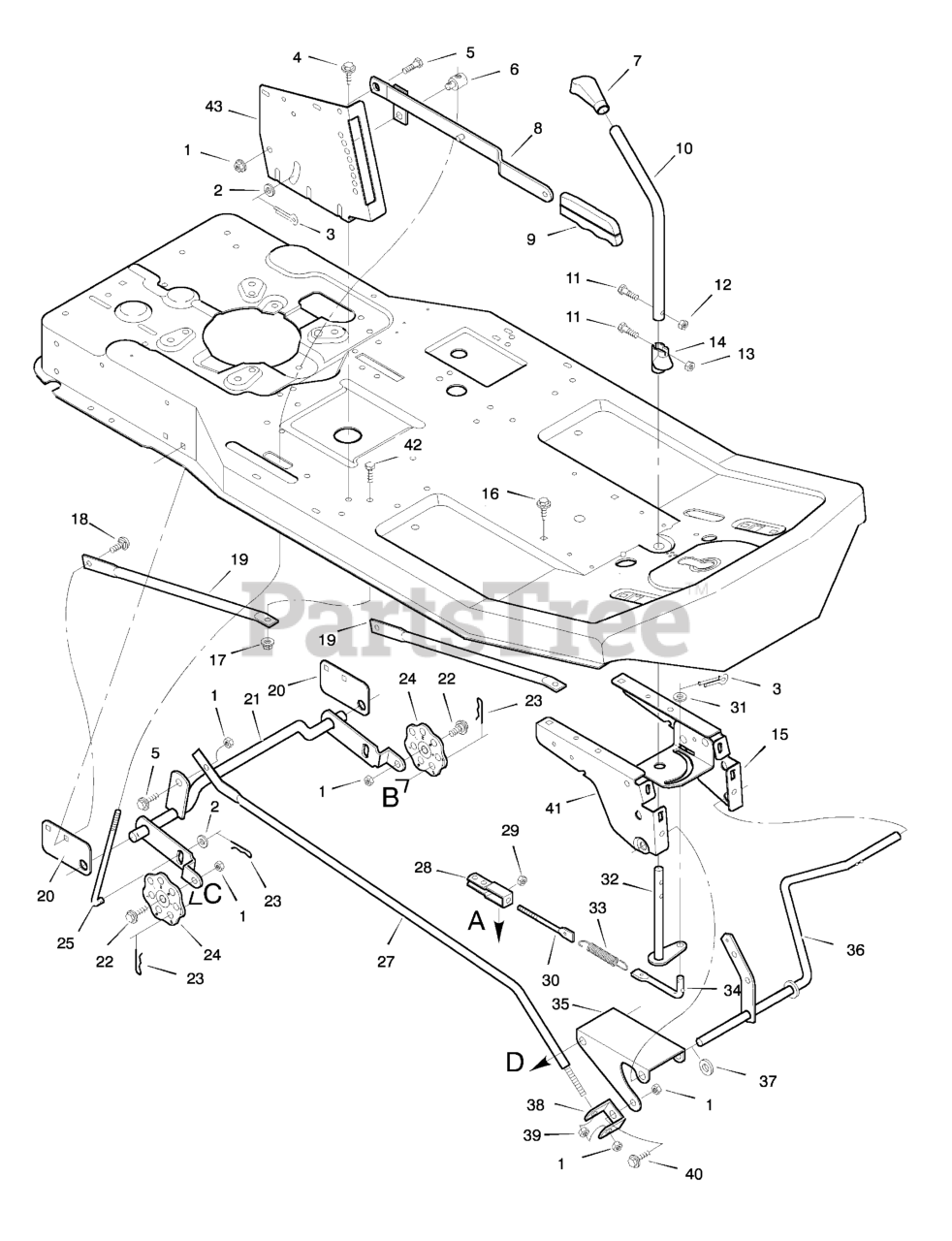

Mower Housing Suspension Parts Diagram

  • Title
1

Murray Part# 015X84MA

Locknut, Flange
Usually ships in 1 day

$

$5.36

0

Usually ships same day

Currently unavailable

$

$

3

Murray Part# 030X20MA

Pin, Cotter
(Superseded to 703312)
Usually ships in 1 day

$

$3.23

0

Usually ships same day

Not available

$

$

5

Murray Part# 009X39MA

Bolt, Shoulder
Usually ships in 1 day

$

$4.91

0

6

Murray Part# 021920ZMA

Nut, Adjusting
Usually ships in 3 to 5 days

$

$11.17

0

7

Murray Part# 092698MA

Grip, Blade Control
(Superseded to 1753233YP)
Usually ships in 1 day

$

$4.81

0

8

Murray Part# 056031E700

Lever Assembly, Lift
Usually ships in 3 to 5 days

$

$21.69

0

9

Murray Part# 091573

Grip, Lift Lever
Usually ships in 3 to 5 days

$

$3.41

0

10

Murray Part# 055927 Z

Attachment, Clutch
Usually ships same day

Currently unavailable

$

$

11
Usually ships in 3 to 5 days

$

$2.74

0

12

Murray Part# 015X66MA

Locknut
(Superseded to 703914)
Usually ships in 1 day

$

$2.67

0

13

Murray Part# 015X89MA

Locknut, Flange
Usually ships in 6 to 12 days

$

$3.57

0

14

Murray Part# 055853MA

Cam, Blade Control
Usually ships in 3 to 5 days

$

$4.64

0

15

Murray Part# 56224E700

Plate, Left Suspension
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

17

Murray Part# 015X88MA

Locknut, Flange
Usually ships in 1 day

$

$2.90

0

18

Murray Part# 002X64MA

Bolt, Carriage
Usually ships in 1 day

$

$2.96

0

19

Murray Part# 055326

Strut, Frame
Usually ships in 3 to 5 days

$

$92.91

0

20

Murray Part# 055270E700

Plate, Mounting
Usually ships in 3 to 5 days

$

$58.64

0

21

Murray Part# 055346E700MA

Rod Assembly, Rear Suspension
Usually ships in 3 to 5 days

$

$32.76

0

22

Murray Part# 0009X4MA

Bolt, Shoulder
Usually ships same day

Not available

$

$

23

Murray Part# 0031X4MA

Pin, Hair
(Superseded to 703300)
Usually ships in 1 day

$

$3.01

0

24

Murray Part# 055344 Z

Plate, Adjusting
Usually ships same day

Currently unavailable

$

$

25
Usually ships same day

Currently unavailable

$

$

27

Murray Part# 055957E700

Rod, Suspension
Usually ships same day

Currently unavailable

$

$

Usually ships same day

Currently unavailable

$

$

29
Usually ships in 1 day

$

$3.47

0

30

Murray Part# 055271 Z

Link, Blade Drive
Usually ships same day

Currently unavailable

$

$

Usually ships in 6 to 12 days

$

$7.26

0

32

Murray Part# 055930E700

Rod and Arm Assembly
Usually ships in 3 to 5 days

$

$14.37

0

33

Murray Part# 165X67MA

Spring, Extension
Usually ships in 3 to 5 days

$

$19.73

0

34

Murray Part# 055179 Z

Link, Front Deck
Usually ships same day

Currently unavailable

$

$

35

Murray Part# 055139E700MA

Bracket, Front Suspension
Usually ships in 3 to 5 days

$

$41.14

0

36
Usually ships in 3 to 5 days

$

$58.25

0

Usually ships same day

Currently unavailable

$

$

Usually ships in 3 to 5 days

$

$17.11

0

39

Murray Part# 015X73

Locknut, Hex
Usually ships in 1 day

$

$2.96

0

40

Murray Part# 009X17MA

Bolt, Shoulder
Usually ships in 3 to 5 days

$

$2.96

0

41

Murray Part# 056023E700

Plate, Right Suspension
Usually ships same day

Currently unavailable

$

$

42
Usually ships in 1 day

$

$3.46

0

43
Usually ships in 3 to 5 days

$

$22.64

0
