30562 - Toro 62" Mower Deck for Groundsmaster 200 Series (SN: 000030001 - 000039999) (1983) Engine, Onan Model No. B48g-Ga020 Type No. 4051c Ignition System Parts Diagram

62" Mower Deck for Groundsmaster 200 Series

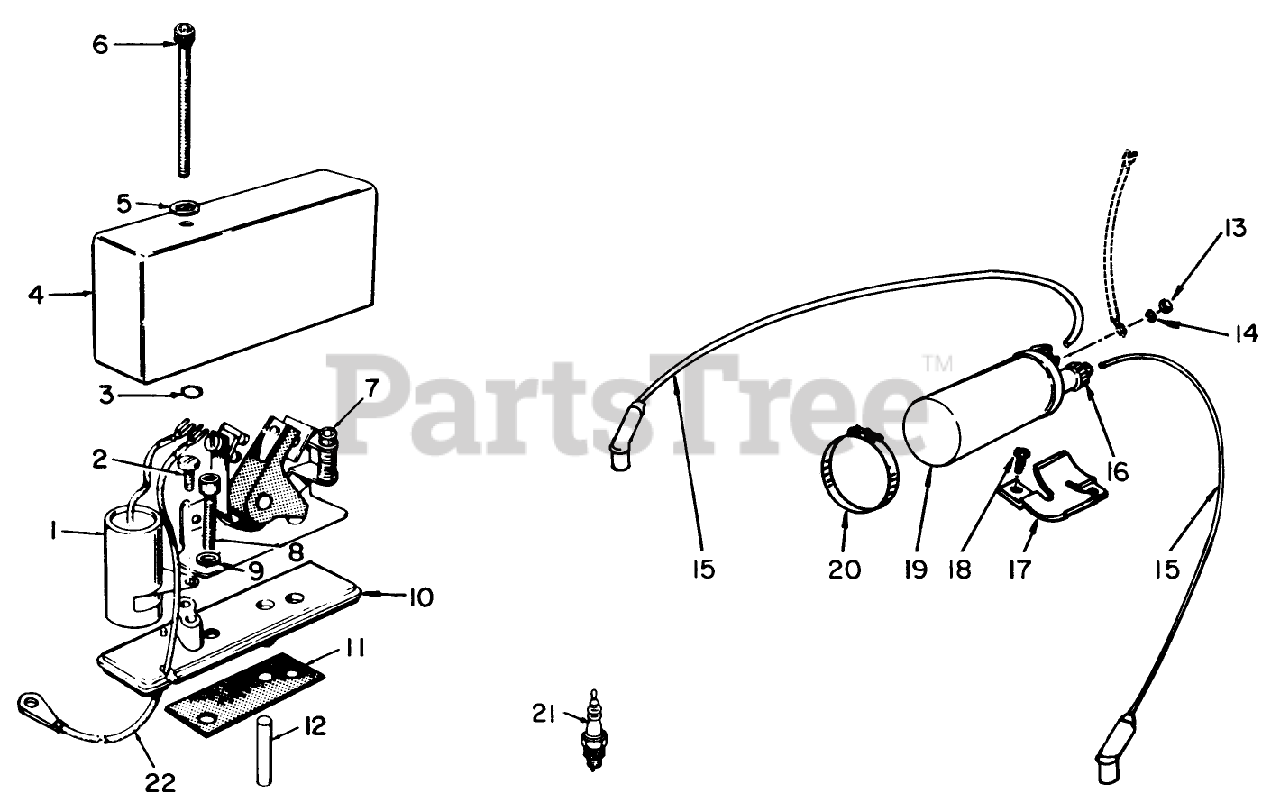

Engine, Onan Model No. B48g-Ga020 Type No. 4051c Ignition System Parts Diagram

  • Title
1

Toro 312-0244

Condenser

$

$

Currently unavailable

2

Toro 815-0358

Cap Screw Slotted

$

$

Currently unavailable

3

Toro 509-0065

Retainer ("O" Ring)

$

$

Currently unavailable

4

Toro 160-1285

Cover, Breaker Box

$

$

Currently unavailable

5

Toro 526-0008

Flat Washer

$

$

Currently unavailable

6

Toro 802-0022

Screw, Cap-Hex Socket

$

$

Currently unavailable

7

Toro 160-1183

Point Set Breaker

$

$

Currently unavailable

8

Toro 802-0034

Cap Screw Socket Hd.

$

$

Currently unavailable

9

Toro 850-0038

Lockwasher

$

$

Currently unavailable

10

Toro 160-1219

Base Breaker

$

$

Currently unavailable

11

Toro 160-1150

Gasket, Breaker Box

$

$

Currently unavailable

12

Toro 160-1151

Plunger, Breaker Points

$

$

Currently unavailable

13

Toro 166-0554

Nut-Hex, Special

$

$

Currently unavailable

14

Toro 850-2005

Washer, Lock-Spring

$

$

Currently unavailable

15

Toro 167-1595

Cable-Spark Plug 27" Right

$

$

Currently unavailable

Toro 167-1596

Cable-Spark Plug 9" Left

Note: Not illustrated

$

$

Currently unavailable

16

Toro 166-0604

Cap Coil Terminal

$

$

Currently unavailable

17

Toro 166-0721

Bracket Ignition Coil

$

$

Currently unavailable

18

Toro 821-0009

Screw, Cap Hex Washer Hd.

$

$

Currently unavailable

19

Toro 166-0535

Coil, Ignition

$

$

Currently unavailable

20

Toro 503-0311

Camp, Ignition Coil

$

$

Currently unavailable

21

Toro 167-0291

Plug, Spark

$

$

Currently unavailable

22

Toro 336-8402

Lead-Breaker Box to Coil

$

$

Currently unavailable

Toro 160-1303

Breaker Box (Incl. Ref. #1-11)

Note: Not illustrated

$

$

Currently unavailable
