30564 - Toro 62" Walk-Behind Mower (SN: 000800001 - 000899999) (1988) ELECTRICAL SCHEMATIC Parts Diagram

62" Walk-Behind Mower

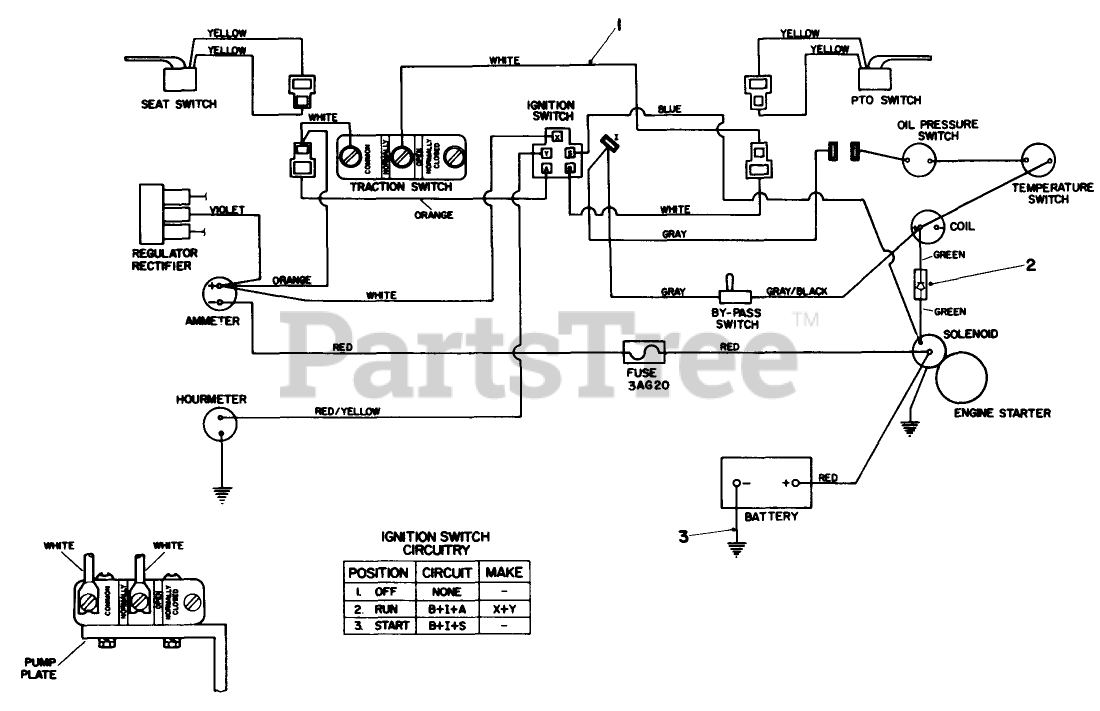

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

1

Toro 62-3120

Wire Harness (Incl. Ref. #2)

$

$

Not available

2

Toro 62-3240

JUMPER WIRE

$

$

Not available

3

Toro 27-5090

BATTERY GROUND WIRE

$49.99

$

Usually ships in 3-6 days
