30564 - Toro 62" Walk-Behind Mower (SN: 000800001 - 000899999) (1988) ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G IGNITION SYSTEM Parts Diagram

62" Walk-Behind Mower

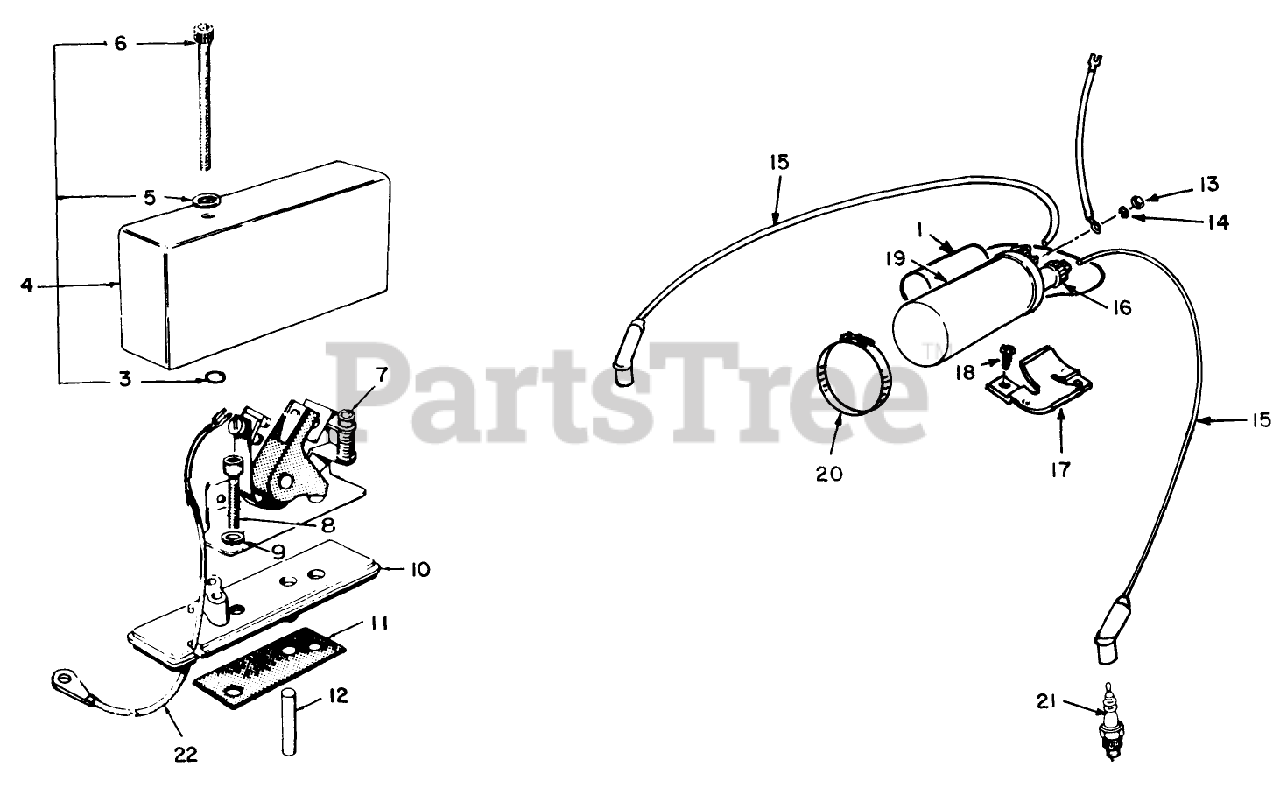

ENGINE, ONAN MODEL NO. B48G-GA020 TYPE NO. 4348G IGNITION SYSTEM Parts Diagram

  • Title

1

Toro 59-1180

CONDENSER

$45.99

$

Usually ships in 3-6 days

0

3

Toro 57-9600

Retainer ("0" Ring)

$

$

Not available

4

Toro 59-0500

BREAKER BOX COVER

$

$

Not available

5

Toro 59-0800

FLAT WASHER

$

$

Not available

6

Toro 3274-59

SCREW-HSH

$1.99

$

Usually ships in 3-6 days

0

7

Toro 57-9280

BREAKER ASM

$

$

Not available

8

Toro 59-0920

Cap Screw Socket Hd.

$

$

Not available

9

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 59-0490

BREAKER BASE

$

$

Not available

11

Toro 57-9260

GASKET

$

$

Not available

12

Toro 57-9270

PLUNGER

$

$

Not available

13

Toro 57-9320

Nut-Hex, Special
(Superseded to 71-6440)

$

$

Not available

14

Toro 59-1140

M5 SPRING WASHER

$

$

Not available

15

Toro 57-9350

CABLE KIT

$98.99

$

Usually ships in 3-6 days

0

16

Toro 57-9330

NUT

$

$

Not available

17

Toro 59-0510

BRACKET

$

$

Not available

18

Toro 59-1090

HX WSHR HD CAPSCREW

$

$

Not available

19

Toro 57-9310

COIL

$

$

Not available

20

Toro 57-9560

Clamp, Ignition Coil

$

$

Not available

21

Toro 57-9340

SPARK PLUG

$4.49

$

In Stock, only 4 left!

0

22

Toro 59-0610

Lead-Breaker Box to Coil

$

$

Not available

Toro 57-9290

Breaker Box (Incl. Ref. #1-11)

$

$

Not available

Toro 57-9300

Ignition Kit

$

$

Not available
