30564 - Toro 62" Walk-Behind Mower (SN: 079000001 - 079999999) (1997) COVER & DEFLECTOR ASSEMBLY Parts Diagram

62" Walk-Behind Mower

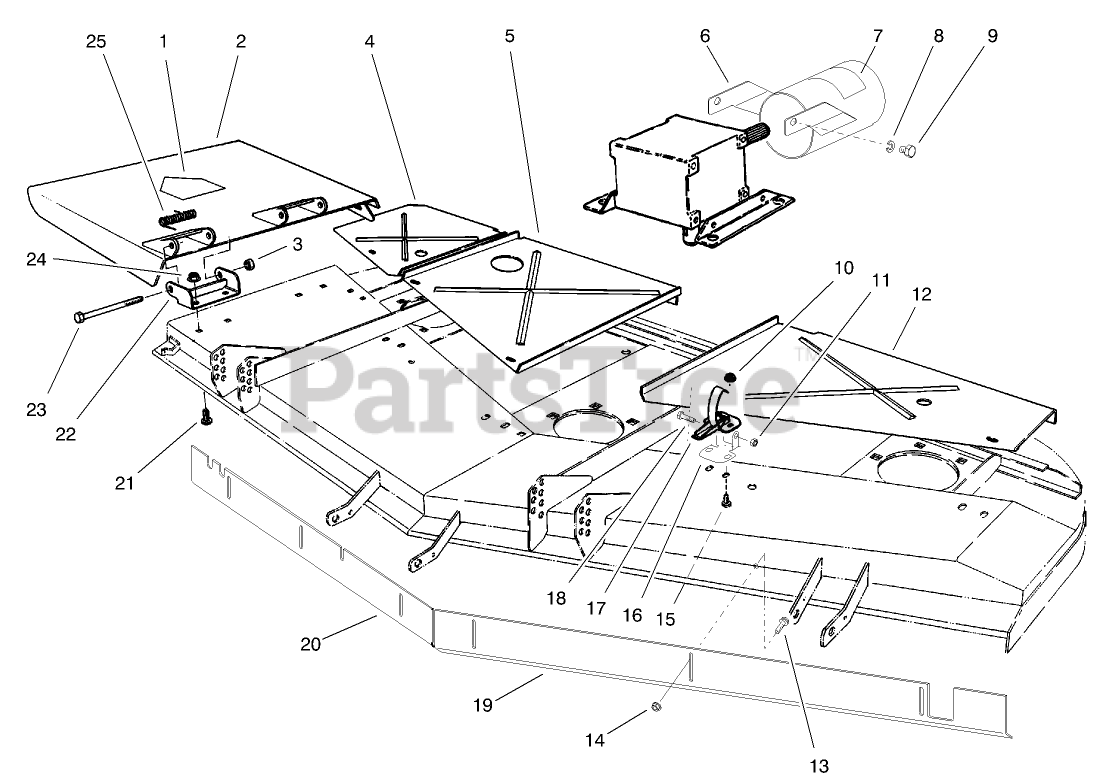

COVER & DEFLECTOR ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 54-9220

DECAL-DANGER
(Superseded to 93-1122)
Usually ships in 1 day

$

$7.48

0

1

Toro Part# 93-7316

DECAL-DANGER
Usually ships in 1 day

$

$6.78

0

2

Toro Part# 14-0909

Deflector (Incl. Ref. #1)
Usually ships in 5 to 8 days

$

$286.24

0

3
Usually ships in 1 day

$

$1.61

0

4

Toro Part# 63-9830

Cover-Deck R.H.
(Superseded to 63-9830-01)
Usually ships in 5 to 8 days

$

$126.01

0

5

Toro Part# 72-9320

Cover-Deck Center
(Superseded to 72-9320-01)
Usually ships in 5 to 8 days

$

$129.19

0

6

Toro Part# 93-9826

Guard-PTO Shaft
(Superseded to 99-8408)
Usually ships same day

Not available

$

$

7

Toro Part# 93-7283

DECAL-DANGER
Usually ships in 5 to 8 days

$

$28.53

0

8

Toro Part# 3253-21

WASHER-LOCK
Usually ships in 1 day

$

$0.18

0

9

Toro Part# 323-2

SCREW-HH
Usually ships in 5 to 8 days

$

$0.55

0

10

Toro Part# 32128-17

NUT-LOCK, FLANGE
Usually ships in 1 day

$

$0.34

0

11

Toro Part# 3296-56

NUT-LOCK, NI
Usually ships in 1 day

$

$1.61

0

12

Toro Part# 44-6290

Cover-Deck L.H.
(Superseded to 44-6290-01)
Usually ships same day

Not available

$

$

13

Toro Part# 3234-5

SCREW-HHF
Usually ships in 5 to 8 days

$

$0.91

0

Usually ships in 1 day

$

$0.74

0

15
Usually ships in 1 day

$

$3.73

0

16

Toro Part# 93-7043

RETAINER-LATCH
Usually ships in 5 to 8 days

$

$13.21

0

17

Toro Part# 249-21

CLAMP-SLOTTED
Usually ships in 1 day

$

$15.02

0

18

Toro Part# 321-8

SCREW-HH
Usually ships in 1 day

$

$3.15

0

19

Toro Part# 82-8810

Baffle-Front LH
(Superseded to 99-5152-01)
Usually ships in 5 to 8 days

$

$71.69

0

20

Toro Part# 82-8820

Baffle-Front RH
(Superseded to 82-8820-01)
Usually ships in 5 to 8 days

$

$71.69

0

21

Toro Part# 3231-27

SCREW-CARR
Usually ships in 1 day

$

$3.63

0

22

Toro Part# 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)
Usually ships in 5 to 8 days

$

$30.40

0

23
Usually ships in 1 day

$

$5.03

0

24

Toro Part# 3290-357

NUT-HHF, WHIZ
Usually ships in 1 day

$

$0.79

0

25
Usually ships in 5 to 8 days

$

$10.08

0
