30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 230000001 - 230999999) (2003) GEAR BOX ASSEMBLY NO. 104-3441 Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

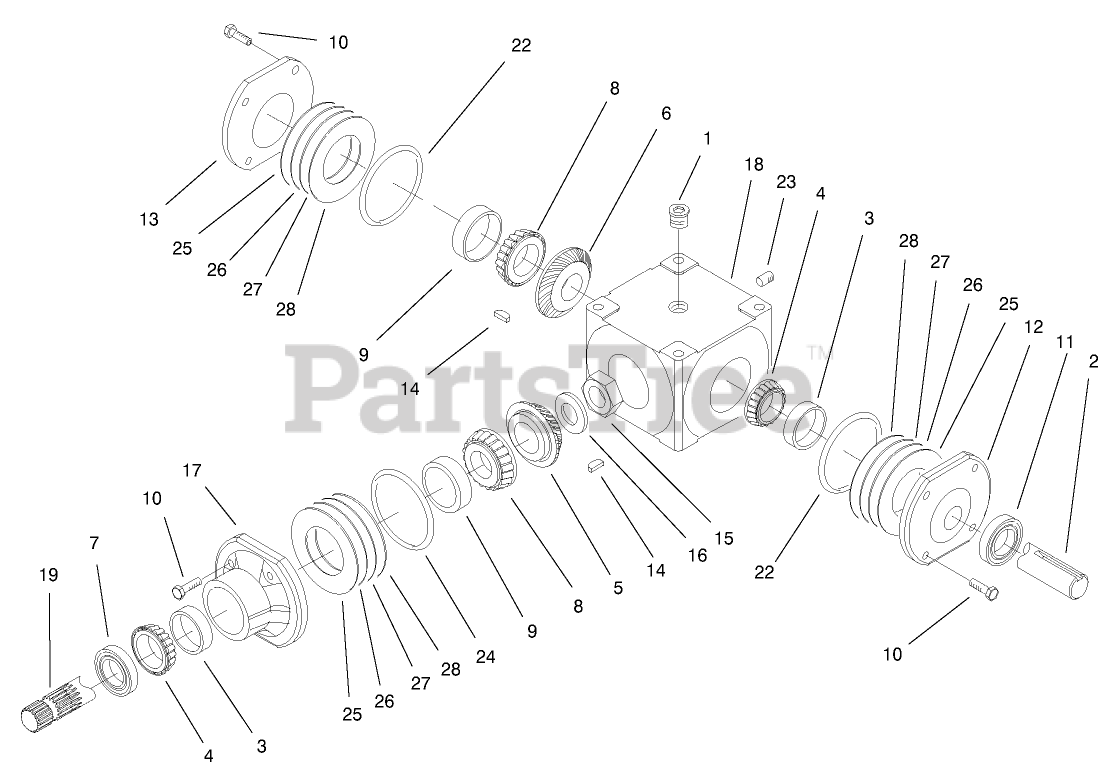

GEAR BOX ASSEMBLY NO. 104-3441 Parts Diagram

  • Title

1

Toro 100-5812

PLUG

$19.99

$

Usually ships in 3-6 days

0

2

Toro 100-9980

SHAFT-CROSS

$

$

Not available

3

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$9.99

$

In Stock, Qty 20+

0

4

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 14

0

5

Toro 100-9981

GEAR-SPIRAL, RH

$

$

Not available

6

Toro 100-9982

GEAR-SPIRAL, LH
(Superseded to 108-1370)

$999.99

$

Usually ships in 3-6 days

0

7

Toro 100-4575

SEAL

$58.99

$

In Stock, only 2 left!

0

8

Toro 100-5816

BEARING-CONE

$112.99

$

Usually ships in 3-6 days

0

9

Toro 100-5817

BEARING-CUP

$49.99

$

Usually ships in 3-6 days

0

10

Toro 100-5818

SCREW-HH

$

$

Not available

11

Toro 100-4576

SEAL
(Superseded to 253-118)

$18.99

$

In Stock, Qty 20+

0

12

Toro 100-5820

CAP-END

$

$

Not available

13

Toro 100-9984

CAP-END, CLOSED

$

$

Not available

14

Toro 100-5822

OBS KEY
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

15

Toro 100-5823

NUT-LOCK

$

$

Not available

16

Toro 100-5824

WASHER

$14.99

$

Usually ships in 3-6 days

0

17

Toro 100-5825

HOUSING-PINION

$

$

Not available

18

Toro 100-9985

CASE

$

$

Not available

19

Toro 104-0118

SHAFT-PINION

$663.99

$

Usually ships in 3-6 days

0

22

Toro 100-1372

O-RING
(Superseded to 100-5847)

$19.99

$

Usually ships in 3-6 days

0

23

Toro 100-4579

PLUG

$30.99

$

Usually ships in 3-6 days

0

24

Toro 100-1393

O-RING

$17.99

$

Usually ships in 3-6 days

0

25

Toro 100-1394

SHIM-GREEN (.003IN)

$16.99

$

Usually ships in 3-6 days

0

26

Toro 100-1395

SHIM-BLUE (.005)
(Superseded to 100-7758)

$19.99

$

Usually ships in 3-6 days

0

27

Toro 100-1396

SHIM-BROWN (.010)
(Superseded to 112-7031)

$42.99

$

Usually ships in 3-6 days

0

28

Toro 100-1397

SHIM-YELLOW (.020IN)

$

$

Not available
