30569 - Toro 62" Guardian Recycler Lawn Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CARRIER FRAME ASSEMBLY Parts Diagram

62" Guardian Recycler Lawn Walk-Behind Mower

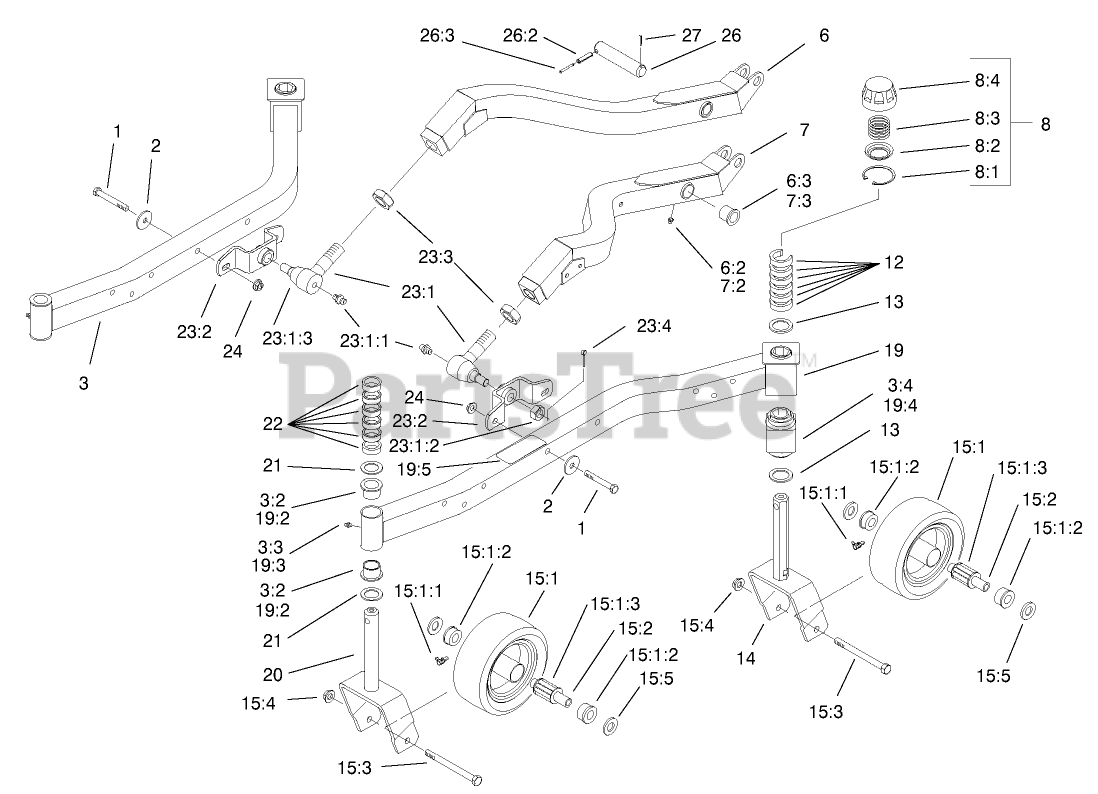

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 324-12

SCREW-HH
(Superseded to 3241-7)

$3.99

$

In Stock, only 3 left!

0

2

Toro 66-6480

WASHER

$2.49

$

Usually ships in 3-6 days

0

3

Toro 92-5623

RH CASTOR ARM ASM

$918.99

$

Usually ships in 3-6 days

0

3:2

Toro 94-1291

BUSHING

$12.99

$

In Stock, Qty 15

0

3:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

3:4

Toro 93-8471

BUSHING-RUBBER, SQUARE

$119.99

$

In Stock, only 3 left!

0

6

Toro 99-1254

RH LIFT ARM ASM

$1202.99

$

Usually ships in 3-6 days

0

6:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

6:3

Toro 256-268

BUSHING

$23.99

$

Usually ships in 3-6 days

0

7

Toro 99-1257

LH LIFT ARM ASM

$1202.99

$

Usually ships in 3-6 days

0

7:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7:3

Toro 256-268

BUSHING

$23.99

$

Usually ships in 3-6 days

0

8

Toro 92-8862

HOC CAP ASM

$81.99

$

Usually ships in 3-6 days

0

8:1

Toro 92-5581

RING-RETAINING

$3.49

$

In Stock, only 2 left!

0

8:2

Toro 92-5583

WASHER-CAP

$9.99

$

In Stock, only 2 left!

0

8:3

Toro 92-5584

SPRING-COMPRESSION

$17.99

$

In Stock, only 2 left!

0

8:4

Toro 92-8861

CAP-HOC

$51.99

$

In Stock, only 2 left!

0

12

Toro 92-8866

SPACER

$10.99

$

In Stock, Qty 8

0

13

Toro 92-1765

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

14

Toro 92-5578-01

FORK-CASTOR, REAR ASM

$191.99

$

Usually ships in 3-6 days

0

15:1

Toro 85-5760

8-INCH CASTOR WHEEL ASM

$151.99

$

In Stock, only 2 left!

0

15:1:1

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

15:1:2

Toro 62-5580

BEARING-OUTSIDE

$7.99

$

In Stock, Qty 18

0

15:1:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 14

0

15:2

Toro 62-4340

SPANNER

$19.99

$

In Stock, only 2 left!

0

15:3

Toro 325-22

SCREW-HH

$8.99

$

In Stock, Qty 8

0

15:4

Toro 32128-23

NUT-HF

$2.49

$

In Stock, Qty 9

0

15:5

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

15

Toro 95-3076

WHEEL KIT-CASTOR

Note: Not illustrated

$689.99

$

In Stock, only 1 left!

0

19

Toro 92-5573

CASTOR ARM ASM-LH

$

$

Not available

19:2

Toro 94-1291

BUSHING

$12.99

$

In Stock, Qty 15

0

19:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

19:4

Toro 93-8471

BUSHING-RUBBER, SQUARE

$119.99

$

In Stock, only 3 left!

0

19:5

Toro 93-7826

DECAL-HOC

$17.99

$

Usually ships in 3-6 days

0

20

Toro 98-7068-01

CASTOR FORK ASM

$170.99

$

Usually ships in 3-6 days

0

21

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

22

Toro 63-0070

SPACER

$2.49

$

In Stock, Qty 10

0

23:1

Toro 86-8100

JOINT-BALL
(Superseded to 86-8100-01)

$177.99

$

Usually ships in 3-6 days

0

23:1:1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

23:1:2

Toro 32136-2

NUT-SHH

$4.99

$

Usually ships in 3-6 days

0

23:1:3

Toro 105-7835

Seal

$3.49

$

In Stock, only 1 left!

0

23:2

Toro 98-7944-01

BALLJOINT MOUNT ASM
(Superseded to 98-7944)

$182.99

$

Usually ships in 3-6 days

0

23:3

Toro 21-3000

NUT-HJ
(Superseded to 21-3000-01)

$47.99

$

Usually ships in 3-6 days

0

23:4

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 8

0

23

Balljoint ASM

Note: Not serviced separately

$

$

Not available

24

Toro 32128-42

NUT-HF

$1.49

$

In Stock, only 3 left!

0

26

Toro 98-2330

PIVOT PIN ASM

$80.99

$

Usually ships in 3-6 days

0

26:2

Toro 32121-67

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

26:3

Toro 32121-61

PIN-ROLL

$1.49

$

In Stock, only 4 left!

0

27

Toro 3272-19

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0
