30575 - Toro 72" Side-Discharge Mower Deck (SN: 007000001 - 007999999) (1987) CUTTING UNIT MODEL NO. 30568 Parts Diagram

72" Side-Discharge Mower Deck

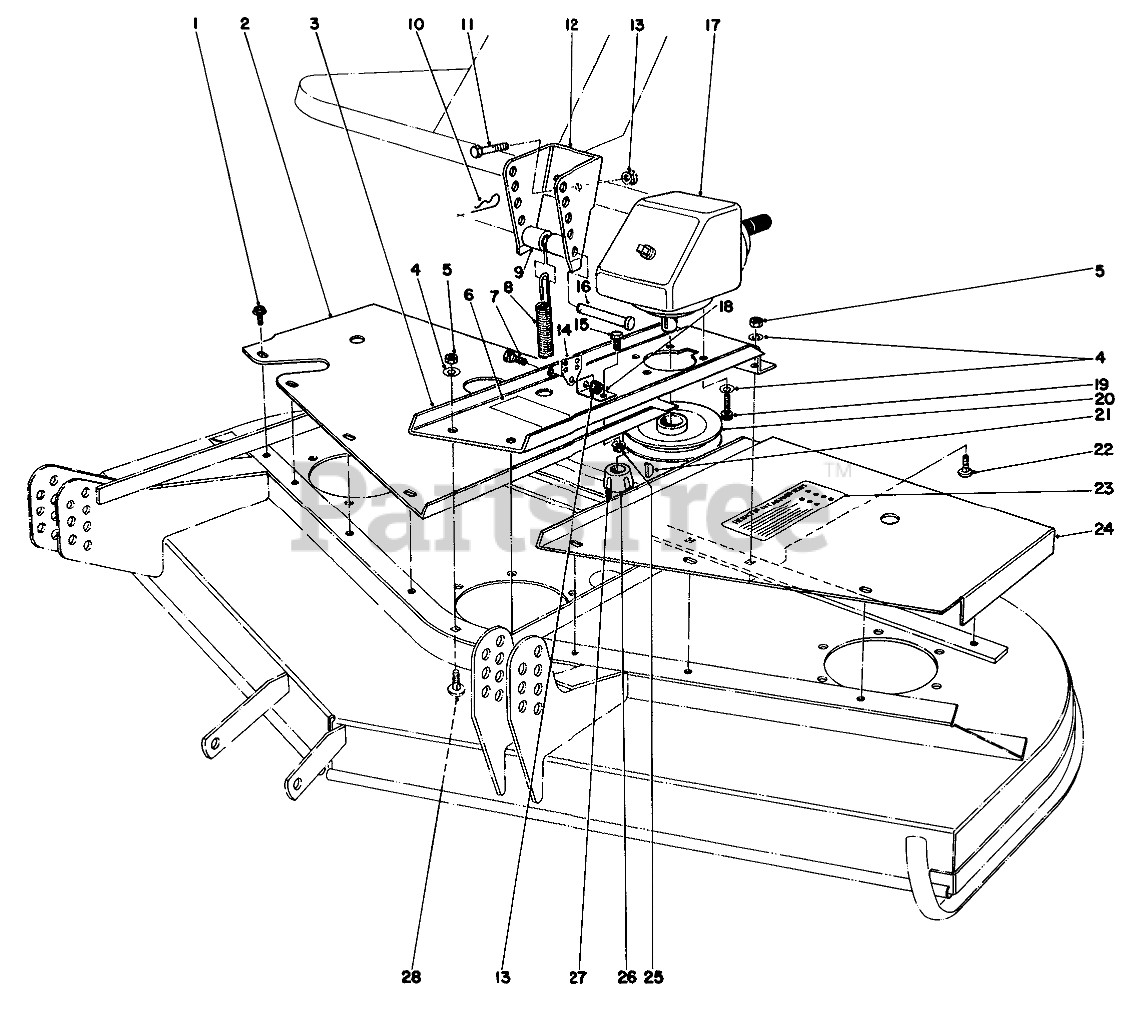

CUTTING UNIT MODEL NO. 30568 Parts Diagram

  • Title

1

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

2

Toro 40-0410

RH COVER WA R

$194.99

$

Usually ships in 3-6 days

0

3

Toro 40-0360

Base-Bear Box

$

$

Not available

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 14

0

6

Toro 44-6470

Decal-Caution
(Superseded to 55-4300)

$13.99

$

Usually ships in 3-6 days

0

7

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 46-3200

Spring-Extension
(Superseded to 46-3200-01)

$94.99

$

Usually ships in 3-6 days

0

9

Toro 40-0300

SPACER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 46-2620

SPRING BRACKET R

$101.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 46-3190

SPRING END R

$

$

Not available

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 9

0

17

Toro 8-0909

GEAR BOX ASM

$

$

Not available

18

Toro 46-3590

EXTENSION BRKT R

$45.99

$

Usually ships in 3-6 days

0

19

Toro 3274-1

SCREW-HSH

$8.49

$

Usually ships in 3-6 days

0

20

Toro 27-6110

PULLEY WA BO

$

$

Not available

21

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

22

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

23

Toro 42-6860

DECAL

$

$

Not available

24

Toro 42-4660

LH COVER WA R

$192.99

$

Usually ships in 3-6 days

0

25

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Toro 27-6140

BUSHING-LOCK, TAPER

$58.99

$

Usually ships in 3-6 days

0

27

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 7

0

28

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 5

0
