30575 - Toro 72" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993)

72" Side-Discharge Mower Deck

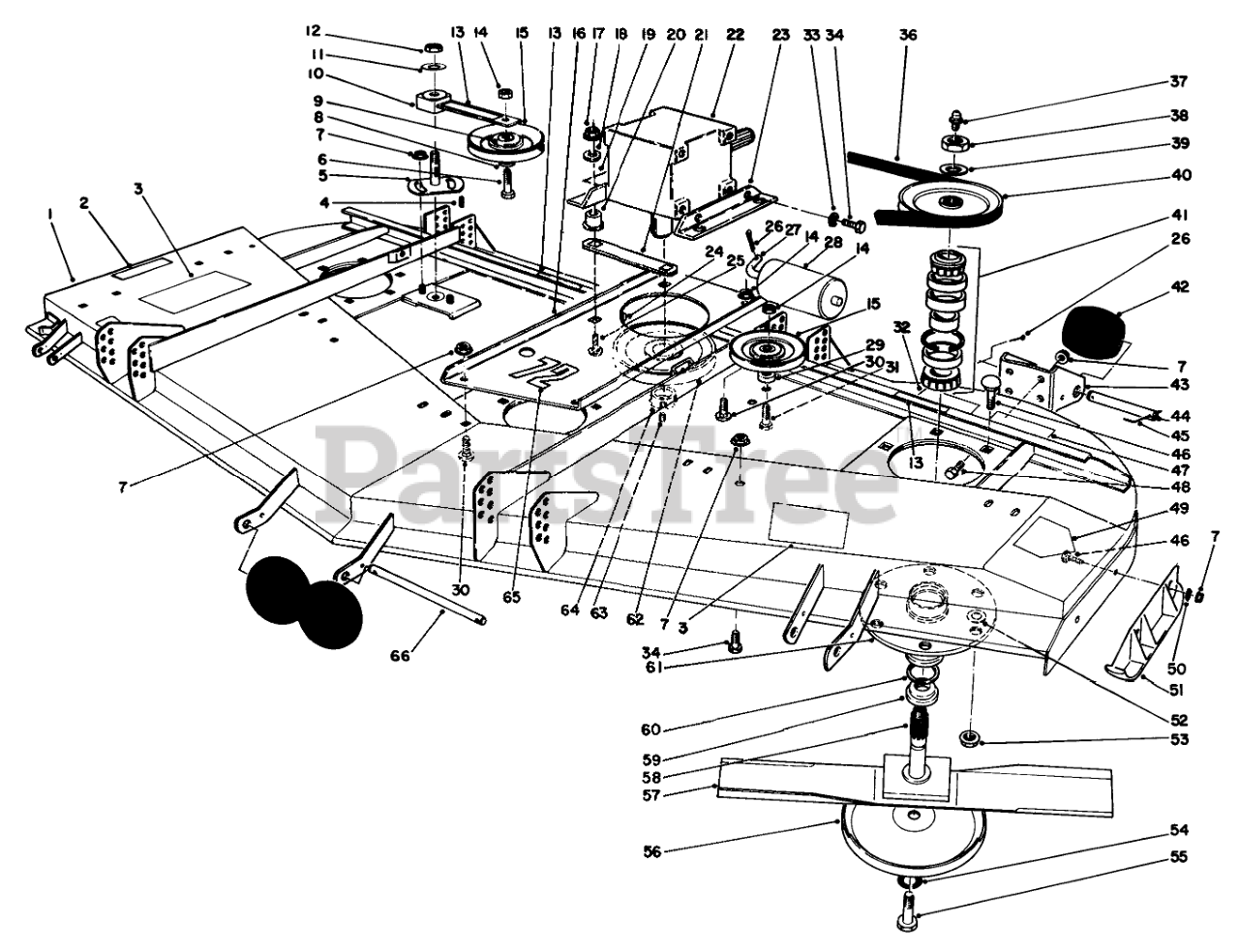

30575 - Toro 72" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) > Parts Diagrams (5) > DECK ASSEMBLY

  • Title
57-0300

1

Housing

Part# 57-0300 (Superseded to 92-8766)

OEM Warranty Repair Part for Toro

Not available

66-6380

2

DECAL-DANGER

Part# 66-6380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.48

66-1340

3

DECAL-DANGER, THROWN OBJECT

Part# 66-1340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.01

5-1077

4

KEY-SQUARE

Part# 5-1077

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.66

44-6300

5

PLATE-IDLER

Part# 44-6300

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $93.19

3211-8

6

SCREW-HH

Part# 3211-8

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.23

3290-357

7

NUT-HHF, WHIZ

Part# 3290-357

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.75

65-5950

8

BUSHING-PULLEY

Part# 65-5950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.23

7-0081

9

WASHER-FLAT

Part# 7-0081

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.99

27-8580

10

IDLER ARM ASM

Part# 27-8580 (Superseded to 99-1297)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $103.14

3256-27

11

WASHER-FLAT

Part# 3256-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

3296-33

12

NUT-LOCK, NI

Part# 3296-33

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.71

67-5360

13

DECAL-DANGER

Part# 67-5360

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.57

3296-5

14

NUT-HEX

Part# 3296-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.71

65-5940

15

PULLEY-IDLER

Part# 65-5940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $27.96

68-8530

16

Base-Gear Box

Part# 68-8530 (Superseded to 68-8530-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $136.65

32153-2

17

NUT-LOCK, SIDE

Part# 32153-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.59

63-8410

18

WASHER

Part# 63-8410

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.17

70-2560

19

DECAL-OIL

Part# 70-2560 (Superseded to 93-6697)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.86

63-9750

20

MOUNT

Part# 63-9750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $14.70

68-9890

21

Cover-Gear Box

Part# 68-9890 (Superseded to 68-9890-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.01

68-6810

22

Gearbox

Part# 68-6810 (Superseded to 108-1370)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $733.11

68-8560

23

Bracket-Gearbox

Part# 68-8560 (Superseded to 68-8560-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $39.52

3257-5

24

KEY-WOODRUFF

Part# 3257-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.03

3231-26

25

SCREW-CARR

Part# 3231-26

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.95

3272-11

26

PIN-COTTER

Part# 3272-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

40-0340

27

SHAFT-ROLLER, REAR

Part# 40-0340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $23.08

36-1740

28

ROLLER-DECK

Part# 36-1740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $31.20

44-6390

29

SPACER

Part# 44-6390

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $15.44

3231-27

30

SCREW-CARR

Part# 3231-27

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.43

3211-9

31

SCREW-HH

Part# 3211-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.87

68-8340

32

DECAL-TORQUE

Part# 68-8340

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $13.39

3253-21

33

WASHER-LOCK

Part# 3253-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.17

323-4

34

SCREW-HH

Part# 323-4

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

57-0240

36

V-BELT (72)

Part# 57-0240

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $68.09

302-2

37

FITTING-GREASE

Part# 302-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.64

32146-20

38

NUT-HEX

Part# 32146-20

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

7-4150

39

WASHER

Part# 7-4150

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.05

57-0560

40

PULLEY & HUB ASM, WELDED

Part# 57-0560

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.59

46-8530

41

BEARING ASM

Part# 46-8530

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $65.78

29-4820

42

ROLLER

Part# 29-4820

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.54

57-0580

43

Bracket-Roller

Part# 57-0580 (Superseded to 57-0580-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $49.20

57-0590

Bracket Roller Right Rear

Part# 57-0590 (Superseded to 57-0590-01)

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $54.23

57-0680

44

SHAFT-ROLLER

Part# 57-0680

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.94

57-0690

45

PIN-SPECIAL

Part# 57-0690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.43

3231-22

46

SCREW-CARR

Part# 3231-22

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.56

68-7270

47

DECAL - WARNING

Part# 68-7270

OEM Warranty Repair Part for Toro

Not available

323-7

48

SCREW-HH

Part# 323-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.29

43-8480

49

DECAL-DANGER

Part# 43-8480

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.39

3290-224

50

LOCKWASHER-PYRAMID

Part# 3290-224

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.60

57-0570

51

Skid

Part# 57-0570 (Superseded to 57-0570-01)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $220.68

3256-24

52

WASHER-FLAT

Part# 3256-24

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.51

32128-21

53

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.63

67-5770

54

WASHER

Part# 67-5770

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.35

44-2200

55

SCREW-BLADE

Part# 44-2200

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.41

72-9361

56

CUP-SCALP, ANTI

Part# 72-9361

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $30.94

57-0250

57

Blade

Part# 57-0250 (Superseded to 94-1861-03)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $28.83

27-0920

58

SHAFT

Part# 27-0920

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $122.92

27-0950

59

SPACER

Part# 27-0950

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $28.84

253-139

60

SEAL-OIL

Part# 253-139

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.92

61-4160

61

HOUSING-SPINDLE

Part# 61-4160

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $101.84

63-9900

62

PULLEY

Part# 63-9900

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $110.36

3245-9

63

SCREW-SET, HSH

Part# 3245-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.82

27-6140

64

Bushing-Taper Lock (Incl. Ref. #63)

Part# 27-6140

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $77.42

57-0280

65

DECAL

Part# 57-0280

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.80

40-6400

66

SHAFT-ROLLER

Part# 40-6400

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.69

57-0260

Assy.-Spindle Housing (Incl. Ref. #37-41 & 58-61)

Part# 57-0260

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $323.02
