30575x31A - Scotts 30" Rear-Engine Riding Mower (1997) Mower Housing Suspension Parts Diagram

30" Rear-Engine Riding Mower

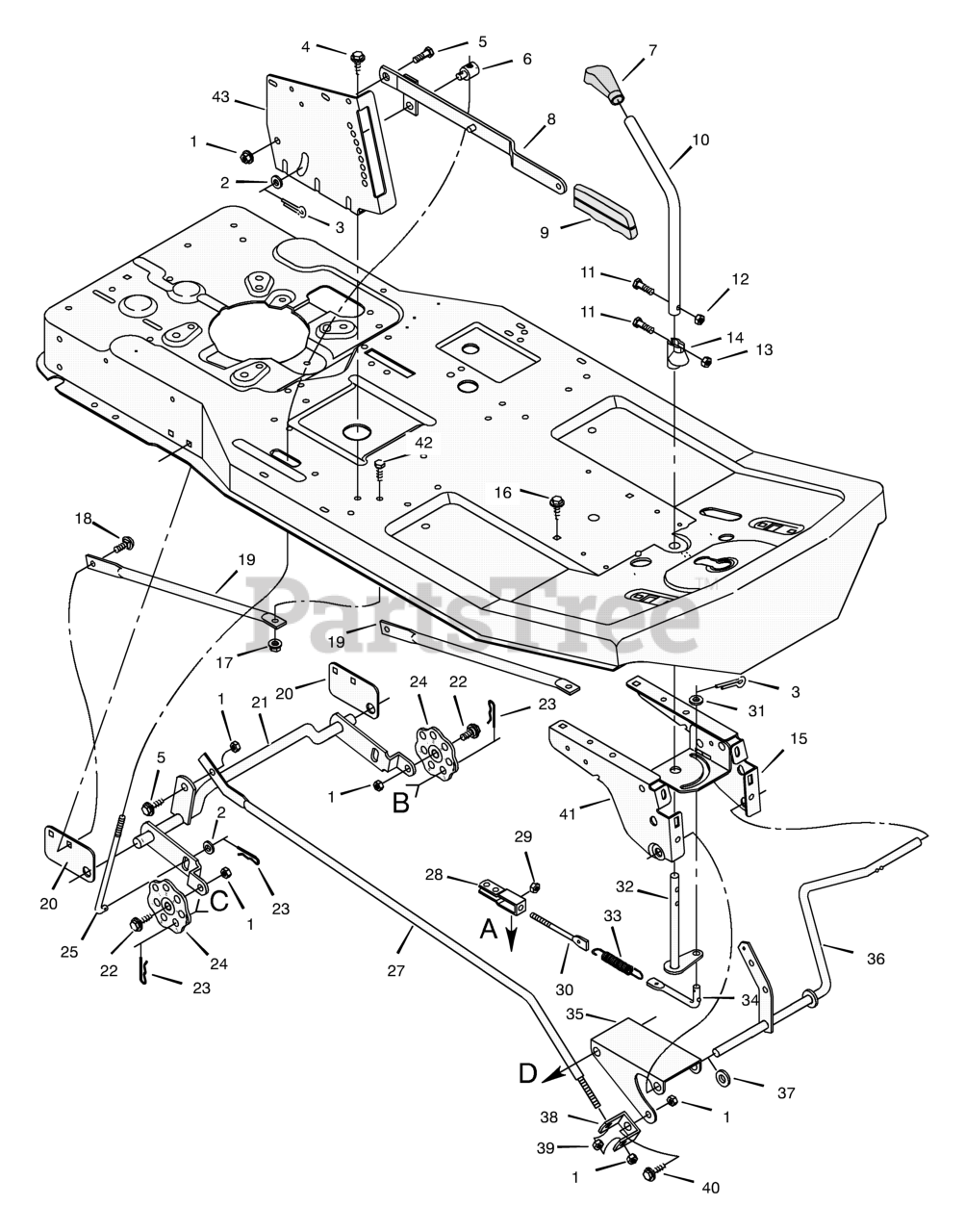

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

2

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

3

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

4

$

$

Not available

5

Murray 009X39MA

Bolt, Shoulder

$6.49

$

In Stock, Qty 10

0

6

Murray 021920ZMA

Nut, Adjusting

$17.99

$

Usually ships in 2-12 days

0

7

Murray 054786

Grip, Blade Control

$

$

Currently unavailable

8

Murray 56031E701

Lever Assembly, Lift

$

$

Currently unavailable

9

Murray 056161

Grip, Lift Lever

$

$

Currently unavailable

10

Murray 055927 Z

Attachment, Clutch

$

$

Currently unavailable

11

Murray 001X76MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

12

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

13

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

14

Murray 055853MA

Cam, Blade Control

$5.99

$

Usually ships in 2-12 days

0

15

Murray 56224E701

Plate, Left Suspension

$

$

Currently unavailable

16

$

$

Not available

17

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

18

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 3 left!

0

19

Murray 55326E701

Strut, Frame

$

$

Currently unavailable

20

Murray 55270E701

Plate, Mounting

$

$

Currently unavailable

21

Murray 55346E701

Rod Assembly, Rear Suspension

$

$

Currently unavailable

22

Murray 0009X4MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

23

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

24

Murray 55344E701

Plate, Adjusting

$

$

Currently unavailable

25

Murray 24839E701

Rod, Lifter

$

$

Currently unavailable

27

Murray 55957E701

Rod, Suspension

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Murray 0015X2MA

Nut, Hex

$3.99

$

In Stock, only 1 left!

0

30

Murray 055271 Z

Link, Blade Drive

$

$

Currently unavailable

31

$8.49

$

Usually ships in 2-12 days

0

32

Murray 55930E701

Rod and Arm Assembly

$

$

Currently unavailable

33

Murray 165X67MA

Spring, Extension

$23.99

$

Usually ships in 2-12 days

0

34

Murray 55179E701

Link, Front Deck

$

$

Currently unavailable

35

Murray 55139E701

Bracket, Front Suspension

$

$

Currently unavailable

36

Murray 56511E701

Lever, Pedal

$

$

Currently unavailable

37

Murray 17X122

Washer

$6.49

$

Usually ships in 2-12 days

0

38

Murray 055298

Clevis

$18.99

$

Usually ships in 2-12 days

0

39

Murray 015X73

Locknut, Hex

$3.99

$

In Stock, Qty 9

0

40

Murray 009X17MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

41

Murray 56023E701

Plate, Right Suspension

$43.99

$

Usually ships in 2-12 days

0

42

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

43

Murray 56595E701

Plate, Index

$

$

Currently unavailable
