30575x8A - Murray 30" Rear-Engine Riding Mower (1996) Steering Parts Diagram

30" Rear-Engine Riding Mower

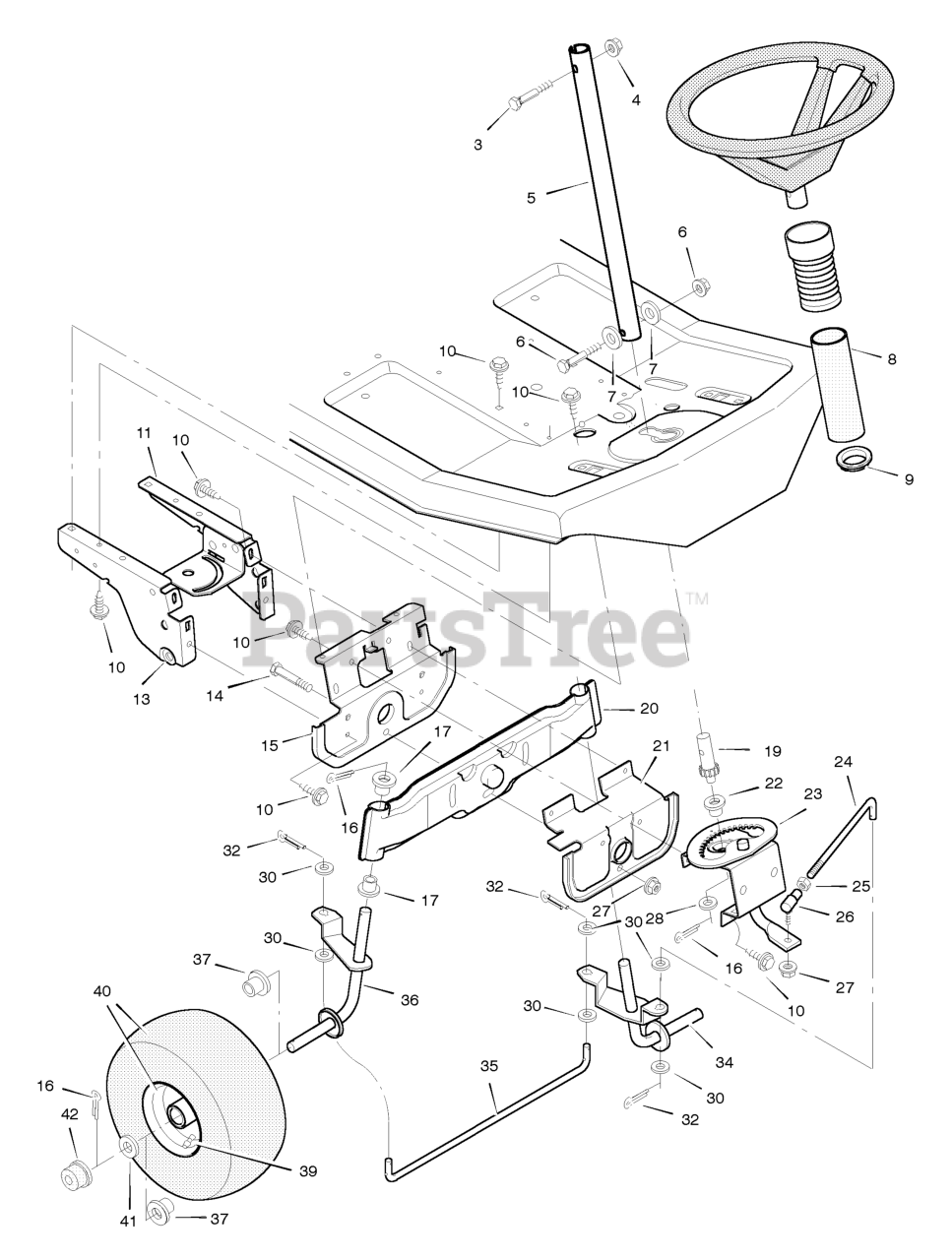

Steering Parts Diagram

  • Title
1

Murray 054801

Steering Wheel

$

$

Currently unavailable

2

Murray 054789MA

Bellows

$9.99

$

Usually ships in 2-12 days

0

3

Murray 01X102

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

4

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 19

0

5

Murray 91444C

Post, Steering

$59.99

$

Usually ships in 2-12 days

0

6

Murray 015X88MA

Nut, Hex
(Superseded to 704067)

$3.99

$

In Stock, Qty 19

0

7

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 054788

Cover, Steering Post

$

$

Currently unavailable

9

Murray 055004MA

Bearing

$4.49

$

Usually ships in 2-12 days

0

10

$4.99

$

In Stock, Qty 20+

0

11

Murray 56224E701

Plate, Left Suspension

$

$

Currently unavailable

13

Murray 56023E701

Plate, Right Suspension

$43.99

$

Usually ships in 2-12 days

0

14

Murray 001X69

Bolt, Hex

$

$

Currently unavailable

15

Murray 56231E701

Support, Front Axle

$

$

Currently unavailable

16

Murray 030X49MA

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

17

Murray 055003MA

Bearing, Spindle

$4.99

$

Usually ships in 2-12 days

0

19

Murray 056057MA

Gear, Pinion

$100.99

$

In Stock, only 1 left!

0

20

Murray 56223E701

Axle Assembly, Front

$22.99

$

Usually ships in 2-12 days

0

21

Murray 56230E701

Hanger Assembly, Front Axle

$

$

Currently unavailable

22

Murray 055168MA

Bearing

$

$

Not available

23

Murray 56236E701

Sector Assembly

$

$

Not available

24

Murray 56625E701

Rod, Drag Link

$

$

Currently unavailable

25

Murray 021031MA

Ball Joint, Steering

$18.99

$

Usually ships in 2-12 days

0

26

Murray 015X61MA

Nut, Hex

$9.49

$

Usually ships in 2-12 days

0

27

Murray 015X87

Locknut, Flange

$4.49

$

In Stock, only 1 left!

0

28

Murray 017X87

Washer

$13.99

$

Usually ships in 2-12 days

0

30

Murray 017X53MA

Washer
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

32

Murray 030X20MA

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

34

Murray 55039E701

Spindle Assembly, Left

$

$

Currently unavailable

35

Murray 55026E701

Rod, Tie

$

$

Currently unavailable

36

Murray 55038E701

Spindle Assembly, Right

$

$

Currently unavailable

37

Murray 056105MA

Bearing, Wheel

Note: (Included with Ref. No. 40)

$8.99

$

In Stock, only 2 left!

0

38

$67.99

$

Usually ships in 2-12 days

0

39

Murray 024373MA

Valve Stem

Note: (Included with Ref. No. 40)

$

$

Not available

40

Murray 92303601

Wheel & Tire Assembly

$140.99

$

Usually ships in 2-12 days

0

41

$6.99

$

Usually ships in 2-12 days

0

42

Murray 024582MA

Cap, Hub

Note: (Optional)

$7.99

$

Usually ships in 2-12 days

0
