30576x10B - Briggs & Stratton 30" Rear-Engine Riding Mower (1997) Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 1) Parts Diagram

30" Rear-Engine Riding Mower

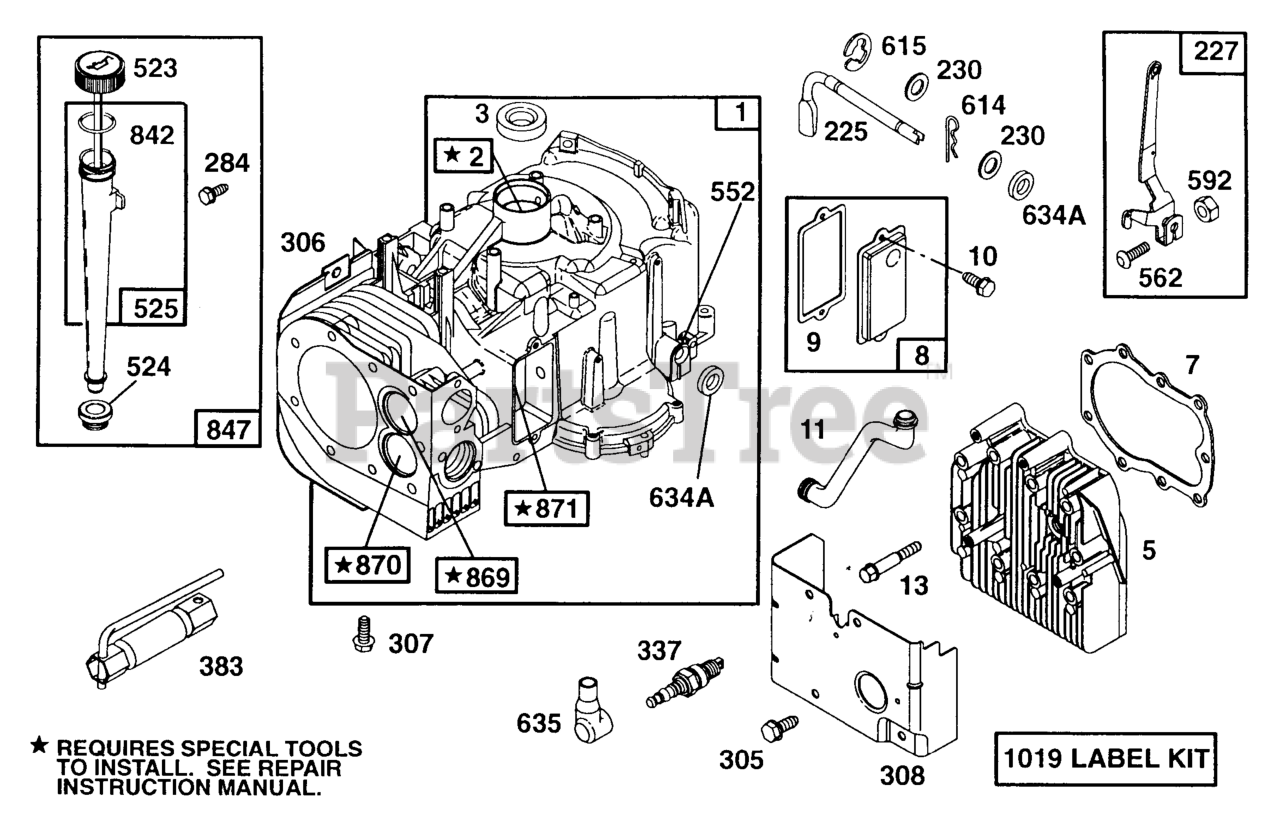

Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 1) Parts Diagram

  • Title

1

Murray 496414

Cylinder Assembly
(Superseded to 496413)

$344.99

$

Usually ships in 2-12 days

0

2

Murray 399265

Bearing-Cylinder
(Superseded to 797673)

$18.99

$

In Stock, only 3 left!

0

3

Murray 391086

Seal-Oil
(Superseded to 391086S)

Note: (Included in Gasket Set-Part No. 494241.)

$6.49

$

In Stock, Qty 20+

0

5

Murray 494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

7

Murray 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: (Included in Gasket Set-Part No. 494241.)

$9.49

$

In Stock, Qty 20+

0

8

Murray 495735

Breather Assembly

$63.99

$

In Stock, only 1 left!

0

9

Murray 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: (Included in Gasket Set-Part No. 494241.)

$4.49

$

In Stock, Qty 20+

0

10

Murray 94621

Screw - Sem
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Murray 281246

Tube - Breather
(Superseded to 691328)

$15.99

$

In Stock, only 1 left!

0

13

Murray 94622MA

Screw - Cylinder Head

$4.49

$

Usually ships in 2-12 days

0

225

Crank-Governor

$

$

Not available

227

Murray 493935

Lever Assy.-Governor
(Superseded to 691374)

$26.99

$

In Stock, Qty 6

0

230

Murray 94742

Washer - Governor Lever
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

305

Murray 94786

Screw - Hex. Head
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

306

Murray 224545

Shield-Cylinder
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Murray 94623

Screw - Sem
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

308

Murray 491490

Cover-Cylinder Head
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

337

Murray 802592

Plug-Spark
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Murray 89838

Wrench-Spark Plug
(Superseded to 89838S)

$6.49

$

In Stock, Qty 5

0

523

Murray 495229

Cap-Oil Filler
(Superseded to 692013)

$25.99

$

Usually ships in 2-12 days

0

524

Murray 68838

Seal-Filler Tube
(Superseded to 281370S)

Note: (Included in Gasket Set-Part No. 494241.)

$8.49

$

In Stock, Qty 20+

0

525

Murray 496068

Tube - Oil Filler
(Superseded to 690841)

$22.99

$

Usually ships in 2-12 days

0

552

Murray 231597

Bushing-Gov. Crank
(Superseded to 491986)

$

$

Not available

562

Murray 92613

Bolt-Governor Lever

$

$

Not available

592

Murray 231082

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

614

Murray 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

UNKNOWN

$

$

Not available

634A

Murray 491323

Seal-Governor
(Superseded to 692407)

Note: (Included in Gasket Set-Part No. 494241.)

$7.99

$

In Stock, Qty 11

0

635

Murray 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 16

0

842

Murray 270920

Seal-Oil Filler Cap
(Superseded to 691870)

Note: (Included in Gasket Set-Part No. 494241.)

$4.49

$

In Stock, only 1 left!

0

847

Murray 496367

Fill Group-Oil

$30.99

$

Usually ships in 2-12 days

0

869

Murray 261463

Seat-Intake Valve
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Murray 213316

Seat-Exhaust Valve
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Murray 261961

Guide-Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

--

Murray 231218

Guide Intake Valve (Brass)

$14.99

$

In Stock, only 2 left!

0

1019

Murray 491254

Label Kit

$27.99

$

Usually ships in 2-12 days

0
