30576x10B - Briggs & Stratton 30" Rear-Engine Riding Mower (1997) Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 2) Parts Diagram

30" Rear-Engine Riding Mower

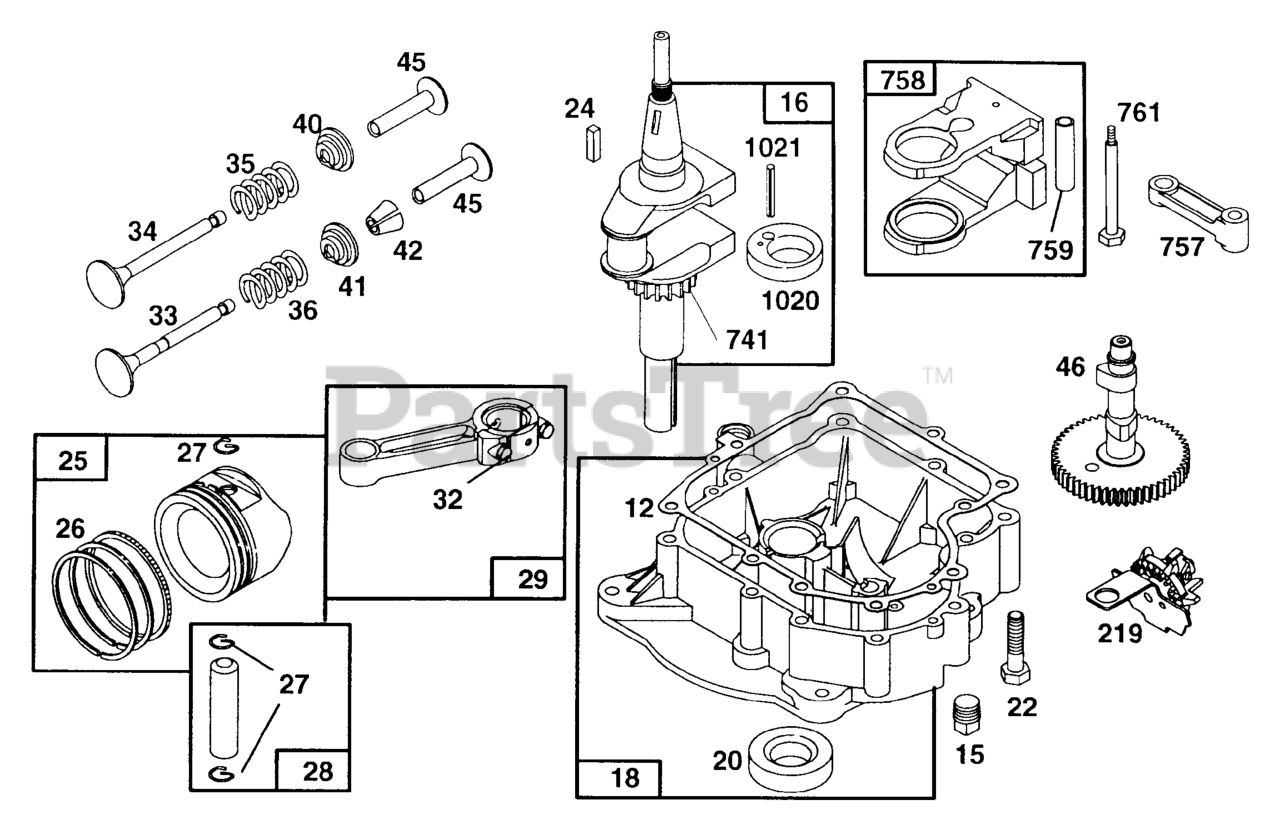

Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 2) Parts Diagram

  • Title

12

Murray 271916

Gasket-Crankcase Cover (1/64" Thick)
(Superseded to 692226)

Note: (Included in Gasket Set-Part No. 494241.)

$6.99

$

In Stock, only 2 left!

0

--

Murray 271997

Gasket-Crankcase Cover (.005" Thick)
(Superseded to 692406)

Note: (Included in Gasket Set-Part No. 494241.)

$9.49

$

In Stock, only 1 left!

0

--

Murray 271996

Gasket-Crankcase Cover (.009" Thick)
(Superseded to 692405)

Note: (Included in Gasket Set-Part No. 494241.)

$6.49

$

In Stock, only 1 left!

0

15

Murray 94239

Plug-Oil Drain
(Superseded to 690946)

$5.99

$

In Stock, Qty 17

0

16

Murray 495162

Crankshaft *
(Superseded to 693944)

$246.99

$

Usually ships in 2-12 days

0

18

Murray 494238

Base-Engine

$

$

Not available

20

Murray 291675

Seal-Oil
(Superseded to 291675S)

Note: (Included in Gasket Set-Part No. 494241.)

$6.99

$

In Stock, Qty 20+

0

22

Murray 94624

Screw - Base Mtg. Sem
(Superseded to 692125)

$4.99

$

In Stock, only 2 left!

0

24

Murray 222698

Key-Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Murray 391285

Piston Assembly (Standard)
(Superseded to 499956)

$

$

Not available

--

Murray 391287

Piston Assy. (.010" O.S.)

$

$

Not available

--

Murray 391288

Piston Assy. (.020" O.S.)
(Superseded to 499958)

$158.99

$

In Stock, only 1 left!

0

--

Murray 391289

Piston Assy. (.030" O.S.)

$

$

Not available

26

Murray 391780

Ring Set (Standard)
(Superseded to 499996)

$53.99

$

In Stock, only 3 left!

0

--

Murray 392331

Ring Set (Chrome Std.)

$37.99

$

Usually ships in 2-12 days

0

--

Murray 391781

Ring Set (.010" O.S.)

$

$

Not available

--

Murray 391782

Ring Set (.020" O.S.)
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

--

Murray 391783

Ring Set (.030" O.S.)

$

$

Not available

27

Murray 260924

Lock-Piston Pin
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Murray 299691

Pin-Piston (Standard)

$17.99

$

In Stock, only 1 left!

0

--

Murray 391286

Pin-Piston (.005" O.S.)

$14.99

$

Usually ships in 2-12 days

0

29

Murray 490348

Rod-Connecting

$50.99

$

In Stock, only 2 left!

0

--

Murray 490469

Rod-Conn. (.020" Undersize)
(Superseded to 495490)

$30.99

$

Usually ships in 2-12 days

0

32

Murray 094671

Screw - Conn. Rod

$

$

Currently unavailable

33

Murray 262246

Valve - Exhaust
(Superseded to 262246S)

$27.99

$

Usually ships in 2-12 days

0

34

Murray 262247

Valve - Intake
(Superseded to 262247S)

$30.99

$

Usually ships in 2-12 days

0

35

Murray 65906

Spring - Valve
(Superseded to 691605)

$6.99

$

In Stock, Qty 7

0

36

Murray 26828

Spring - Valve
(Superseded to 691597)

$10.99

$

In Stock, only 1 left!

0

40

Murray 221596

Retainer-Intake Valve
(Superseded to 690656)

$

$

Not available

41

Murray 292260

Rotocoil-Exhaust Valve
(Superseded to 691939)

$27.99

$

In Stock, only 1 left!

0

42

Murray 93630

Retainer-Rotocoil
(Superseded to 494553)

$7.99

$

In Stock, only 1 left!

0

45

Murray 262248

Tappet-Valve
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Murray 212897

Gear-Cam
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

219

Murray 490815

Gear-Gov.
(Superseded to 691968)

$37.99

$

In Stock, Qty 10

0

741

Murray 262932

Gear-Timing
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Murray 213998

Link-Counterweight
(Superseded to 691714)

$26.99

$

Usually ships in 2-12 days

0

758

Murray 399891

Counterweight Assy.
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Murray 298909

Pin-Piston

$8.99

$

In Stock, only 4 left!

0

761

Murray 094593

Screw - Counterweight

$

$

Currently unavailable

1020

Murray 262243

Eccentric

$36.99

$

Usually ships in 2-12 days

0

1021

Murray 094160

Pin-Eccentric

$

$

Not available
