30576x10B - Briggs & Stratton 30" Rear-Engine Riding Mower (1997) Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 6) Parts Diagram

30" Rear-Engine Riding Mower

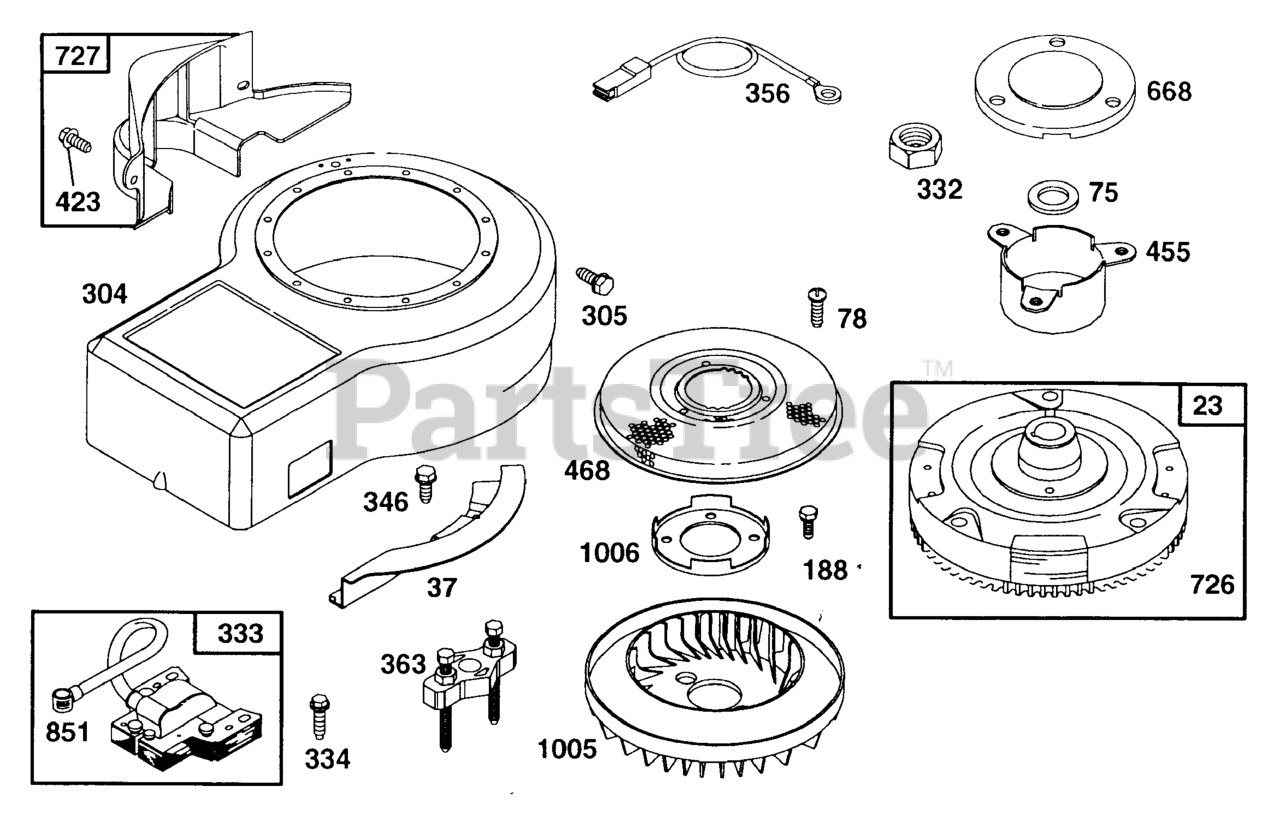

Briggs & Stratton Engine 11hp Model: 28c707-0110-0 (part 6) Parts Diagram

  • Title

23

Murray 492326

Flywheel
(Superseded to 693557)

$

$

Not available

37

Murray 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

75

Murray 224061

Washer - Spring
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

78

Murray 94626

Screw - Sem
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

188

Murray 94627

Screw - Sem
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

304

Murray 496319

Housing-Blower
(Superseded to 690846)

$108.99

$

Usually ships in 2-12 days

0

305

Murray 49619

Screw - Sem

$

$

Currently unavailable

332

Murray 092284MA

Nut-Hex.

$

$

Not available

333

Murray 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Murray 93881

Screw - Sem
(Superseded to 695546)

$17.99

$

Usually ships in 2-12 days

0

346

Murray 93705

Screw - Hex. Head
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

356

Murray 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

363

Murray 19203

PULLER, Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Murray 7601092MA

TANK, Fuel 1.4 Gal.

$78.99

$

In Stock, only 2 left!

0

455

Murray 222561

Cup-Screen Mounting
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

468

Murray 222562

Screen-Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

668

Murray 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Murray 392134

Gear-Ring
(Superseded to 696537)

Note: (Includes Mounting Hardware)

$50.99

$

In Stock, only 1 left!

0

727

Murray 490324

Cover-Starter

$26.99

$

Usually ships in 2-12 days

0

851

Murray 221798

Terminal-Ignition Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1005

Murray 280687

Fan-Flywheel
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Murray 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0
