30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) CARBURETOR AND FUEL PUMP Parts Diagram

ProLine Rear-Engine Riding Mower

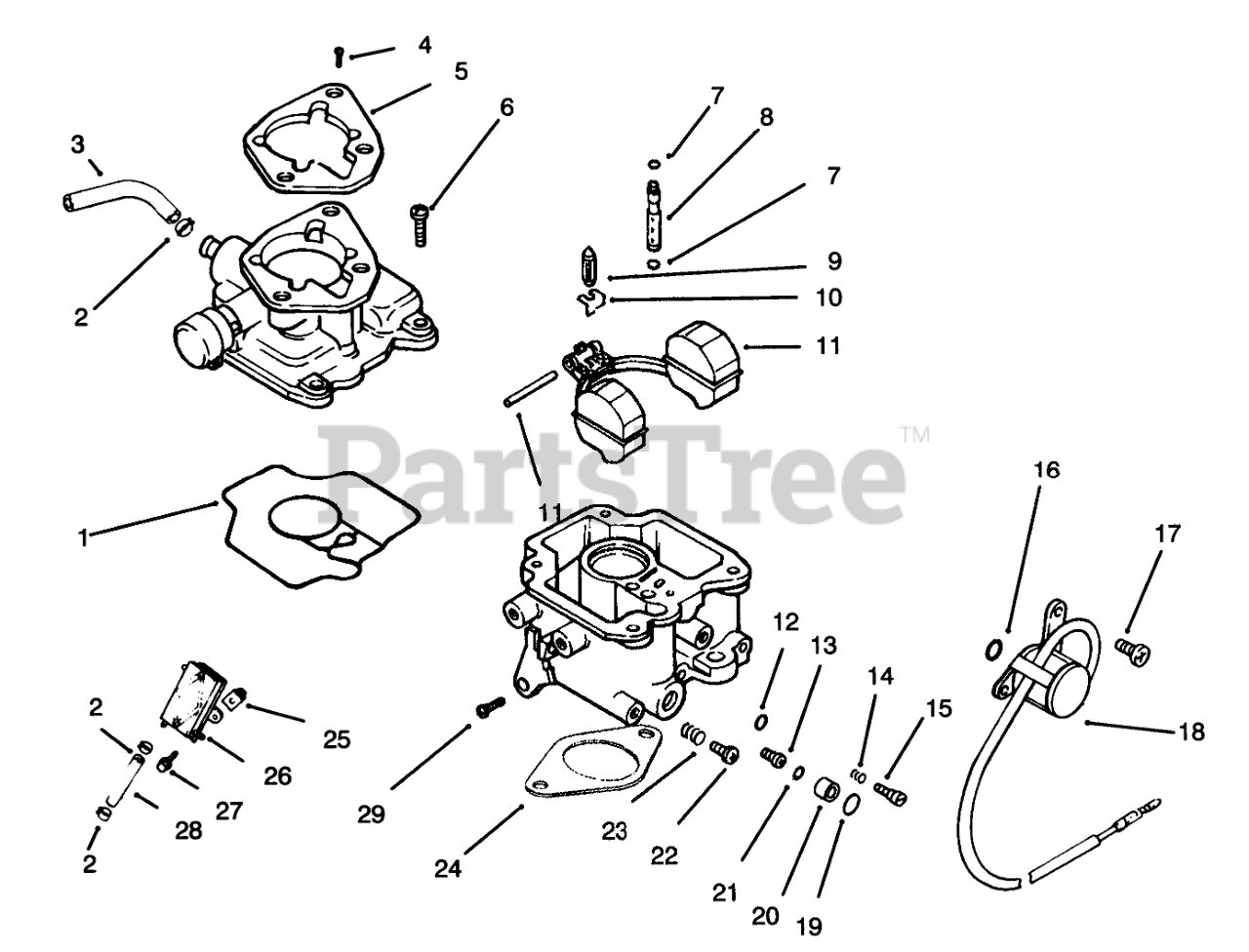

CARBURETOR AND FUEL PUMP Parts Diagram

  • Title

1

Toro 24_041_09

Gasket-Carburetor Body

$

$

Currently unavailable

Toro 24_853_04

Kit-Carburetor w/Gasket (Incl. Ref. #1-15,19-23 & 29)

Note: Not illustrated

$

$

Currently unavailable

2

Toro X-426-9

Clamp

$

$

Currently unavailable

3

Toro 25_353_10

Line-Fuel

$

$

Currently unavailable

4

Toro M-065103C

Screw

$

$

Currently unavailable

5

Toro 24_041_06

Gasket-Air Cleaner

$

$

Currently unavailable

6

Toro 24_086_09

Screw

$

$

Currently unavailable

7

Toro 24_153_02

"O"Ring

$

$

Currently unavailable

8

Toro 24_337_01

Jet-Slow

$

$

Currently unavailable

9

Toro 24_462_01

Valve-Inlet Needle

$

$

Currently unavailable

10

Toro 24_154_01

Clip-Inlet Needle Valve

$

$

Currently unavailable

11

Toro 24_757_02

Kit-Float Repair

$

$

Currently unavailable

12

Toro 24_153_03

"O"Ring

$

$

Currently unavailable

13

Toro 24_337_02

Jet-Main

$

$

Currently unavailable

14

Toro 24_089_11

Spring-Idle Adjust

$

$

Currently unavailable

15

Toro 24_368_01

Needle-Idle Adjust

$

$

Currently unavailable

16

Toro 24_153_04

"O"Ring

$

$

Currently unavailable

17

Toro 24_086_07

Screw

$

$

Currently unavailable

18

Toro 24_435_01

Solenoid

$

$

Currently unavailable

19

Toro 24_153_05

"O"Ring

$

$

Currently unavailable

20

Toro 24_521_01

Seat-Solenoid

$

$

Currently unavailable

21

Toro 24_153_06

"O"Ring

$

$

Currently unavailable

22

Toro 24_086_10

Screw-Idle Speed Adjust

$

$

Currently unavailable

23

Toro 24_089_10

Spring-Idle Speed Adjust

$

$

Currently unavailable

24

Toro 24_041_07

Gasket-Carburetor

$

$

Currently unavailable

25

Toro 24_100_01

Nut

$

$

Currently unavailable

26

Toro 24_393_04

Pump-Fuel

$

$

Currently unavailable

27

Toro 24_086_12

Screw

$

$

Currently unavailable

28

Toro 24_353_02

Line-Fuel 15-1/2"

$

$

Currently unavailable

29

Toro 24_086_05

Screw-Throttle Stop

$

$

Currently unavailable

Toro 24_041_07

Gasket-Carburetor

Note: Not illustrated

$

$

Currently unavailable

Toro 24_757_03

Kit-Carburetor Repair

Note: Not illustrated

$

$

Currently unavailable

Toro 24_757_01

Kit-Solenoid Assembly

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_01

Kit-High Altitude(1500 meters

Note: Not illustrated

$

$

Currently unavailable

Toro 24_755_02

Kit-High Altitude(3000 meters)

Note: Not illustrated

$

$

Currently unavailable
