30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 039000001 - 039999999) (1993) CRANKSHAFT, PISTON AND RINGS Parts Diagram

ProLine Rear-Engine Riding Mower

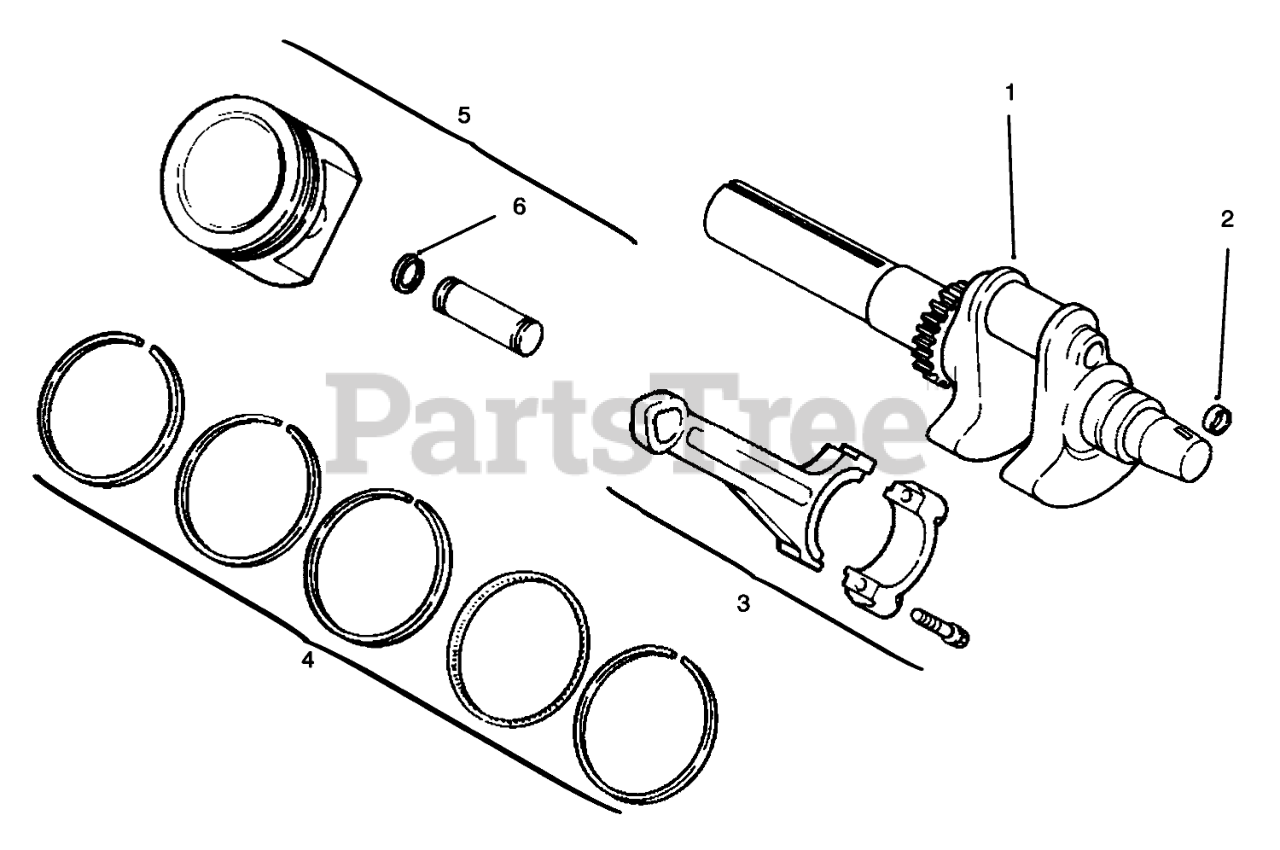

CRANKSHAFT, PISTON AND RINGS Parts Diagram

  • Title
1

Toro 24_014_32

Crankshaft

$

$

Currently unavailable

2

12_139_01

Plug

$

$

Not available

3

Toro 24_067_01

Rod-Connecting (Std)

$

$

Currently unavailable

Toro 24_067_02

Connecting Rod (.25)

Note: Not illustrated

$

$

Currently unavailable

4

Toro 24_108_01

Set-Ring (Std)

$

$

Currently unavailable

Toro 24_108_02

Ring Set (.25)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_108_03

Ring Set (.50)

Note: Not illustrated

$

$

Currently unavailable

5

Toro 24_874_01

Piston w/Ring Set (Std.) (Incl. Ref. # 4-6)

$

$

Currently unavailable

Toro 24_874_02

Piston w/Ring Set (.25)

Note: Not illustrated

$

$

Currently unavailable

Toro 24_874_03

Piston w/Ring Set (.50)

Note: Not illustrated

$

$

Currently unavailable

6

Toro 24_018_01

Retainer-Piston Pin

$

$

Currently unavailable
