30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) DIFFERENTIAL ASSEMBLY NO. 1310-001A Parts Diagram

ProLine Rear-Engine Riding Mower

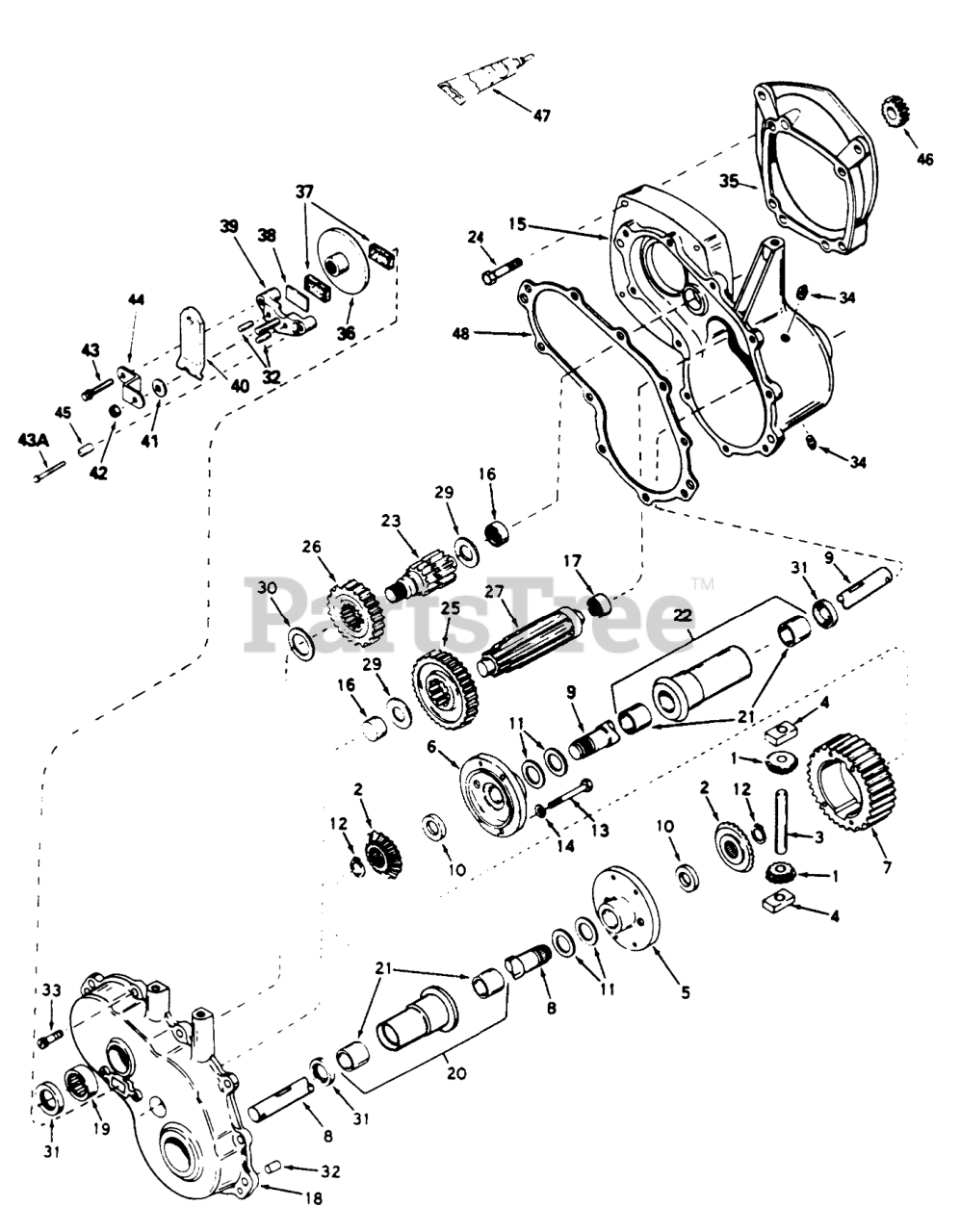

DIFFERENTIAL ASSEMBLY NO. 1310-001A Parts Diagram

  • Title

1

Toro 778197

Pinion-Bevel

$

$

Currently unavailable

2

Toro 778198

Gear-Bevel

$

$

Currently unavailable

3

Toro 786019

Pin-Drive

$

$

Currently unavailable

4

Toro 786027

Biock-Drive

$

$

Currently unavailable

5

Toro 774028A

Carrier-Differential

$

$

Currently unavailable

6

Toro 774029A

Carrier-Differential

$

$

Currently unavailable

7

Toro 778033A

Gear-Ring

$

$

Currently unavailable

8

Toro 774607

Axle 16-5/8"

$

$

Currently unavailable

9

Toro 774608

Axle-21-57/64"

$

$

Currently unavailable

10

Toro 780107

Washer

$

$

Currently unavailable

11

Toro 780042

Washer

$

$

Currently unavailable

12

Briggs & Stratton 792018

Ring-Snap

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 792020

Screw-Hex Hd.

$73.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 792006

Lockwasher

$28.99

$

In Stock, Qty 8

0

15

Toro 770080

Case Assembly(Incl Ref. #16, 17)

$

$

Currently unavailable

16

Toro 780013

Bearing

$

$

Currently unavailable

17

Toro 780088

Bearing-Needle

$

$

Currently unavailable

18

Toro 772085

Cover Assembly(Incl Ref. #16, 19)

$

$

Currently unavailable

19

Toro 780089

Bearing Needle

$

$

Currently unavailable

20

Toro 782041A

Housing Assembly-6-5/8-(Incl Ref. #21)

$

$

Currently unavailable

21

Toro 780054

Bushing

$

$

Currently unavailable

22

Toro 782042A

Housing Assembly-8-5/8-(Incl Ref. #21)

$

$

Currently unavailable

23

Toro 776245

Shaft-Brake

$

$

Currently unavailable

24

Toro 79-2120

Screw-Hex. Hd.

$

$

Currently unavailable

25

Toro 778036

Gear-Output

$

$

Currently unavailable

26

Toro 778037

Gear-Spur

$

$

Currently unavailable

27

Toro 776244

Shaft-Output

$

$

Currently unavailable

29

Toro 780001

Washer

$

$

Currently unavailable

30

Toro 780090

Washer

$

$

Currently unavailable

31

Toro 788008

Seal-Oil

$

$

Currently unavailable

32

Toro 786026

Dowel Pin

$

$

Currently unavailable

33

Briggs & Stratton 792046

Screw-Thread Forming

$1191.99

$

Usually ships in 2-12 days

0

34

Toro 792010

Plug

$

$

Currently unavailable

35

Toro 786112

Plate-Adapter

$

$

Currently unavailable

36

Toro 790027

Disc-Brake

$

$

Currently unavailable

37

Toro 790006

Brake Pad

$

$

Currently unavailable

38

Toro 790007

Brake Pad Plate

$

$

Currently unavailable

39

Briggs & Stratton 790025

Nozzle-Carburetor

$24.99

$

Usually ships in 2-12 days

0

40

Toro 790010

Lever-Brake

$

$

Currently unavailable

41

Toro 792076

Washer

$

$

Currently unavailable

42

Toro 792075

Locknut

$

$

Currently unavailable

43

Briggs & Stratton 792073

Ring Set (.020 O S)

$61.99

$

In Stock, Qty 7

0

43A

Toro 792085

Screw-Hex. Flange

$

$

Currently unavailable

44

Toro 786086

Bracket

$

$

Currently unavailable

45

Toro 786066

Spacer

$

$

Currently unavailable

46

Toro 778194

Gear-Spur 22T

$

$

Currently unavailable

47

Toro 510334

Gasket Eliminator

$

$

Currently unavailable

48

Toro 788044

Gasket

$

$

Currently unavailable
