30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059001299) (1995) ENGINE ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

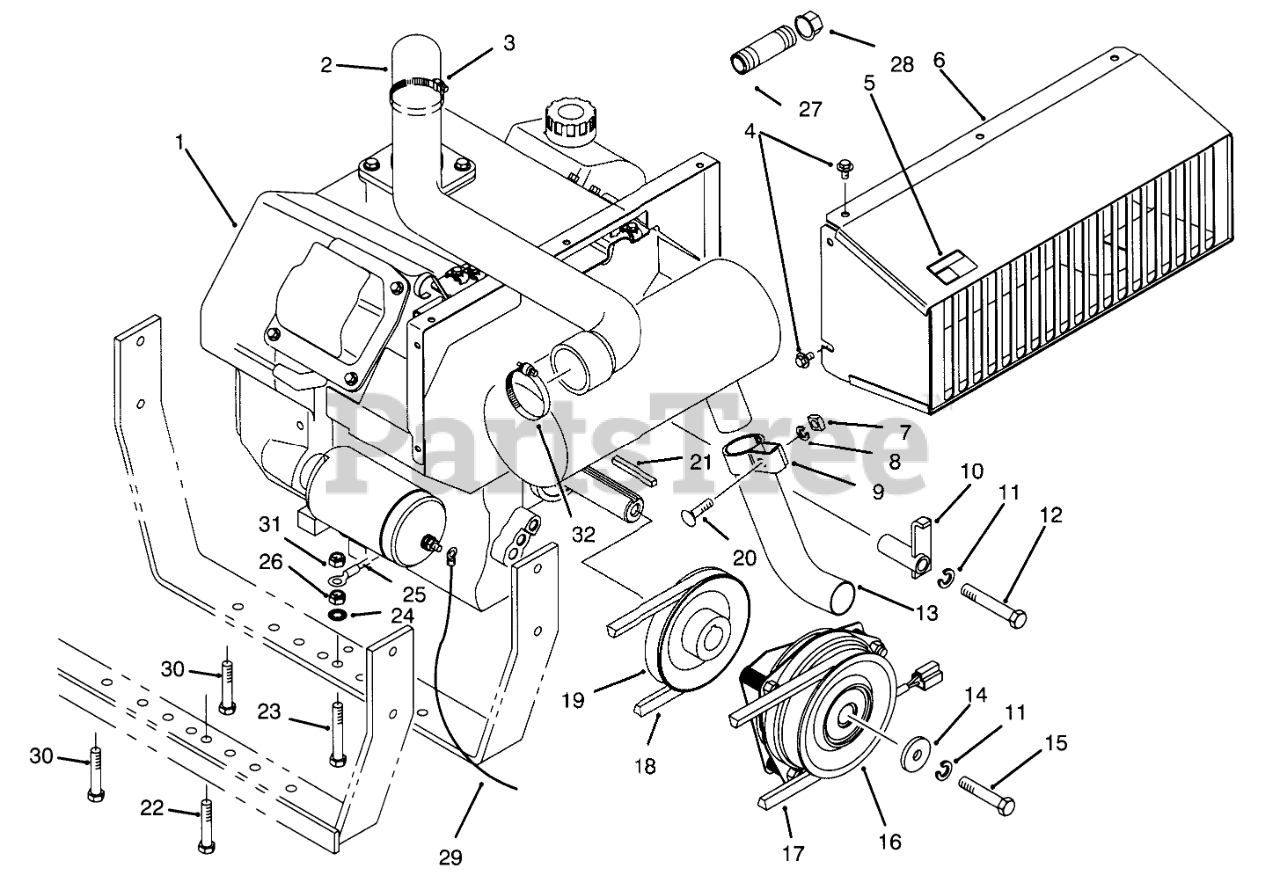

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-6275

Engine-Kohler 20 HP Model No. CH20QS
(Superseded to 94-1297)

$8920.99

$

Usually ships in 3-6 days

0

2

Toro 92-6265

CARB INTAKE HOSE

$133.99

$

Usually ships in 3-6 days

0

3

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

4

Toro 48-7610

SCREW
(Superseded to 33113-012)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 63-8440

DECAL-SURFACE, HOT

$

$

Not available

6

Toro 92-6260

Duct-Engine
(Superseded to 92-6260-03)

$

$

Not available

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

8

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

9

Toro 55-8660

Assembly-Clamp(Incl Ref. #7, 8, 20)

$

$

Not available

10

Toro 54-2160

Anchor Bracket
(Superseded to 54-2160-03)

$

$

Not available

11

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

13

Toro 54-2290

EXHAUST PIPE

$

$

Not available

14

Toro 44-8160

WASHER-CLUTCH

$

$

Not available

15

Toro 3212-24

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

16

Toro 54-0220

BRAKE CLUTCH ASM

$988.99

$

Usually ships in 3-6 days

0

17

Toro 54-1380

V-BELT, JACKSHAFT

$37.99

$

In Stock, only 1 left!

0

18

Toro 54-1390

V-BELT, TRACTION

$33.99

$

In Stock, only 1 left!

0

19

Toro 54-2330

ENGINE PULLEY

$133.99

$

Usually ships in 3-6 days

0

20

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Toro 5-0930

KEY

$14.99

$

Usually ships in 3-6 days

0

22

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

In Stock, only 3 left!

0

25

Toro 92-6287

WIRE ASM (NEGATIVE)

$

$

Not available

26

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

27

Toro 289-46

NIPPLE-PIPE

$

$

Not available

28

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

29

Toro 28-3894

POSITIVE WIRE ASM

$27.99

$

Usually ships in 3-6 days

0

30

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0
