30610 (120) - Toro ProLine Rear-Engine Riding Mower (SN: 059001300 - 059999999) (1995) Air Cleaner, Model No. 11-4659 Parts Diagram

ProLine Rear-Engine Riding Mower

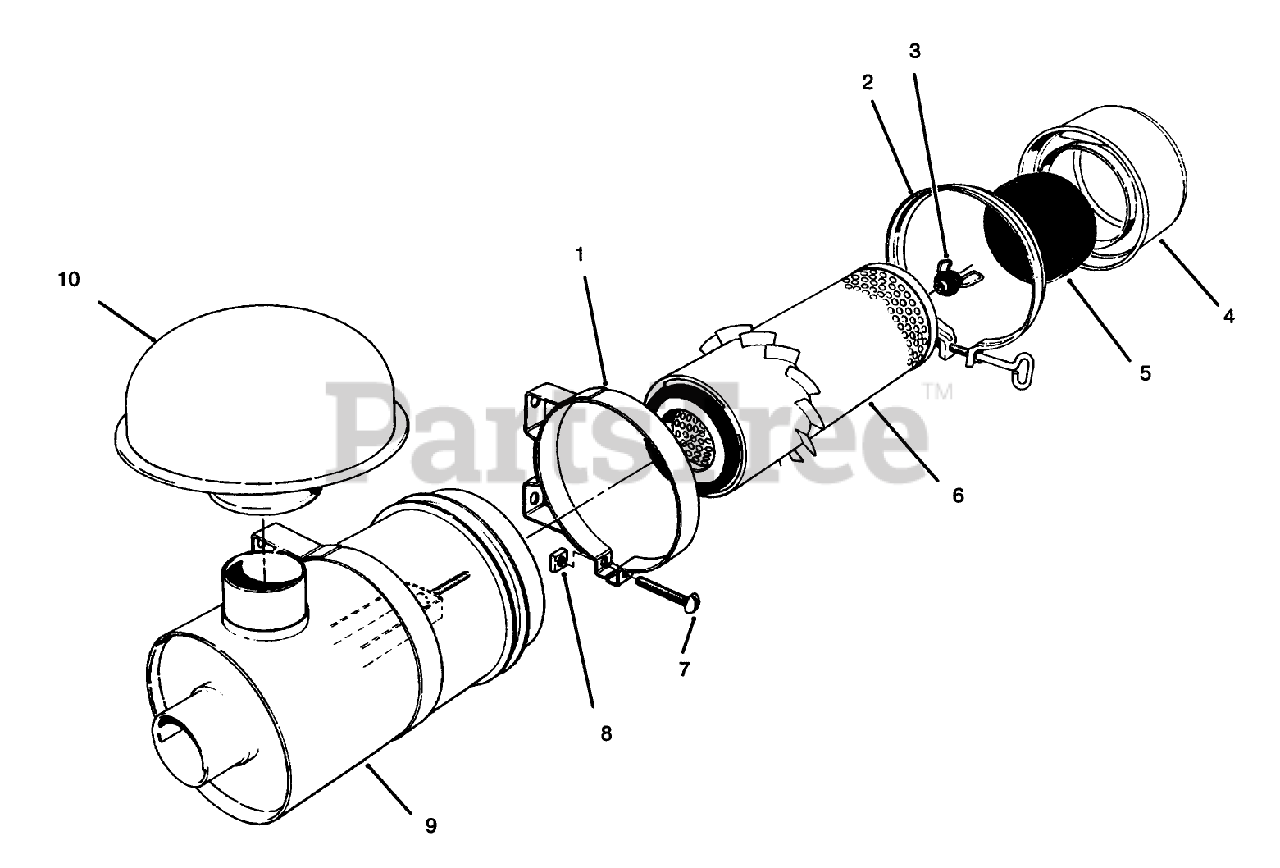

Air Cleaner, Model No. 11-4659 Parts Diagram

  • Title

1

Toro 33-1350

MOUNTING BAND ASM

$

$

Not available

2

Toro 33-1340

DISCONTINUED

$

$

Not available

3

Toro 33-1330

DISCONTINUED

$

$

Not available

4

Toro 33-1320

DISCONTINUED

$

$

Not available

5

Toro 33-1310

DISCONTINUED

$

$

Not available

6

Toro 33-1300

See Supercession: 108-3808
(Superseded to 108-3808)

$30.99

$

Usually ships in 3-6 days

0

7

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32107-11

NUT-SQUARE

$

$

Not available

9

Body Assembly

$

$

Not available

10

Toro 46-7510

HOOD-INLET, AIR

$117.99

$

Usually ships in 3-6 days

0
