30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 089000001 - 089999999) (1998) OIL PAN/LUBRICATION Parts Diagram

Groundsmaster Rear-Engine Riding Mower

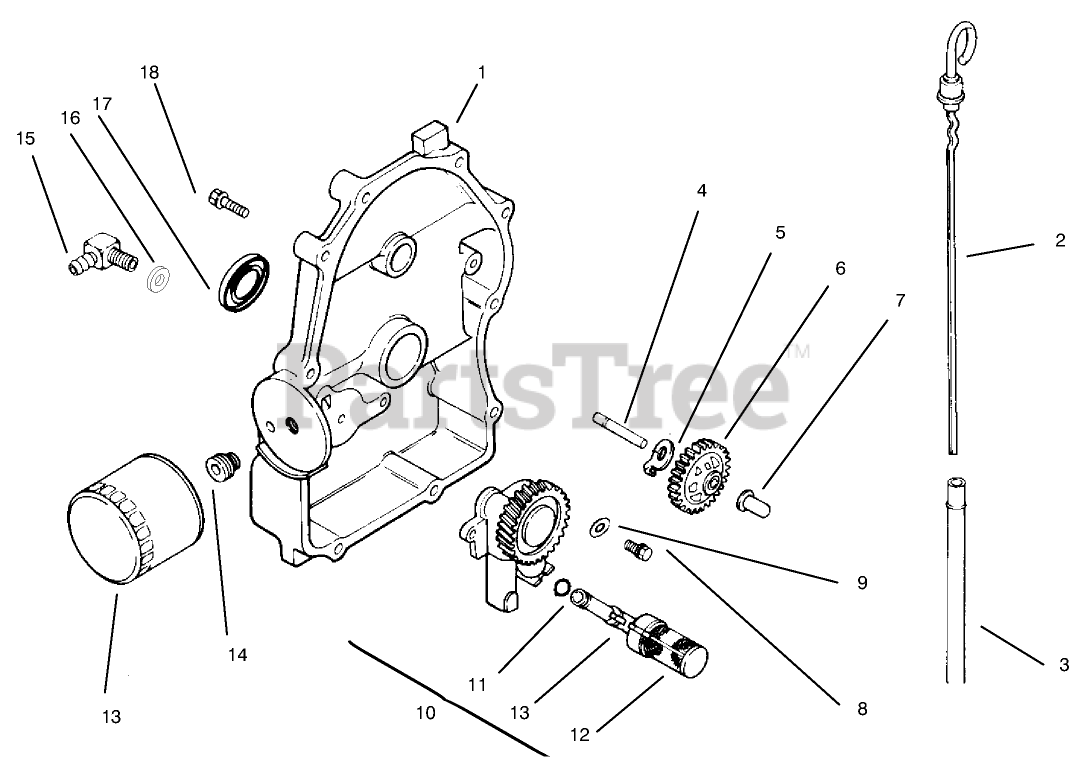

OIL PAN/LUBRICATION Parts Diagram

  • Title

1

Kohler 24 009 83

Plate-Closure (Incl. Ref. # 2-7, 10-12, 16 & 17)
(Superseded to 24 009 83-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$406.99

$

Usually ships in 2-5 days

0

2

2403801

Dipstick

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$

$

Not available

3

2412304

Tube-Dipstick

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$

$

Not available

4

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$4.49

$

In Stock, only 2 left!

0

5

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12

Kit-Governor Gear Asm (Incl. Ref. # 7)
(Superseded to 24 043 12-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$68.99

$

In Stock, only 2 left!

0

7

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$3.49

$

In Stock, only 4 left!

0

8

Kohler M-0645025

Screw
(Superseded to M-645025)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$2.99

$

In Stock, Qty 14

0

9

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$2.49

$

In Stock, only 2 left!

0

10

2439303

Oil Pump Assembly (Incl. Ref. # 11-12)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$

$

Not available

11

Kohler 24 153 01

O-Ring
(Superseded to 24 153 01-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$2.49

$

In Stock, Qty 13

0

12

24381 01

Pick-Up-Oil

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$

$

Not available

13

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$18.99

$

In Stock, Qty 20+

0

14

Kohler 24 136 01

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$5.99

$

In Stock, only 2 left!

0

15

Kohler 25 155 02

Connector
(Superseded to 25 155 02-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$14.99

$

In Stock, only 3 left!

0

16

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$7.99

$

In Stock, only 1 left!

0

17

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$12.99

$

In Stock, Qty 20+

0

18

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Kohler Engine model CH20QS PS 64556 Obtain parts from Kohler

$2.99

$

In Stock, Qty 20+

0
