30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 099000001 - 099999999) (1999) CRANKCASE Parts Diagram

Groundsmaster Rear-Engine Riding Mower

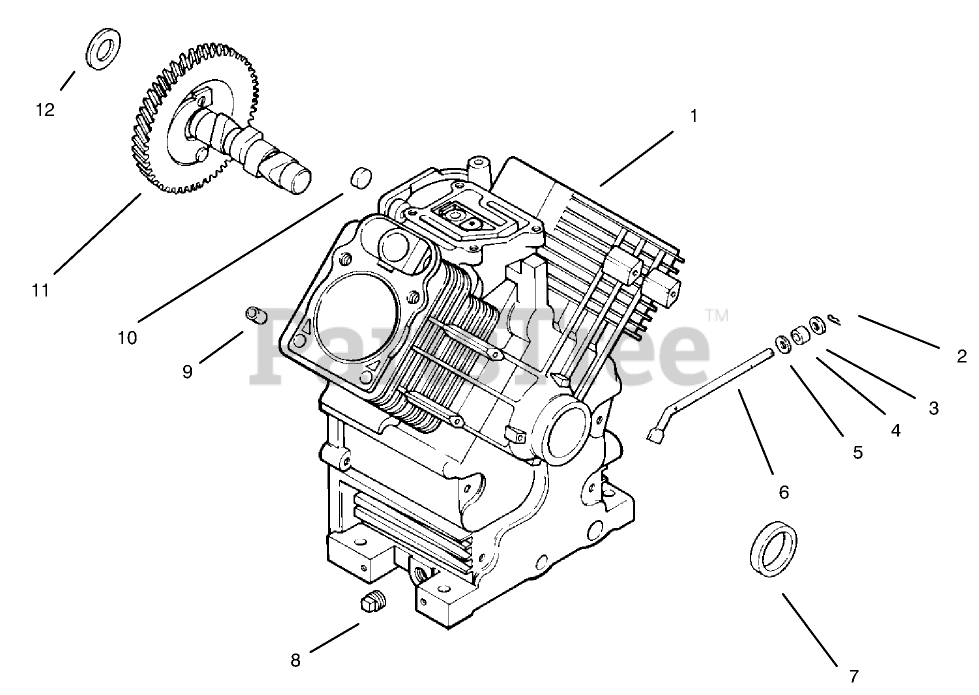

CRANKCASE Parts Diagram

  • Title

1

Cylinder Block (Use Miniblock 24 782 01)

$

$

Not available

2

1238004

Pin-Hitch

$

$

Not available

3

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 9

0

4

1203201

Seal-Cross Shaft

$

$

Not available

5

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

6

2414401

Shaft-Governor Cross

$

$

Not available

7

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

$7.49

$

In Stock, Qty 20+

0

8

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 13

0

9

1238003

Pin-Dowel

$

$

Not available

10

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

$4.99

$

In Stock, Qty 8

0

11

2401205

Camshaft

$

$

Not available

12

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Not illustrated

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Not illustrated

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Not illustrated

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Not illustrated

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Not illustrated

$2.99

$

In Stock, only 1 left!

0

2478201

Miniblock

Note: Not illustrated

$

$

Not available

2475503

Gasket Set

Note: Not illustrated

$

$

Not available
