30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) IGNITION & CHARGING SYSTEM(CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

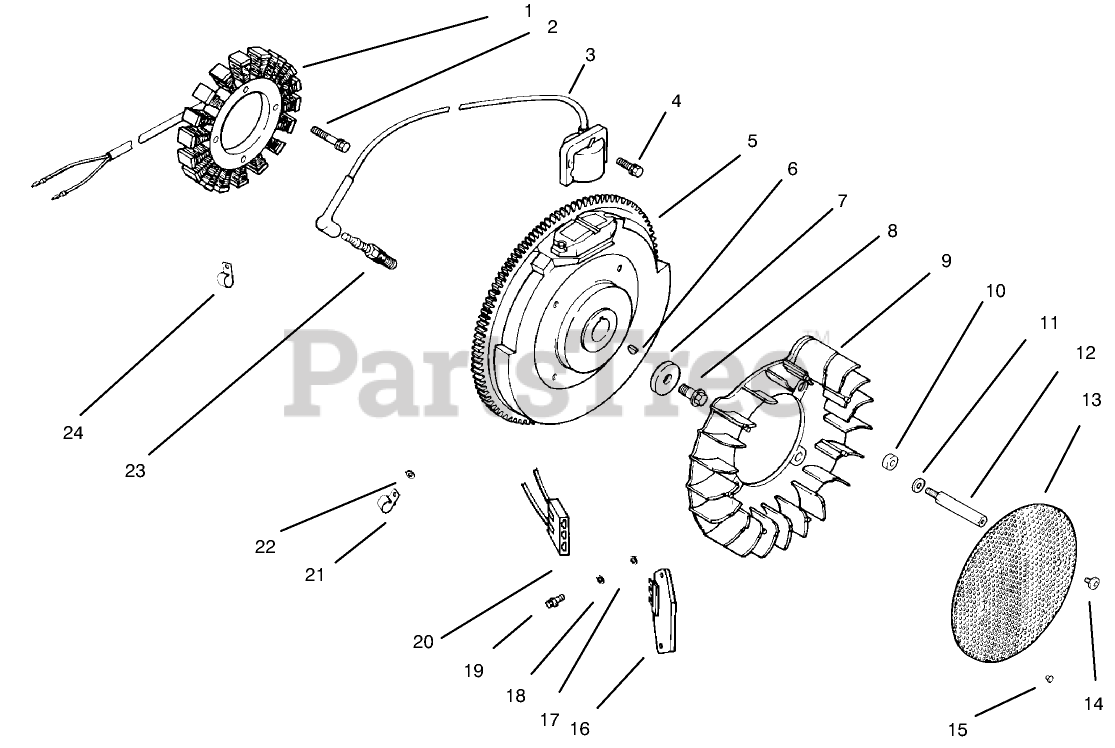

IGNITION & CHARGING SYSTEM(CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Kohler 24 085 01-S

Stator-15 amp
(Superseded to 24 085 03-S)

$149.99

$

In Stock, Qty 12

0

2

Toro M-0548025-S

Screw

$

$

Currently unavailable

3

Kohler 24 584 01-S

Module-Ignition
(Superseded to 24 584 45-S)

$

$

Not available

4

Toro SM-0545020-S

Screw

$

$

Currently unavailable

5

Kohler 24 025 01-S

Flywheel
(Superseded to 24 025 55-S)

$

$

Not available

6

Kohler X-42-15-S

KEY (3/16 X 5/8)

$2.99

$

In Stock, only 2 left!

0

7

Kohler 12 468 03-S

WASHER-FLAT (13/32)

$6.49

$

In Stock, only 1 left!

0

8

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

$3.49

$

In Stock, only 1 left!

0

9

Kohler 24 157 01-S

Fan
(Superseded to 24 755 253-S)

$45.99

$

In Stock, Qty 7

0

10

Kohler 12 112 01-S

Spacer-Fan

$

$

Not available

11

Kohler X-25-53-S

WASHER-FLAT (1/4)

$3.49

$

In Stock, Qty 12

0

12

Toro 24 072 01-S

Stud-Grass Screen

$

$

Currently unavailable

13

Toro 24 162 13-S

Screen-Grass

$

$

Currently unavailable

14

Toro M-0657010-S

Screw

$

$

Currently unavailable

15

Kohler 25 086 43-S

Screw-Set (10-24X.25)

$2.49

$

Usually ships in 2-5 days

0

16

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

$105.99

$

In Stock, Qty 6

0

17

Kohler X-25-63-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, only 4 left!

0

18

Kohler X-25-92-S

WASHER-FLAT (.188)

$2.99

$

In Stock, only 2 left!

0

19

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

$7.99

$

In Stock, Qty 11

0

21

Kohler 235173-S

CLIP-CABLE

$11.99

$

Usually ships in 2-5 days

0

22

Kohler X-25-63-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, only 4 left!

0

23

Kohler 12 132 02-S

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

24

Kohler 48 154 02-S

Clip-Cable

$16.99

$

Usually ships in 2-5 days

0

Kohler 24 176 40-S

Harness-Wiring

Note: Not illustrated

$

$

Not available

Toro 24 518 04-S

Lead-Green,18 Gauge

Note: Not illustrated

$

$

Currently unavailable
