30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 210000001 - 210999999) (2001) STARTER(CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

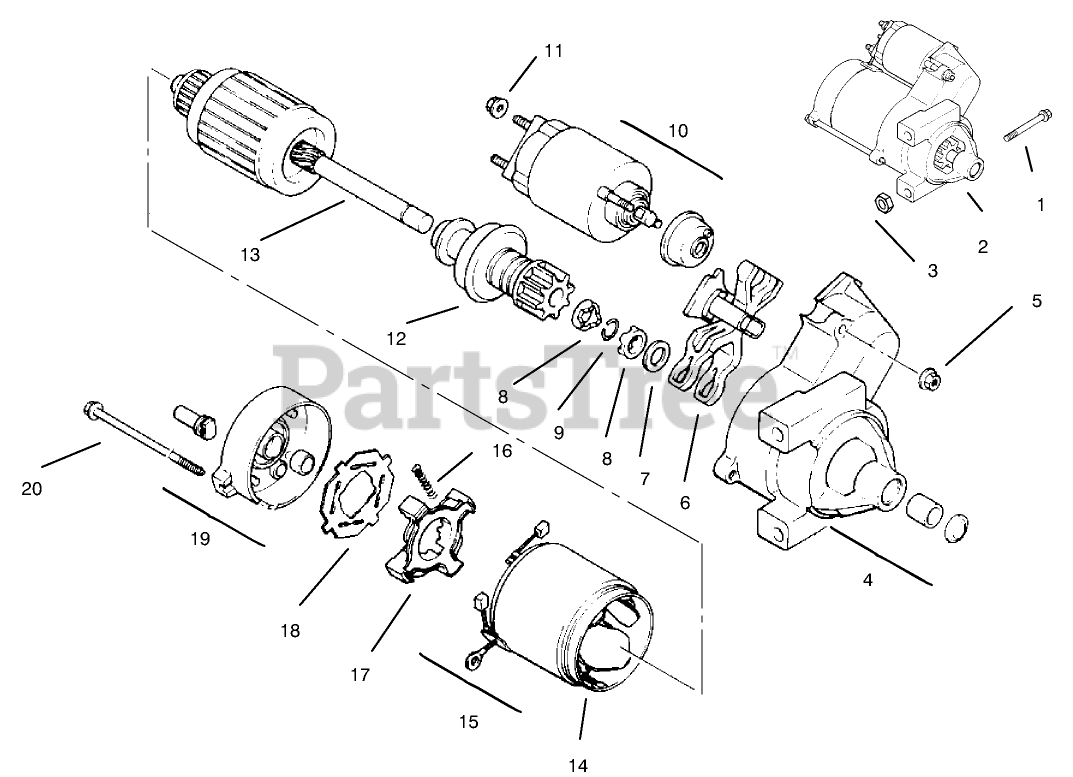

STARTER(CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Toro SM-0839080-S

Screw

$

$

Currently unavailable

2

Kohler 24 098 01-S

Starter-Solenoid Shift (Incl. Ref. # 4-20)
(Superseded to 25 098 09-S)

$264.99

$

Usually ships in 2-5 days

0

3

Toro M-0841080-S

Nut

$

$

Currently unavailable

4

Kohler 24 081 04-S

Cap-End, Drive

$365.99

$

Usually ships in 2-5 days

0

5

Kohler 52 100 10-S

Nut-Starter

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 12 090 10-S

LEVER-DRIVE, STARTER

$91.99

$

Usually ships in 2-5 days

0

7

Toro 52 468 14-S

Washer-Thrust

$

$

Currently unavailable

8

Toro 52 100 08-S

Nut-Stop Collar

$

$

Currently unavailable

9

Toro 52 141 03-S

Ring-Retainer

$

$

Currently unavailable

10

Kohler 52 435 02-S

Solenoid

$566.99

$

Usually ships in 2-5 days

0

11

Kohler 52 100 09-S

Nut

$5.99

$

Usually ships in 2-5 days

0

12

Kohler 12 239 01-S

Drive-Pinion

$361.99

$

Usually ships in 2-5 days

0

13

Kohler 12 170 03-S

Armature-Starter

$

$

Not available

14

Kohler 12 471 01-S

Frame w/Brushes ASM

$

$

Not available

15

Kohler 52 221 01-S

Kit-Brush (Incl. Ref. # 16)

$130.99

$

Usually ships in 2-5 days

0

16

Kohler 52 089 09-S

Spring-Brush

$7.99

$

Usually ships in 2-5 days

0

17

Kohler 52 323 03-S

Holder-Brush

$23.99

$

Usually ships in 2-5 days

0

18

Kohler 52 168 01-S

Insulator

$35.99

$

Usually ships in 2-5 days

0

19

Kohler 12 301 01-S

CAP-END, COMMUTATOR

$

$

Not available

20

Kohler 52 211 05-S

Bolt-Thru

$11.99

$

Usually ships in 2-5 days

0
