30612 (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 230000001 - 230999999) (2003) HYDRAULIC LIFT CYLINDER ASSEMBLY 54-0150 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

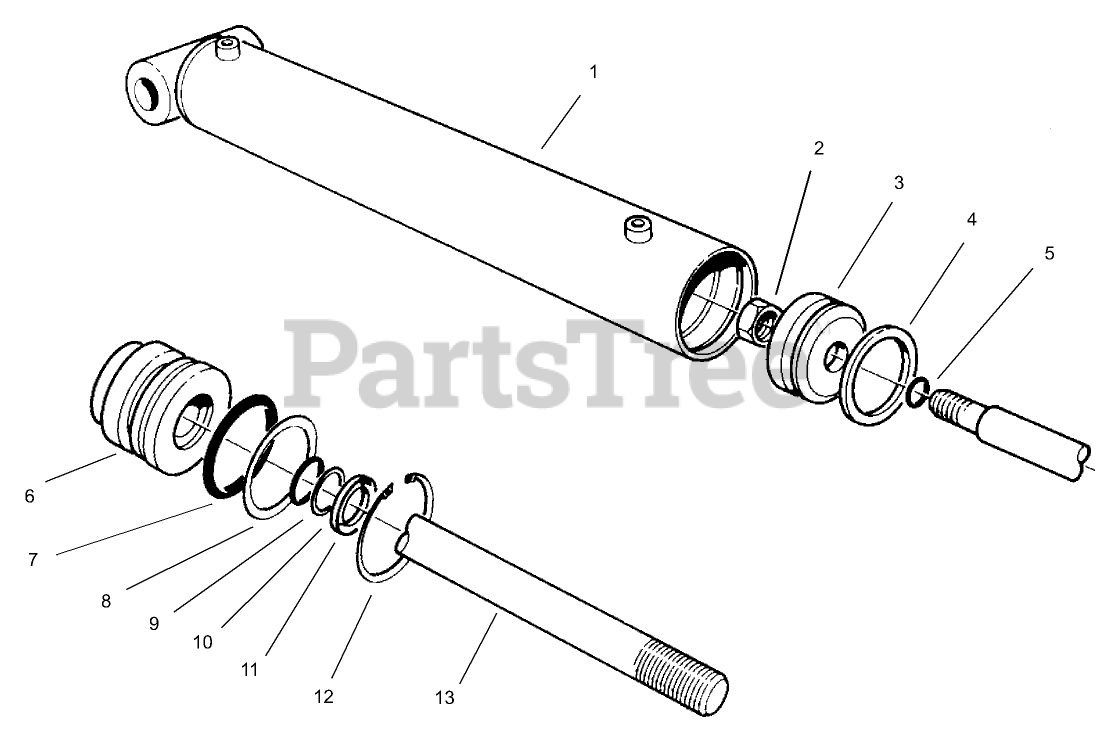

HYDRAULIC LIFT CYLINDER ASSEMBLY 54-0150 Parts Diagram

  • Title

1

Barrel

Note: Not serviced separately

$

$

Not available

2

Toro 32152-10

LOCKNUT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 54-0300

PISTON

$359.99

$

Usually ships in 3-6 days

0

4

Uniring

Note: Not serviced separately

$

$

Not available

5

Seal-Dust

Note: Not serviced separately

$

$

Not available

6

Toro 54-0310

HEAD

$328.99

$

Usually ships in 3-6 days

0

7

Seal-Dust

Note: Not serviced separately

$

$

Not available

8

Washer-Backup

Note: Not serviced separately

$

$

Not available

9

Seal-Dust

Note: Not serviced separately

$

$

Not available

10

Washer-Backup

Note: Not serviced separately

$

$

Not available

11

Seal-Dust

Note: Not serviced separately

$

$

Not available

12

Toro 43-5220

RING-RETAINING

$81.99

$

Usually ships in 3-6 days

0

13

Toro 54-0280

SHAFT

$

$

Not available

Toro 54-0290

Seal Repair Kit (Incl. Ref. #4, 5 &7-11)

Note: Not illustrated

$136.99

$

Usually ships in 3-6 days

0
