30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) CRANKSHAFT, PISTON AND RINGS (CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

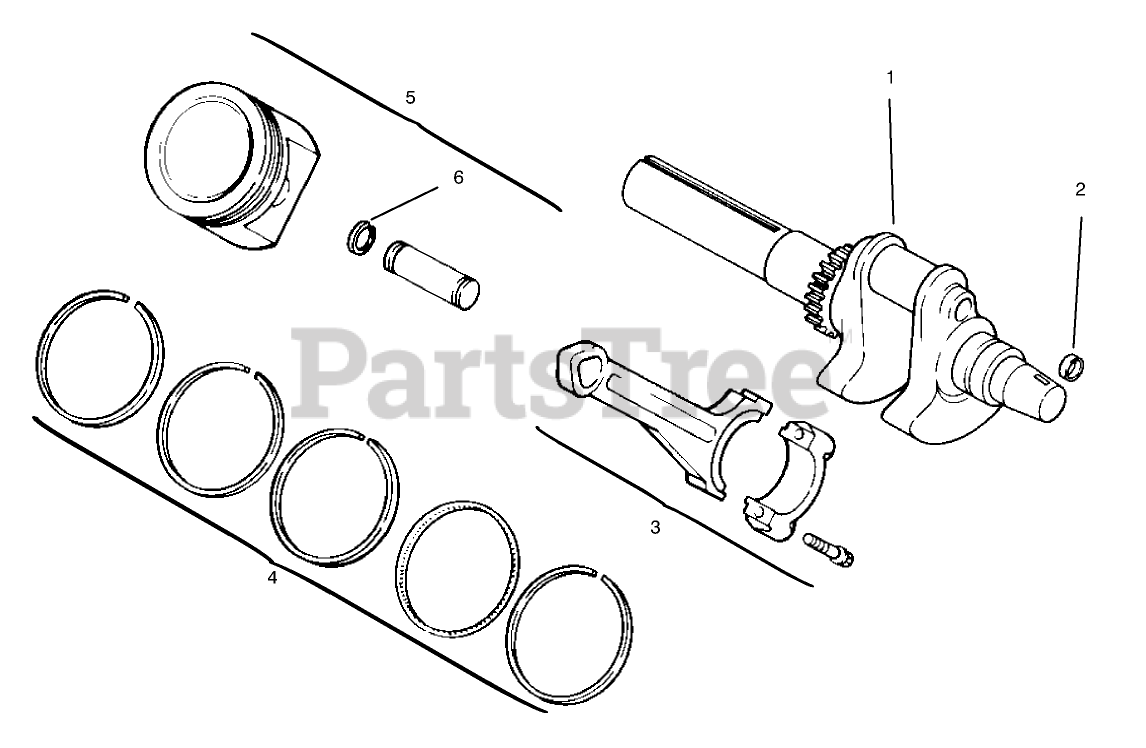

CRANKSHAFT, PISTON AND RINGS (CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Kohler 24 014 32-S

Crankshaft
(Superseded to 24 014 360-S)

$411.99

$

Usually ships in 2-5 days

0

2

Kohler 12 139 01-S

Plug-Cup

$

$

Not available

3

Toro 24 067 05-S

Connecting Rod (Std.)

$

$

Currently unavailable

Toro 24 067 06-S

Connecting Rod (.25)

Note: Not illustrated

$

$

Currently unavailable

4

Kohler 24 108 01-S

Set-Ring (STD)
(Superseded to 24 108 22-S)

$

$

Not available

Kohler 24 108 02-S

Ring Set (.25)
(Superseded to 24 108 12-S)

Note: Not illustrated

$

$

Not available

Kohler 24 108 03-S

Ring Set (.50)
(Superseded to 24 108 25-S)

Note: Not illustrated

$

$

Not available

5

Kohler 24 874 01-S

Piston w/Ring Set (Std.)(Incl. Ref. #4-6)
(Superseded to 24 874 46-S)

$

$

Not available

Kohler 24 874 02-S

Piston w/Ring Set (.25)
(Superseded to 24 874 48-S)

Note: Not illustrated

$

$

Not available

Kohler 24 874 03-S

Piston w/Ring Set (.50)
(Superseded to 24 874 49-S)

Note: Not illustrated

$189.99

$

Usually ships in 2-5 days

0

6

Kohler 24 018 01-S

RETAINER-PIN, PISTON

$3.49

$

In Stock, Qty 9

0
