30612 TE (120) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 220000001 - 220999999) (2002) OIL PAN/LUBRICATION (CH20QS PS64556 KOHLER) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

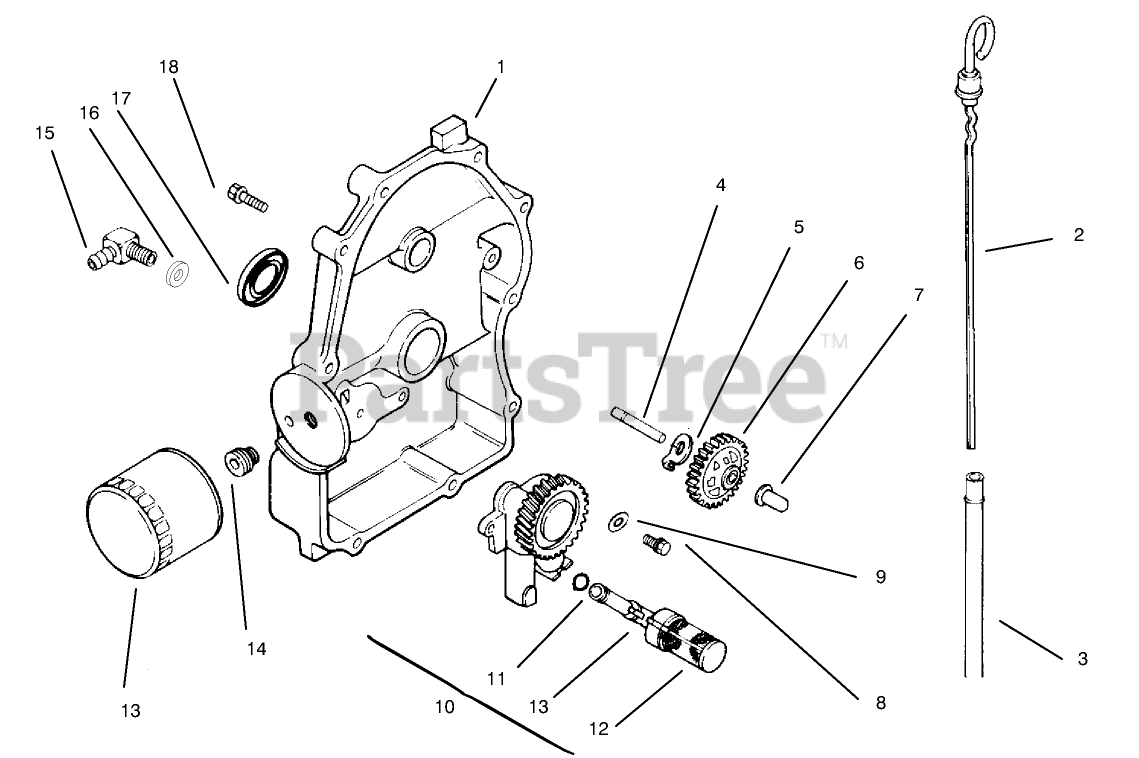

OIL PAN/LUBRICATION (CH20QS PS64556 KOHLER) Parts Diagram

  • Title

1

Kohler 24 009 83-S

Plate-Closure (Incl. Ref. #2-7, 10-12, 16 & 17)
(Superseded to 24 009 238-S)

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 038 01-S

Dipstick
(Superseded to 24 755 121-S)

$43.99

$

In Stock, only 1 left!

0

3

Kohler 24 123 04-S

Tube-Dipstick
(Superseded to 24 755 121-S)

$43.99

$

In Stock, only 1 left!

0

4

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

$4.49

$

In Stock, only 2 left!

0

5

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12-S

Kit-Governor Gear Asm (Incl. Ref. #7)

$68.99

$

Usually ships in 2-5 days

0

7

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

$3.49

$

In Stock, only 4 left!

0

8

Toro M-0645025-S

Screw

$

$

Currently unavailable

9

Toro M-0631005-S

Washer-Flat

$

$

Currently unavailable

10

Kohler 24 393 03-S

Oil Pump Assembly (Incl. Ref. #11-12)

$

$

Not available

11

Kohler 24 153 01-S

O-RING

$2.49

$

In Stock, Qty 13

0

12

Toro 24 381 01-S

Pick-up, Oil

$

$

Currently unavailable

13

Kohler 12 050 01-S

FILTER-OIL

$18.99

$

In Stock, Qty 20+

0

14

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

15

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 3 left!

0

16

Kohler 24 153 08-S

O-Ring

$7.99

$

In Stock, only 1 left!

0

17

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

$12.99

$

In Stock, Qty 20+

0

18

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$2.99

$

In Stock, Qty 20+

0
