30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) ELECTRICAL SCHEMATIC Parts Diagram

ProLine Rear-Engine Riding Mower

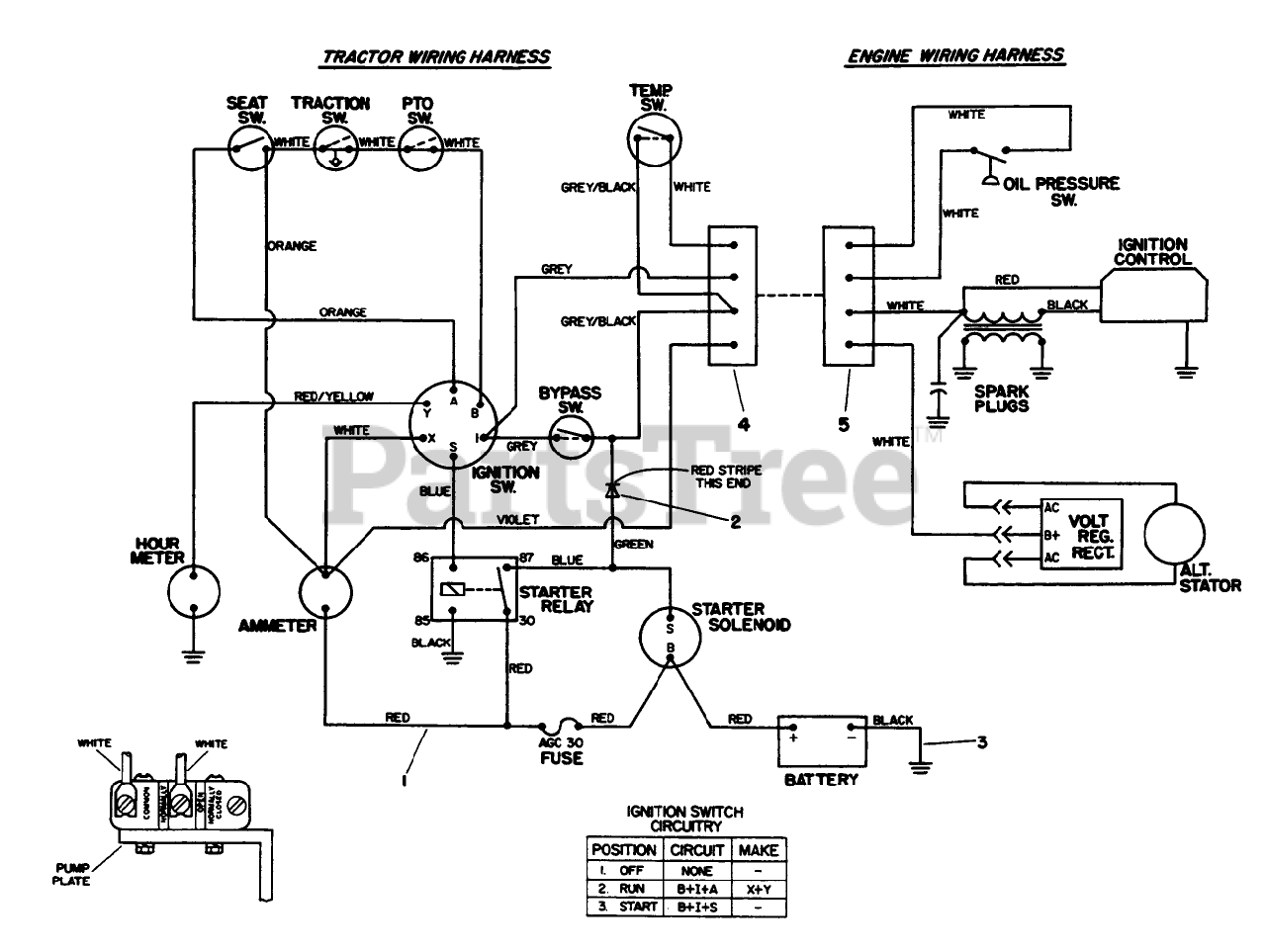

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

1

Toro 86-9470

Harness-Wire (Incl. Ref. #2)

$

$

Not available

2

Toro 86-7470

DIODE ASM

$39.99

$

Usually ships in 3-6 days

0

3

Toro 27-5090

BATTERY GROUND WIRE

$55.99

$

Usually ships in 3-6 days

0

4

Toro 72-4020

TAB HOUSING

$

$

Not available

Toro 72-4040

TAB TERMINAL

Note: Not illustrated

$

$

Not available

5

Toro 72-4010

RECEPTACLE HOUSING

$

$

Not available

Toro 72-4000

RECEPTACLE TERMINAL

Note: Not illustrated

$

$

Not available

Toro 72-4030

RECEPTACLE HOUSING

Note: Not illustrated

$

$

Not available

Toro 71-6070

ENGINE WIRING HARNESS

Note: Not illustrated

$

$

Not available

Toro 72-3990

RING TERMINAL

Note: Not illustrated

$

$

Not available

Toro 28-1280

BOOT-CABLE, BATTERY

Note: Not illustrated

$

$

Not available
