30620 (220) - Toro ProLine Rear-Engine Riding Mower (SN: 059000001 - 059999999) (1995) HOOD ASSEMBLY Parts Diagram

ProLine Rear-Engine Riding Mower

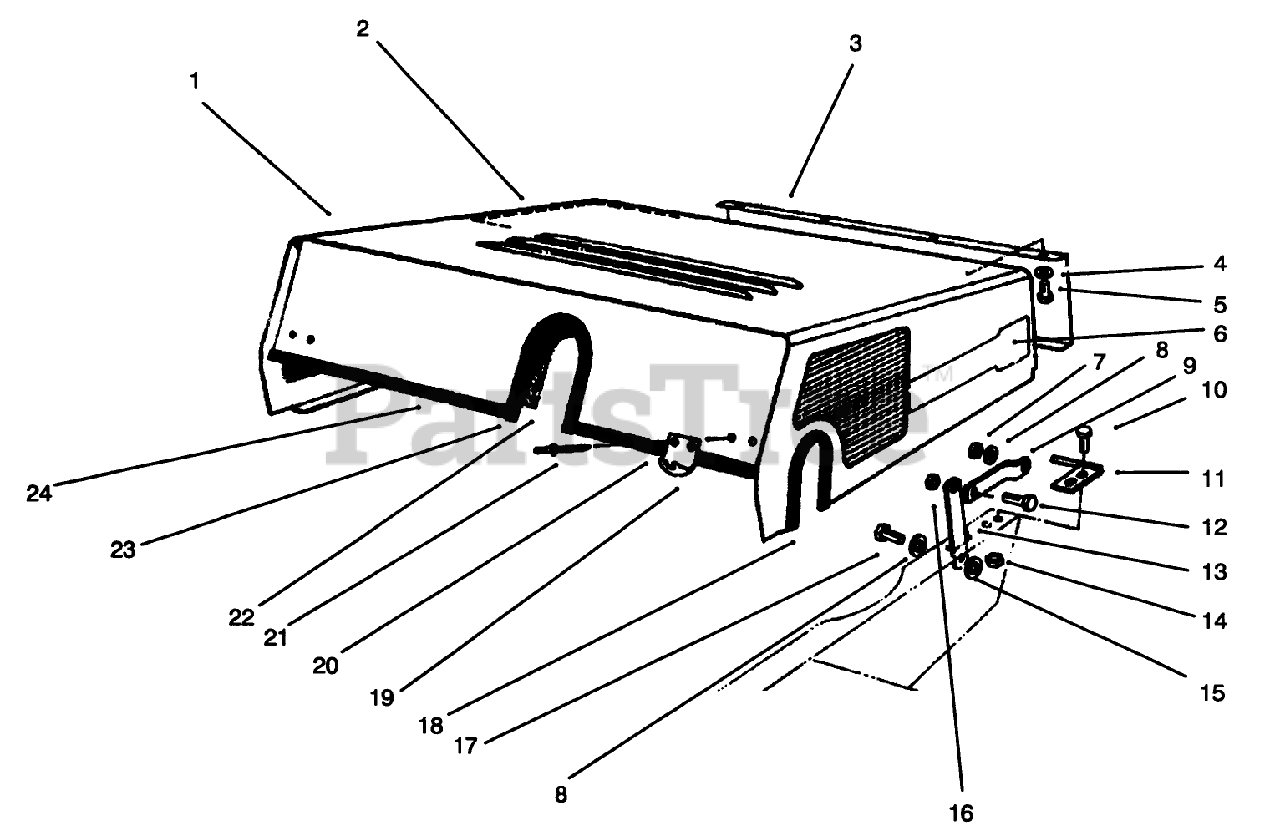

HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 12-5869

HOOD IN CARTON

$

$

Not available

2

Toro 44-9040

REAR HOOD FOAM STRIP

$102.99

$

Usually ships in 3-6 days

0

3

Toro 44-8830

Grille-Rear Panel
(Superseded to 44-8830-03)

$

$

Not available

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 32140-16

Screw
(Superseded to 32140-42)

$

$

Not available

6

Toro 92-1584

GM 220 DECAL

$

$

Not available

7

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

9

Toro 27-6800

Link Hood
(Superseded to 27-6800-01)

$

$

Not available

10

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

11

Toro 27-4830

PivotPin L.H.
(Superseded to 27-4830-01)

$

$

Not available

Toro 27-4800

Pin-Pivot R.H.
(Superseded to 27-4800-01)

Note: Not illustrated

$

$

Not available

12

Toro 3211-27

SCREW-HH

$

$

Not available

13

Toro 27-6810

Tie Hood
(Superseded to 27-6810-01)

$17.99

$

Usually ships in 3-6 days

0

14

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 4-2390

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

16

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

17

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

18

Toro 44-9190

HOOD TRIM

$

$

Not available

19

Toro 249-40

KEEPER

$11.99

$

Usually ships in 3-6 days

0

20

Toro 46-3320

HOOD TRIM

$

$

Not available

21

Toro 3269-16

RIVET

$0.99

$

Usually ships in 3-6 days

0

22

Toro 44-9030

FRT HOOD FOAM STRIP

$

$

Not available

23

Toro 38-4070

HOOD TRIM

$13.99

$

Usually ships in 3-6 days

0

24

Toro 38-4080

TRIM-HOOD

$

$

Not available
