30632 - Toro 32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive (SN: 314000001 - 314999999) (2014) HANDLE CONTROL ASSEMBLY Parts Diagram

32" Walk-Behind Mower, Fixed Deck, Pistol Grip, Gear Drive

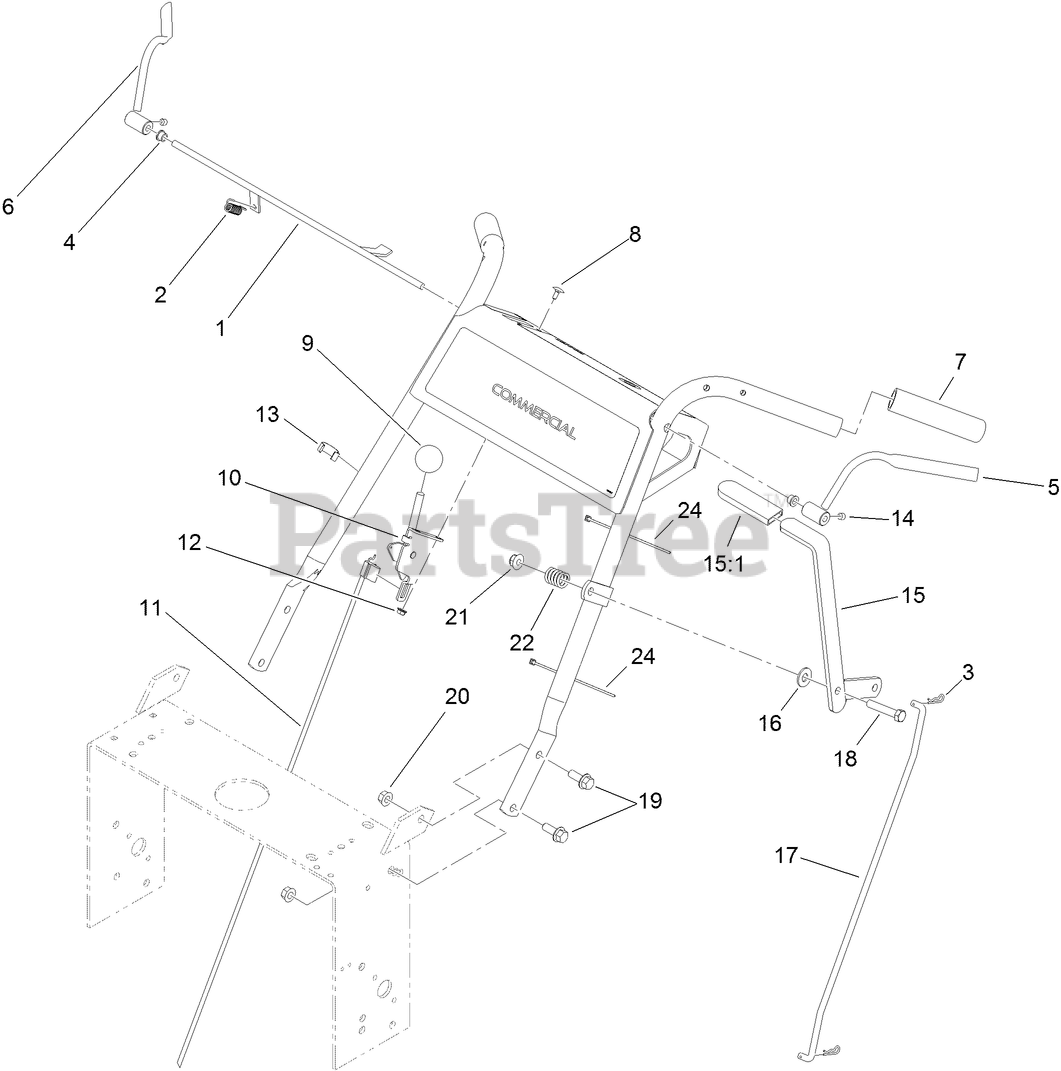

HANDLE CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 106-2717-03

ROD-CONTROL, OPERATOR PRESENCE

$69.99

$

Usually ships in 3-6 days

0

2

Toro 1-303363

SPRING-EXTENSION

$6.99

$

In Stock, Qty 14

0

3

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

4

Toro 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 20+

0

5

Toro 106-5485

LH OPERATOR PRESENCE CONTROL LEVER ASM

$69.99

$

Usually ships in 3-6 days

0

6

Toro 106-5486

RH OPERATOR PRESENCE CONTROL LEVER ASM

$64.99

$

Usually ships in 3-6 days

0

7

Toro 104-9838

GRIP-FOAM

$6.49

$

In Stock, Qty 20+

0

8

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 16

0

9

Toro 1-603175

KNOB-BALL

$12.99

$

In Stock, only 2 left!

0

10

Toro 110-5547

LEVER-CONTROL

$42.99

$

In Stock, only 2 left!

0

11

Toro 119-1823

CABLE-CONTROL, THROTTLE

$45.99

$

Usually ships in 3-6 days

0

12

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

13

Toro 1-303088

Clip-Cable

$2.99

$

Usually ships in 3-6 days

0

14

Toro 1-803322

SCREW-SET

$1.49

$

In Stock, Qty 20+

0

15

Toro 116-6331

LEVER ASM

$60.99

$

Usually ships in 3-6 days

0

15:1

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, only 2 left!

0

16

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

17

Toro 1-323298

Linkage-Blade, Upper

$99.99

$

Usually ships in 3-6 days

0

18

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 9

0

19

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

20

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 1-303160

SPRING-COMPRESSION

$6.99

$

Usually ships in 3-6 days

0

24

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
