3063356 - Bobcat 61" Z-VAC Triple Bag Catcher

61" Z-VAC Triple Bag Catcher

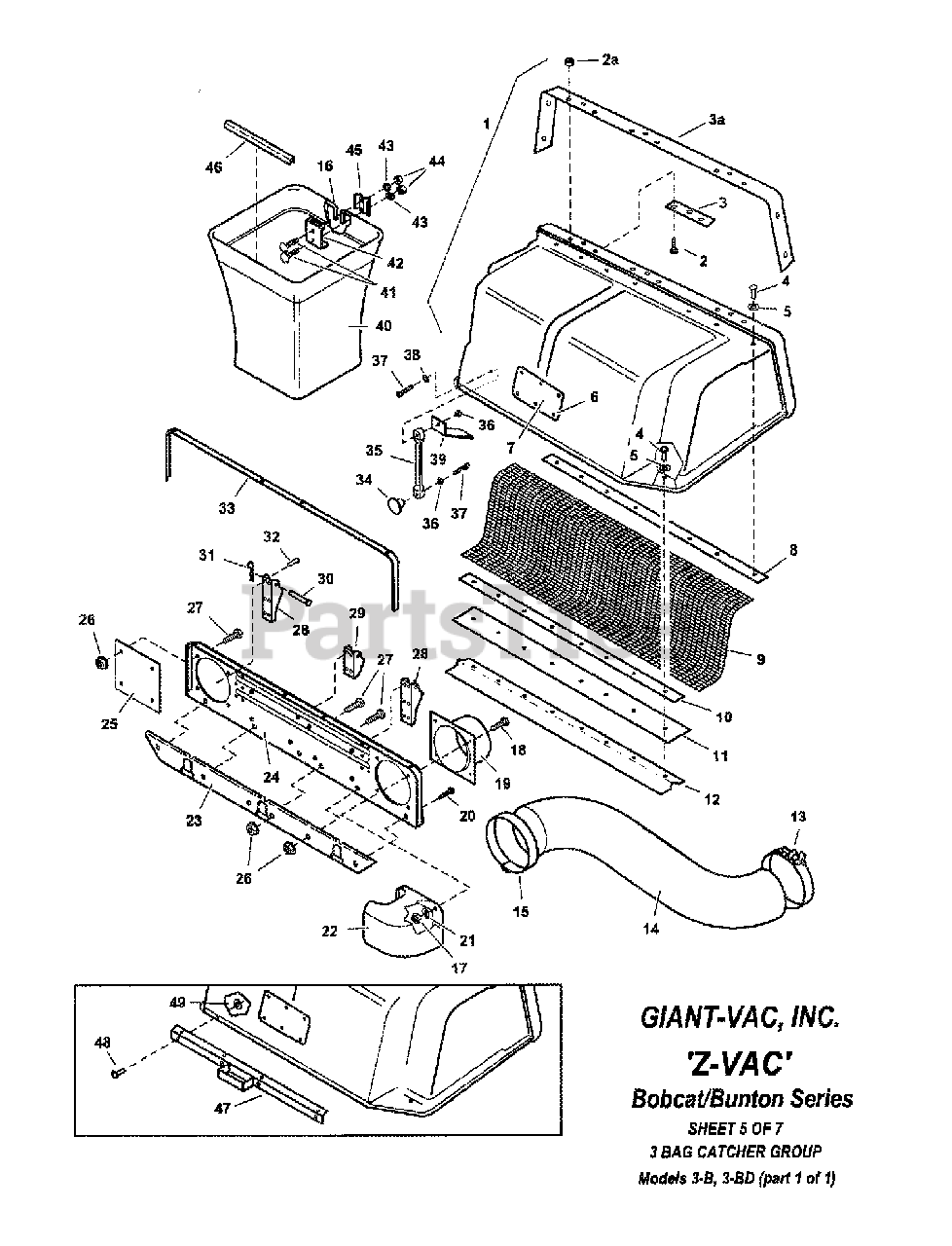

3063356 - Bobcat 61" Z-VAC Triple Bag Catcher > Parts Diagrams (6) > 3 BAG CATCHER GROUP

  • Title
3046862

1

ASSEMBLY, Cover & Screen

Part# 3046862 (Superseded to 3046862YP)

Note: includes Ref No. 2-12

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $711.50

7091495

2

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR5

Part# 7091495 (Superseded to 703925)

Note: secures hinges & hinge stiffener to top of cover

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.74

7079405

2

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR5

Part# 7079405 (Superseded to 001X38MA)

Note: secures hinge stiffener to sides of cover

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $3.09

7091584

2a

NUT, 1/4-20 Hex Flange, GR5

Part# 7091584 (Superseded to 703233)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $3.19

1717067

3

WELDMENT, Hinge

Part# 1717067 (Superseded to 1717067ASM)

OEM Warranty Repair Part for Giant-Vac

Not available

3027475

3a

STIFFENER, Hinge

Part# 3027475

OEM Warranty Repair Part for Giant-Vac

Not available

7076958

4

POP RIVET, 3/16 x .565 Aluminum

Part# 7076958

OEM Warranty Repair Part for Giant-Vac

Currently unavailable

1910531

5

WASHER, Rivet .188 (.20 I.D. x .500 O.D.)

Part# 1910531 (Superseded to 1910531SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.80

1667248

6

CLIP, Canoe

Part# 1667248 (Superseded to 1667248SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

1704405

7

* DECAL, Safety, Grass Bag

Part# 1704405 (Superseded to 1732820SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $48.80

1716970

8

CLAMP

Part# 1716970 (Superseded to 1716970ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.23

1717041

9

SCREEN, Catcher

Part# 1717041 (Superseded to 1717041SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $29.24

1717524

10

CLAMP, Seal

Part# 1717524 (Superseded to 1717524ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.70

1716968

11

SEAL, Catcher Top

Part# 1716968 (Superseded to 1716968SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $27.67

1716972

12

ANGLE, Screen

Part# 1716972 (Superseded to 1716972ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $36.95

3022876

13

HOSE CLAMP, Lower, Fast Vac

Part# 3022876

OEM Warranty Repair Part for Giant-Vac

Not available

3022833

14

HOSE, Snapper Fast Vac

Part# 3022833 (Superseded to 3022833SM)

OEM Warranty Repair Part for Giant-Vac

Not available

3022875

15

HOSE CLAMP, Upper

Part# 3022875

OEM Warranty Repair Part for Giant-Vac

Not available

1703855

16

HOOP, Grass Bag

Part# 1703855 (Superseded to 1703855ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $83.40

7091298

17

NUT, 5/16-18 Hex Nyloc

Part# 7091298 (Superseded to 703902)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.85

7090636

18

SCREW, 5/16-18 x 1" Hex Head Cap, GR5

Part# 7090636 (Superseded to 703585)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $3.08

3046801

19

WELDMENT, Hose Adapter

Part# 3046801 (Superseded to 3046801SM)

OEM Warranty Repair Part for Giant-Vac

Not available

7091122

20

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap

Part# 7091122 (Superseded to 704130)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.57

7091130

21

WASHER, 5/16" Flat

Part# 7091130 (Superseded to 7091130SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.57

1717039

22

DEFLECTOR, Grass Bag

Part# 1717039 (Superseded to 1717039SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $72.50

1716973

23

ASSEMBLY, Channel

Part# 1716973 (Superseded to 1716973ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $325.00

1716966

24

WELDMENT, Backplate

Part# 1716966 (Superseded to 1716966ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $164.29

1717037

25

COVER, Backplate

Part# 1717037 (Superseded to 1725969SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $22.03

7091601

26

NUT, 5/16-18 Hex Flange Lock

Part# 7091601 (Superseded to 703409)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $4.03

7091318

27

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5

Part# 7091318 (Superseded to 704287)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.57

1720875

28

HINGE

Part# 1720875 (Superseded to 1720875ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $14.09

1720945

29

HINGE

Part# 1720945 (Superseded to 1720945ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $10.51

1672344

30

PIN, 3/8 x 2-3/4"

Part# 1672344 (Superseded to 1672344SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.69

1960074

31

HAIR PIN, .093 Dia.

Part# 1960074 (Superseded to 703300)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.63

3022834

32

RIVET

Part# 3022834

OEM Warranty Repair Part for Giant-Vac

Currently unavailable

1717082

33

SEAL, Catcher Top

Part# 1717082 (Superseded to 1717082SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $51.99

3022838

34

KNOB

Part# 3022838

OEM Warranty Repair Part for Giant-Vac

Currently unavailable

3021670

35

STRAP, Rubber

Part# 3021670

OEM Warranty Repair Part for Giant-Vac

Currently unavailable

7090376

36

NUT, #10-32 Hex Nyloc

Part# 7090376 (Superseded to 703937)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

7090922

37

SCREW, #10-32 x 1-1/2 Hex Washer Head Machine w/Nylon Patch

Part# 7090922 (Superseded to 7090922YP)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7091928

38

WASHER, .19 x .38 x .06 Flat

Part# 7091928 (Superseded to 703446)

Note: Was 7091202

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.68

3046832

39

COVER, Support

Part# 3046832 (Superseded to 3046832YP)

OEM Warranty Repair Part for Giant-Vac

Not available

3000847

40

GRASS BAG

Part# 3000847 (Superseded to 1703764SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $67.75

7090316

41

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5

Part# 7090316 (Superseded to 703225)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.74

1703807

42

HANGER, Grass Bag

Part# 1703807 (Superseded to 1703807ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $14.93

7090187

43

WASHER, 5/16" Split Lock

Part# 7090187 (Superseded to 703116)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.29

7091511

44

NUT, 5/16-18 Hex, GR5 or B

Part# 7091511 (Superseded to 7091511SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.29

1672023

45

CLAMP, Grass Bag

Part# 1672023 (Superseded to 1672023ASM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $7.21

1675707

46

TUBE CLIP, Grass Bag

Part# 1675707 (Superseded to 1675707SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $4.19

3027476

47

WELDMENT, Cover Handle

Part# 3027476

OEM Warranty Repair Part for Giant-Vac

Not available

7092117

48

SCREW, 8-32 x 1/2" Cross Recess Pan Head

Part# 7092117 (Superseded to 7092117SM)

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7092116

49

WASHER, #8 External Tooth Lock

Part# 7092116

OEM Warranty Repair Part for Giant-Vac

Not available

7091018

50

NUT, #8-32 Hex

Part# 7091018 (Superseded to 703460)

Note: not shown, attaches to item 48

OEM Warranty Repair Part for Giant-Vac

Usually leaves our warehouse in 1 business day

Your price: $2.85
