30672 - Toro 32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 405670000 - 410299999) Handle and Control Assembly Parts Diagram

32" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

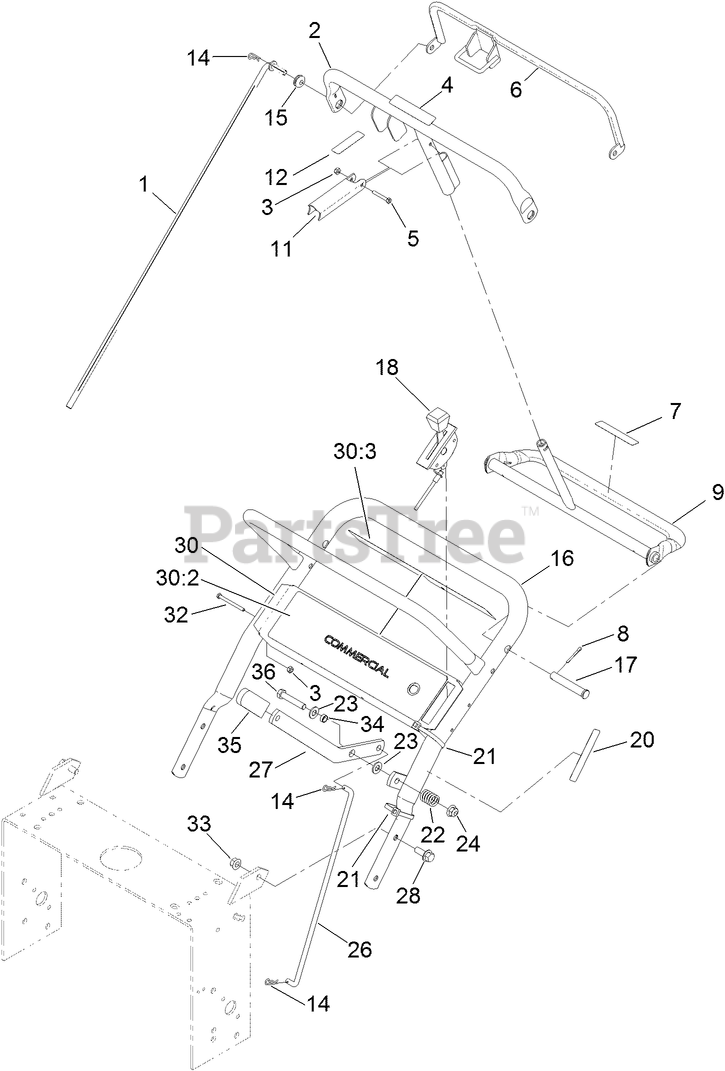

Handle and Control Assembly Parts Diagram

  • Title

1

Toro 132-4711

ROD-CONTROL

$46.99

$

Usually ships in 3-6 days

0

2

Toro 95-5522-03

BAR-CONTROL

$295.99

$

Usually ships in 3-6 days

0

3

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 93-7298

DECAL-BAR, CONTROL

$41.99

$

In Stock, only 1 left!

0

5

Toro 32105-1

SCREW-SHH

$3.99

$

In Stock, Qty 7

0

6

Toro 82-7680-03

BAIL

$161.99

$

Usually ships in 3-6 days

0

7

Toro 93-7299

DECAL-REVERSE

$36.99

$

Usually ships in 3-6 days

0

8

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-5477-03

PIVOT-CONTROL

$215.99

$

Usually ships in 3-6 days

0

11

Toro 98-3261-03

LEVER-BRAKE, PARKING

$39.99

$

Usually ships in 3-6 days

0

12

Toro 93-7442

DECAL-LEVER, PARKING

$25.99

$

Usually ships in 3-6 days

0

14

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

15

Toro 237-141

GROMMET-RUBBER

$2.99

$

In Stock, Qty 20+

0

16

Toro 98-3267-03

HANDLE-UPPER

$299.99

$

Usually ships in 3-6 days

0

17

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 3 left!

0

18

Toro 119-6539

CABLE-THROTTLE

$87.99

$

In Stock, only 4 left!

0

20

Toro 95-5537

DECAL-ENGAGE, DECK

$11.99

$

Usually ships in 3-6 days

0

21

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

22

Toro 1-303160

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 98-3279

LINKAGE-DRIVE, BLADE

$36.99

$

Usually ships in 3-6 days

0

27

Toro 98-3287-03

LEVER-ENGAGEMENT, BLADE

$51.99

$

Usually ships in 3-6 days

0

28

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

30

Toro 140-4296

CONTROL PANEL ASM

$158.99

$

Usually ships in 3-6 days

0

30:2

Toro 130-8374

DECAL-PANEL, CONTROL

$25.99

$

Usually ships in 3-6 days

0

30:3

Toro 140-1877

DECAL - WARNING, CONTROL

$23.99

$

Usually ships in 3-6 days

0

32

Toro 32105-14

SCREW-SHH

$3.99

$

Usually ships in 3-6 days

0

33

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

34

Toro 99-8509

SPACER

$15.99

$

Usually ships in 3-6 days

0

35

Toro 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 5

0

36

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
