30698 - Toro 48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive (SN: 280000001 - 280999999) (2008) DECK ASSEMBLY Parts Diagram

48" Walk-Behind Mower, Fixed Deck, T-Bar, Gear Drive

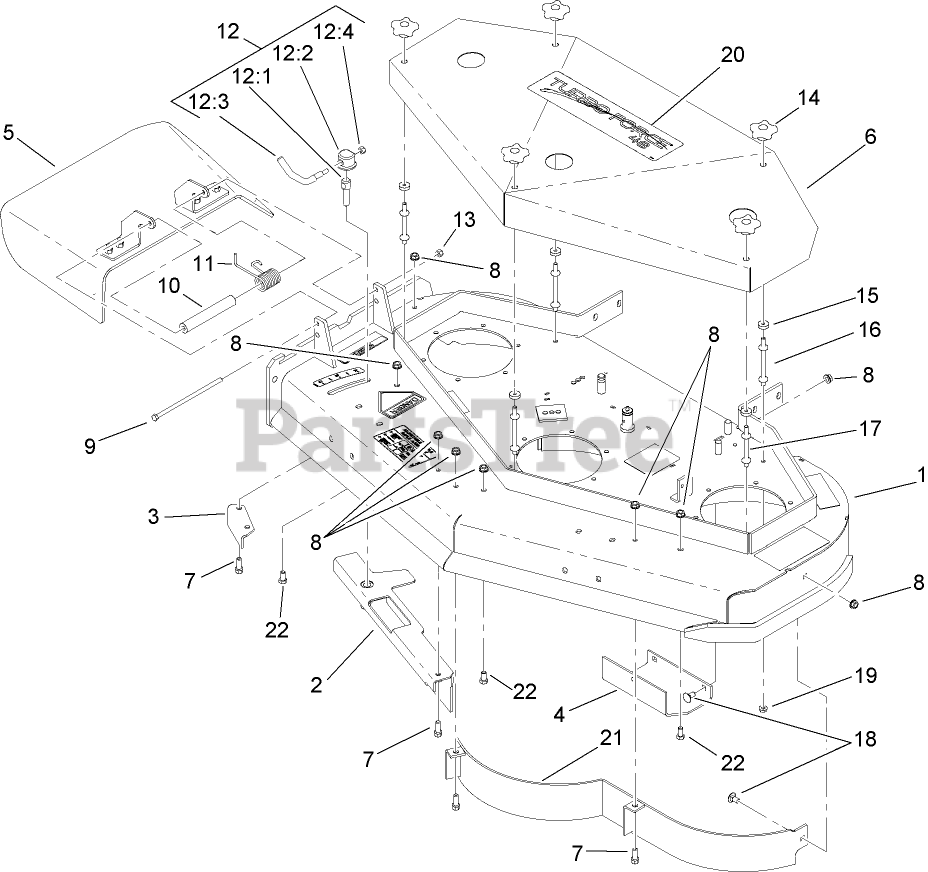

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-4909

DECK ASM

$4450.99

$

Usually ships in 3-6 days

0

2

Toro 110-0533-03

BAFFLE-ADJUSTABLE

$315.99

$

Usually ships in 3-6 days

0

3

Toro 110-0744-01

BAFFLE-DISCHARGE

$37.99

$

Usually ships in 3-6 days

0

4

Toro 107-3166-01

SKID

$72.99

$

Usually ships in 3-6 days

0

5

Toro 110-0758

DEFLECTOR ASM

$282.99

$

Usually ships in 3-6 days

0

6

Toro 110-2119-01

COVER

$299.99

$

Usually ships in 3-6 days

0

7

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-50

SCREW-HH

$6.99

$

In Stock, Qty 5

0

10

Toro 105-4622

SPACER

$11.99

$

In Stock, only 1 left!

0

11

Toro 104-8554

SPRING-TORSION

$26.99

$

Usually ships in 3-6 days

0

12

Toro 107-1664

LEVER ASM

$82.99

$

In Stock, only 2 left!

0

12:1

Toro 106-3239

Screw-Lock

$56.99

$

Usually ships in 3-6 days

0

12:2

Toro 107-1644

CAP-LOCK

$44.99

$

Usually ships in 3-6 days

0

12:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$82.99

$

In Stock, only 2 left!

0

12:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 106-4161

KNOB-HANDLE

$5.99

$

In Stock, Qty 20+

0

15

Toro 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

16

Toro 1-303536

STUD-SHIELD, BELT (LONG)

$8.49

$

In Stock, Qty 20+

0

17

Toro 1-303537

STUD-SHIELD, BELT (SHORT)

$6.99

$

In Stock, only 2 left!

0

18

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 15

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 110-6920

DECAL
(Superseded to 112-9712)

$82.99

$

Usually ships in 3-6 days

0

21

Toro 110-0735-03

BAFFLE

$257.99

$

Usually ships in 3-6 days

0

22

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0
