30705 - Toro Deluxe Seat DELUXE SEAT ASSEMBLY Parts Diagram

Deluxe Seat

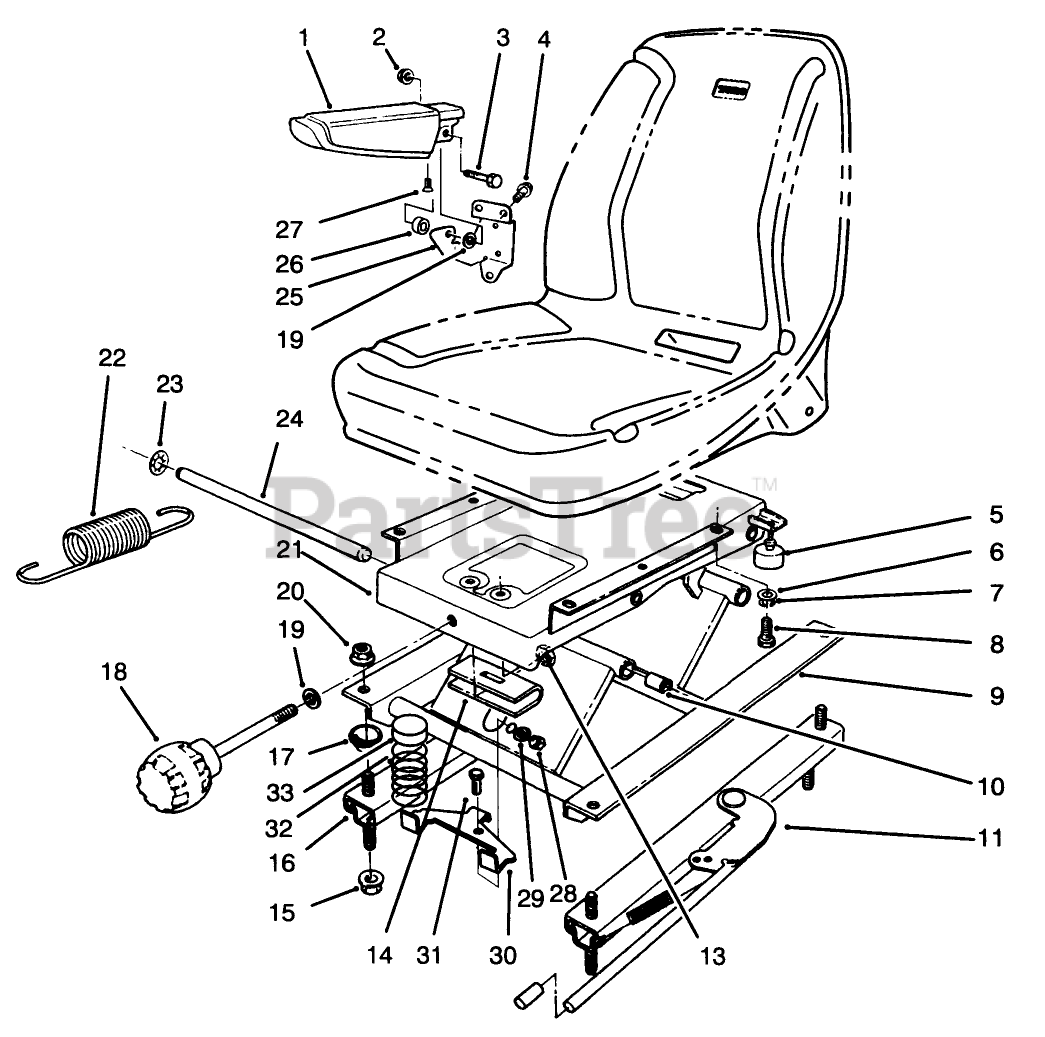

DELUXE SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 69-1180

ARMREST

$192.99

$

Usually ships in 3-6 days

0

2

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

5

Toro 76-2940

BUMPER

$11.99

$

Usually ships in 3-6 days

0

6

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 66-8610

FRAME-LOWER

$

$

Not available

10

Toro 76-1920

SLEEVE-BEARING

$

$

Not available

11

Toro 66-8510

ADJUSTER W / HANDLE
(Superseded to 108-6702)

$271.99

$

Usually ships in 3-6 days

0

13

Toro 32153-2

NUT-LOCK, SIDE

$0.99

$

In Stock, Qty 20+

0

14

Toro 77-2870

Hanger-Spring
(Superseded to 76-1960)

$523.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 66-8530

ADJUSTER
(Superseded to 108-6703)

$208.99

$

Usually ships in 3-6 days

0

17

Toro 66-9290

SPACER-SUSPENSION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 76-1930

KNOB-ADJUSTER, TENSION
(Superseded to 106-1031)

$88.99

$

Usually ships in 3-6 days

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

21

Toro 66-8600

FRAME-UPPER

$

$

Not available

22

Toro 76-1940

SPRING-EXTENSION

$

$

Not available

23

Toro 66-8560

NUT-PUSH

$7.49

$

Usually ships in 3-6 days

0

24

Toro 76-1910

SHAFT-PIVOT

$

$

Not available

25

Toro 92-7301

SPACER

$10.99

$

Usually ships in 3-6 days

0

26

Toro 69-0770

BRACKET-ARM, RH

$133.99

$

Usually ships in 3-6 days

0

Toro 69-0760

BRACKET-ARM, LH

Note: Not illustrated

$133.99

$

Usually ships in 3-6 days

0

27

Toro 92-7318

SCREW

$2.99

$

Usually ships in 3-6 days

0

28

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

29

Toro 3253-33

WASHER-LOCK

$1.99

$

In Stock, only 2 left!

0

30

Toro 93-3165

BRACKET

$

$

Not available

31

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

32

Toro 93-3163

SPRING

$29.99

$

Usually ships in 3-6 days

0

33

Toro 93-3164

CAP

$12.99

$

Usually ships in 3-6 days

0
