30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) BAFFLES AND SHROUD-ENGINE KOHLER MODEL NO. M18QS-24657 Parts Diagram

ProLine Rear-Engine Riding Mower

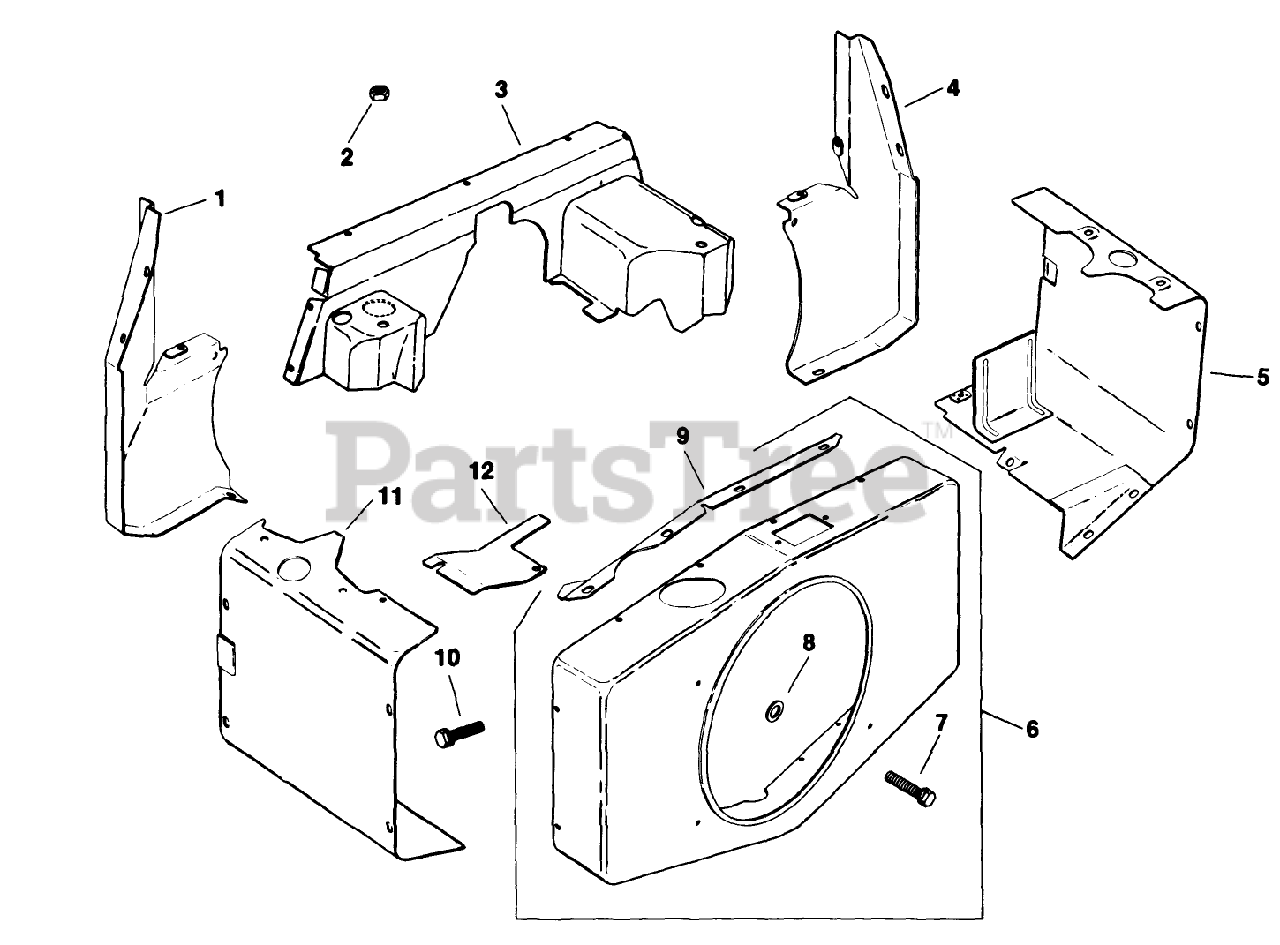

BAFFLES AND SHROUD-ENGINE KOHLER MODEL NO. M18QS-24657 Parts Diagram

  • Title
1

Toro 52_281_21

Duct-#1 Side Air

$

$

Currently unavailable

2

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

3

Toro 52_282_01

Cover-Air Duct

$

$

Currently unavailable

4

Toro 52_281_09

Duct-#2 Side Air

$

$

Currently unavailable

5

Toro 52_063_33

Baffle-#1 Cylinder Head

$

$

Currently unavailable

6

Toro 52_755_71

Kit-Blower Housing (Incl. Ref. #7, 8 & 12)

$

$

Currently unavailable

7

Toro 52_086_11

Screw-H.C

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

10

Toro 52_063_21

Baffle-Cylinder Head

$

$

Currently unavailable

11

Toro 52_063_01

Baffle-Cylinder Head

$

$

Currently unavailable

12

Toro 52_217_01

Support-Upper Housing

$

$

Currently unavailable
