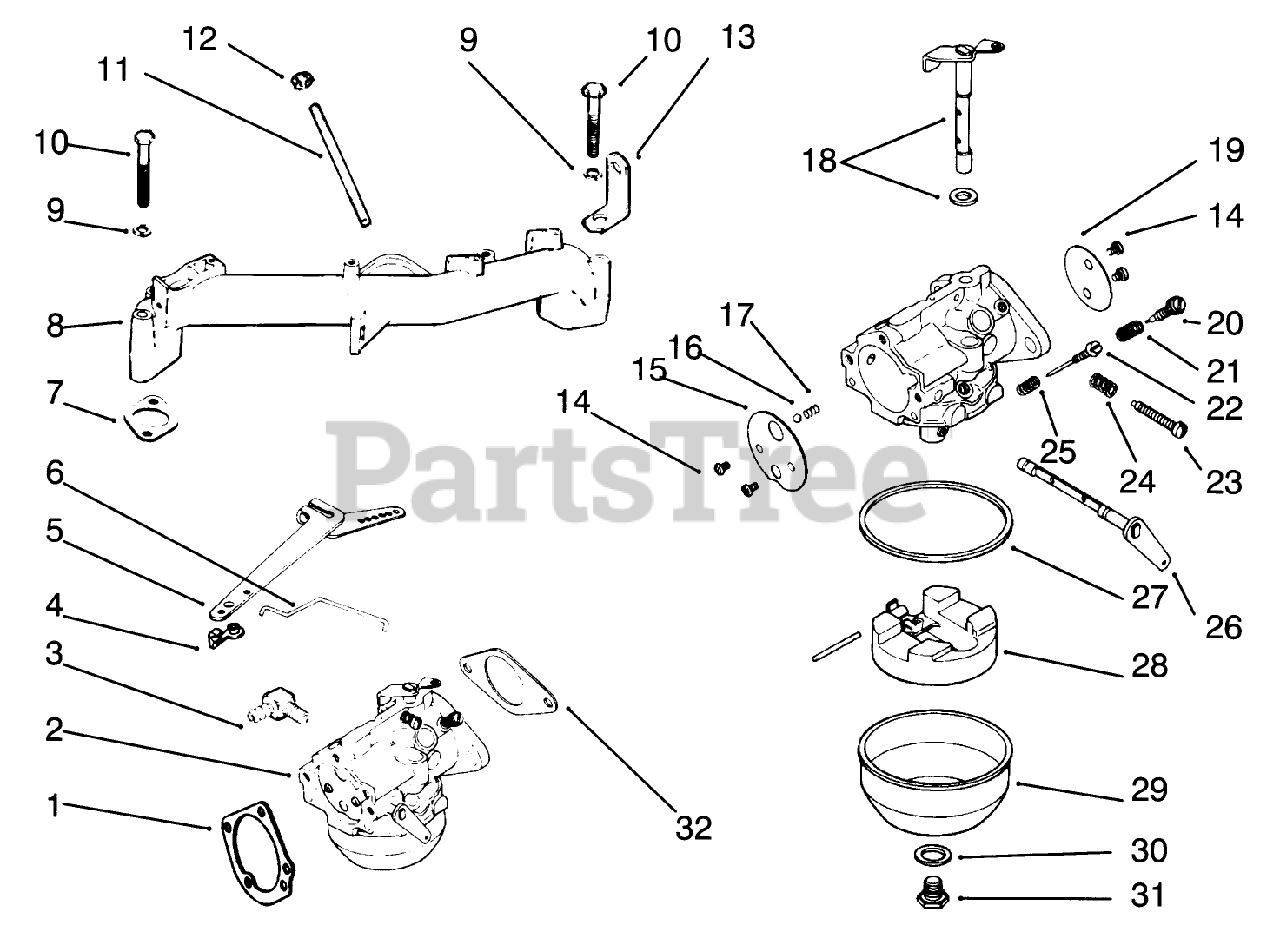

30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) CARBURETOR Parts Diagram

ProLine Rear-Engine Riding Mower

CARBURETOR Parts Diagram

  • Title

1

Kohler 277069

Gasket
(Superseded to 25 041 06)

$3.49

$

In Stock, Qty 5

0

2

Toro 52_053_66

Carburetor

$

$

Currently unavailable

Toro 52_853_23

Kit-Carburetor w/Gasket (Incl. Ref. #1-8 & 14-31) (For Information Only, Not Available Seperately)

Note: Not illustrated

$

$

Currently unavailable

Toro 25_757_11

Carburetor Repair Kit

Note: Not illustrated

$

$

Currently unavailable

3

Toro 25_155_02

Connector-90deg.

$

$

Currently unavailable

4

Toro 25_158_09

Bushing

$

$

Currently unavailable

5

Toro 52_186_06

Arm-Governor

$

$

Currently unavailable

6

Toro 82_755_07

Kit-Governor Linkage (Incl. Ref. #13)

$

$

Currently unavailable

7

Toro 52_041_09

Gasket-Intake

$

$

Currently unavailable

8

Toro 52_164_10

Manifold-Intake

$

$

Currently unavailable

9

Kohler X-21-1

Washer
(Superseded to X-21-1-S)

$3.99

$

Usually ships in 2-5 days

0

10

Kohler X-6-8

Screw-H.C.
(Superseded to X-6-8-S)

$

$

Not available

11

Kohler X-352-37

Stud
(Superseded to X-352-37-S)

$

$

Not available

12

Kohler X-77-2

Nut
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

13

Toro 52_445_02

Strap-Lifting

$

$

Currently unavailable

14

Toro 25_086_27

Screw-Throttle Plate

$

$

Currently unavailable

15

Toro 25_146_03

Plate-Choke

$

$

Currently unavailable

16

Toro 25_194_01

Ball-Choke

$

$

Currently unavailable

17

Toro 25_089_03

Spring-Choke

$

$

Currently unavailable

18

Toro 52_144_18

Shaft-Throttle Lever & Sea

$

$

Currently unavailable

19

Toro 25_146_02

Plate-Throttle

$

$

Currently unavailable

20

Toro 25_368_01

Valve-Needle

$

$

Currently unavailable

21

Toro 25_089_02

Spring

$

$

Currently unavailable

22

Toro 25_368_03

Needle-Main Fuel

$

$

Currently unavailable

23

Toro 25_086_26

Screw

$

$

Currently unavailable

24

Toro 25_089_04

Spring

$

$

Currently unavailable

25

Toro 25_089_02

Spring

$

$

Currently unavailable

26

Toro 52_090_12

Lever-Choke

$

$

Currently unavailable

27

Toro 25_041_04

Bowl-Gasket

$

$

Currently unavailable

28

Toro 25_757_09

Float Kit-(Incl. Pin)

$

$

Currently unavailable

29

Toro 25_104_01

Bowl

$

$

Currently unavailable

30

Toro 25_041_03

Gasket-Bowl

$

$

Currently unavailable

31

Toro 25_100_05

Screw-Bowl

$

$

Currently unavailable

32

Kohler 271030

Gasket
(Superseded to 271030-S)

$7.49

$

In Stock, Qty 6

0
