30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) CRANKCASE Parts Diagram

ProLine Rear-Engine Riding Mower

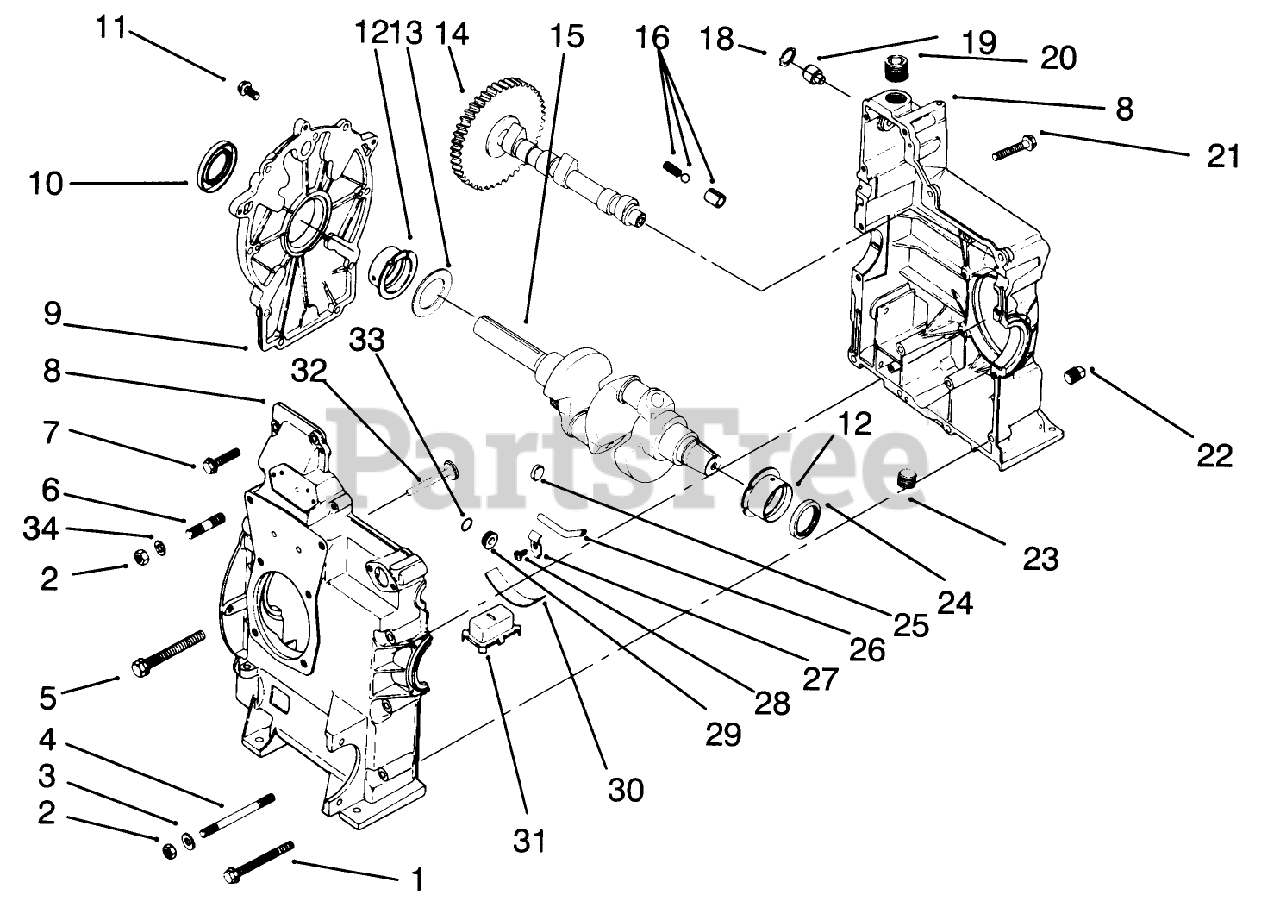

CRANKCASE Parts Diagram

  • Title

1

Toro 25_086_11

Screw-Hex Flange

$

$

Currently unavailable

2

Kohler X-82-2

Nut
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

3

Toro 41_468_01

Washer-Flat

$

$

Currently unavailable

4

Kohler X-352-33

Stud
(Superseded to 25 086 11-S)

$6.99

$

In Stock, only 1 left!

0

5

Toro 25_086_13

Screw-Hex Flange

$

$

Currently unavailable

6

Toro 52_072_12

Stud

$

$

Currently unavailable

7

Toro 25_086_10

Screw-Hex Flange

$

$

Currently unavailable

8

Cranckcase (Service With Shortblock

$

$

Not available

9

Toro 52_755_57

Kit-Closure Plate (Incl. Ref. #10)

$

$

Currently unavailable

10

Kohler X-583-5

Seal-RearOil
(Superseded to X-583-5-S)

$21.99

$

In Stock, only 4 left!

0

11

Kohler X-802-9

Screw-Wash Head
(Superseded to X-802-9-S)

$

$

Not available

12

Toro 52_030_12

Bearing-Sleeve .020"

$

$

Currently unavailable

Toro 52_030_11

Bearing-Sleeve .010"

$

$

Currently unavailable

Toro 52_030_10

Bearing-Sleeve

$

$

Currently unavailable

13

Toro 52_468_03

Washer-Thrust

$

$

Currently unavailable

Toro 52_468_04

Washer-Thrust

$

$

Currently unavailable

Toro 52_468_05

Washer-Thrust

$

$

Currently unavailable

14

Toro 52_012_09

Camshaft

$

$

Currently unavailable

15

Toro 52_014_64

Crankshaft

$

$

Currently unavailable

16

Toro 52_755_50

Kit-Oil Relief

$

$

Currently unavailable

18

Kohler X-269-43

Ring-Retaining
(Superseded to X-269-43-S)

$3.49

$

Usually ships in 2-5 days

0

19

Toro 52_078_05

Shaft-Governor

$

$

Currently unavailable

20

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 3 left!

0

21

Toro 25_086_12

Screw-Hex Flange

$

$

Currently unavailable

22

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

$2.49

$

In Stock, Qty 13

0

23

Kohler X-75-32

Plug-Hex
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

24

Toro 52_032_10

Seal-ReAR Oil

$

$

Currently unavailable

25

Kohler X-702-15

Plug-Cup
(Superseded to X-702-15-S)

$2.99

$

Usually ships in 2-5 days

0

26

Toro 52_123_10

Tube-Oil Pickup

$

$

Currently unavailable

27

Toro 52_237_05

Clamp

$

$

Currently unavailable

28

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$

$

Not available

29

Toro 52_139_08

Plug

$

$

Currently unavailable

30

Toro 52_237_02

Clip-Spring

$

$

Currently unavailable

31

Toro 52_095_03

Housing-Oil

$

$

Currently unavailable

32

Toro 52_019_03

Tappet

$

$

Currently unavailable

33

Toro 52_141_02

0-Ring

$

$

Currently unavailable

34

Toro 52_468_12

Washer-Flat

$

$

Currently unavailable
