30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) CYLINDER BARREL, HEADS AND VALVES Parts Diagram

ProLine Rear-Engine Riding Mower

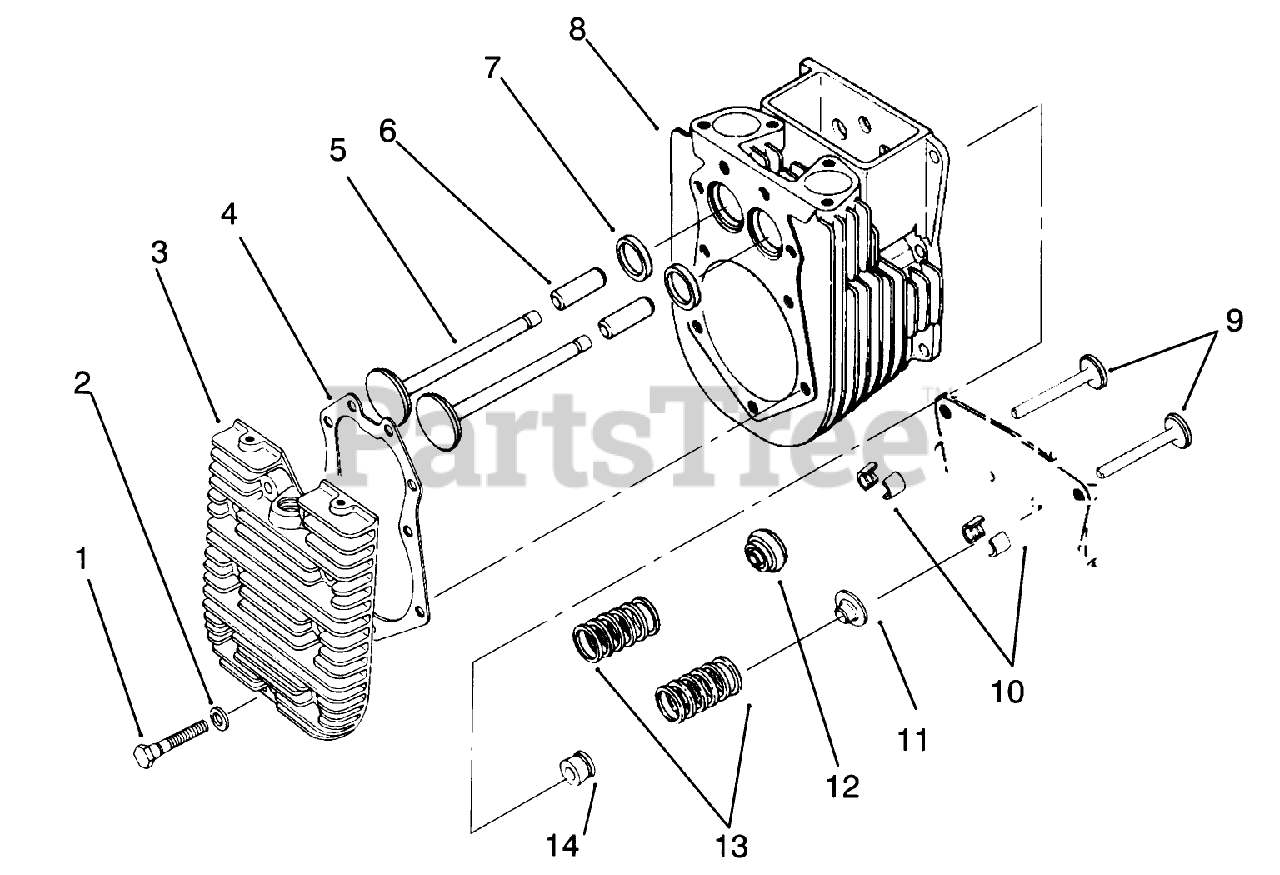

CYLINDER BARREL, HEADS AND VALVES Parts Diagram

  • Title

1

Toro 41_086_02

Screw H.C.

$

$

Currently unavailable

2

Kohler 220534

Washer
(Superseded to 220534-S)

$5.49

$

In Stock, Qty 5

0

3

Toro 52_015_08

Head-Cylinder

$

$

Currently unavailable

4

Toro 52_041_18

Gasket-Head

$

$

Currently unavailable

5

Toro 52_016_05

Valve-Exhaust

$

$

Currently unavailable

Toro 52_017_08

Valve-Intake

$

$

Currently unavailable

6

Toro 52_316_06

Guide-Valve

$

$

Currently unavailable

7

Toro 52_031_01

Inset-Valve Seat

$

$

Currently unavailable

8

Toro 82_755_17

Kit-#2 Cylinder Barrel (Incl. Ref. #2-4)

$

$

Currently unavailable

Toro 82_755_16

Kit-#1 Cylinder Barrel (Incl. Ref. #2-4)

$

$

Currently unavailable

9

Toro 52_019_03

Tappet

$

$

Currently unavailable

10

Toro 41_755_10

Kit-Retainer

$

$

Currently unavailable

11

Kohler 230011

Retainer-Spring
(Superseded to 230011-S)

$9.49

$

In Stock, Qty 11

0

12

Toro 52_413_01

Rotator

$

$

Currently unavailable

13

Toro 25_098_01

Spring-Valve

$

$

Currently unavailable

14

Toro 52_032_13

Seal-Valve Stem

$

$

Currently unavailable
