30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1980) AIR CLEANER ASSEMBLY 27-7090 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

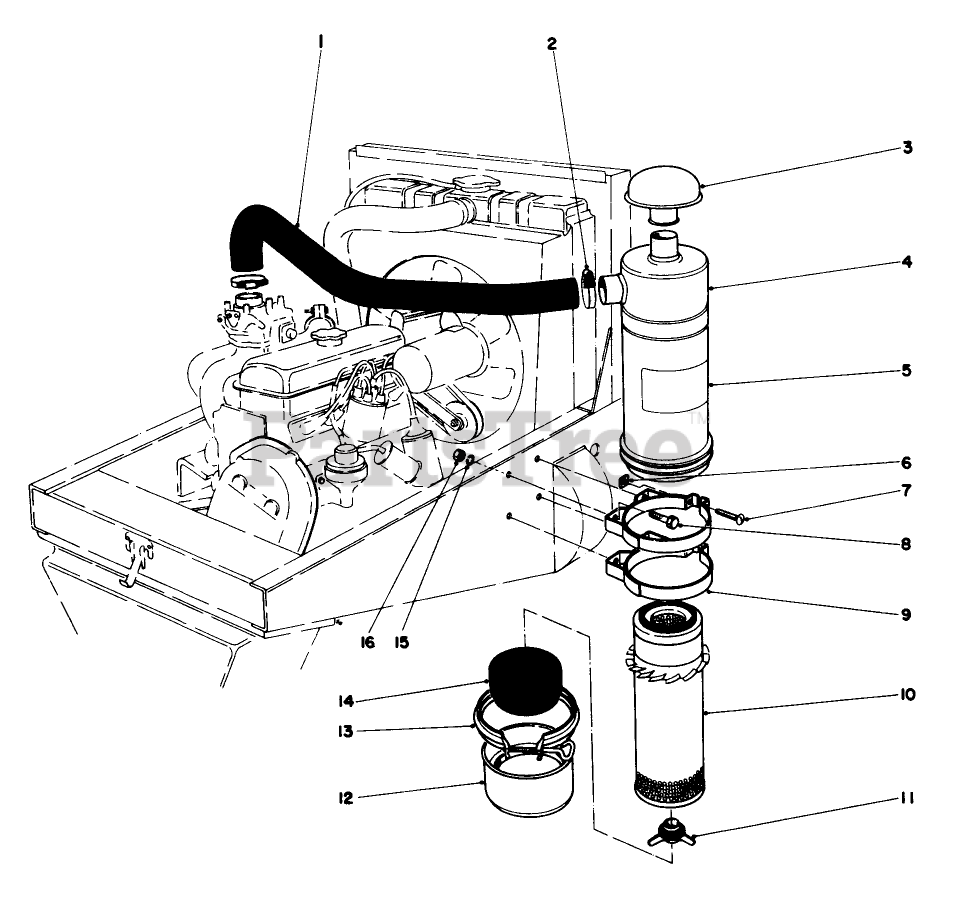

AIR CLEANER ASSEMBLY 27-7090 Parts Diagram

  • Title

1

Toro 27-7200

AIR CLEANER HOSE

$116.99

$

Usually ships in 3-6 days

0

2

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

3

Toro 27-7180

CAP

$74.99

$

Usually ships in 3-6 days

0

4

Toro 27-7100

Air Cleaner Assembly (Incl. Ref. #5 & 10-14)

$451.99

$

Usually ships in 3-6 days

0

5

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

6

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 27-7170

Band Assembly Mounting (Incl. Ref.#6 & 7)

$

$

Not available

10

Toro 27-7110

ELEMENT ASM
(Superseded to 108-3833)

$29.99

$

In Stock, only 3 left!

0

11

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

12

Toro 27-7150

A/C CUP ASM

$95.99

$

Usually ships in 3-6 days

0

13

Toro 27-7130

CLAMP ASM

$52.99

$

Usually ships in 3-6 days

0

14

Toro 27-7140

SKIRT-BAFFLE

$110.99

$

Usually ships in 3-6 days

0

15

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

Toro 27-7220

CLEANER FILTER

Note: Not illustrated

$

$

Not available
