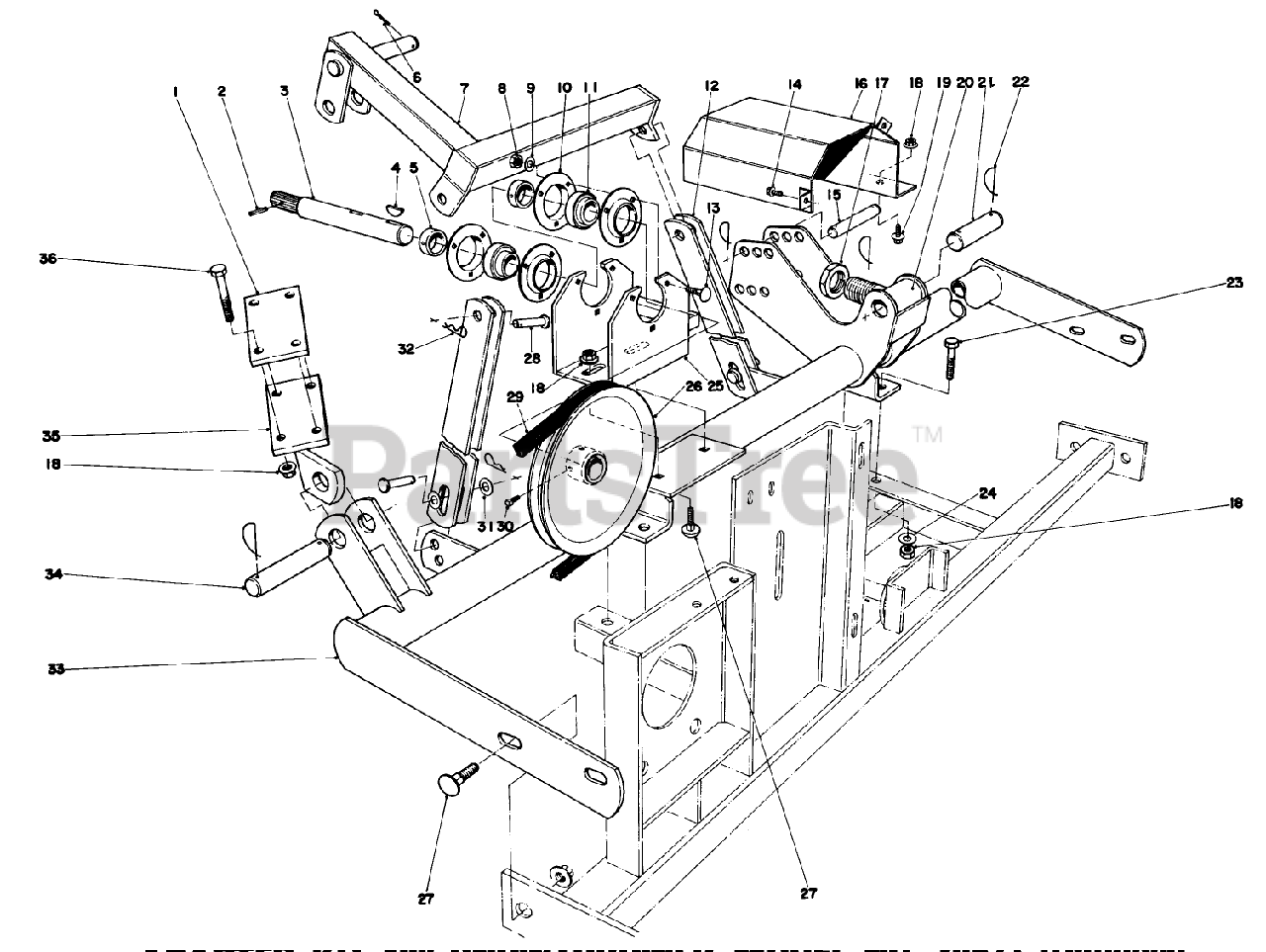

30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) ADAPTER KIT 48" SNOWTHROWER MODEL NO. 30571 (OPTIONAL) Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

ADAPTER KIT 48" SNOWTHROWER MODEL NO. 30571 (OPTIONAL) Parts Diagram

  • Title

1

Toro 24-2690

Camp Plate
(Superseded to 24-2690-01)

$

$

Not available

2

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 11

0

3

Toro 39-4370

JACKSHAFT

$705.99

$

Usually ships in 3-6 days

0

4

Toro 3257-8

KEY-WOODRUFF

$5.49

$

In Stock, Qty 9

0

5

Toro 251-77

COLLAR-LOCK, BEARING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

7

Toro 39-4310

LIFT ARM WA

$

$

Not available

8

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

9

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

10

Toro 251-287

FLANGE

$

$

Not available

11

Toro 251-253

Bearing (Incl. Ref. #5)

$24.99

$

Usually ships in 3-6 days

0

12

Toro 39-4340

LIFT STRAP

$

$

Not available

13

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 7

0

14

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

15

Toro 39-4350

Pin

$

$

Not available

16

Toro 39-4600

Power Take Off Shield

$

$

Not available

17

Toro 21-3000

NUT-HJ
(Superseded to 21-3000-01)

$42.99

$

Usually ships in 3-6 days

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

20

Toro 23-9930

Push Pin
(Superseded to 23-9930-01)

$

$

Not available

21

Toro 25-1350

PIN-PLAIN

$225.99

$

Usually ships in 3-6 days

0

22

Toro 5-3126

PIN-LYNCH

$0.99

$

Usually ships in 3-6 days

0

23

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 29-4730

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

25

Toro 37-5610

JACKSHAFT SUPPORT

$

$

Not available

26

Toro 39-4380

PULLEY 9 IN OD

$

$

Not available

27

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

28

Toro 283-42

PIN-CLEVIS

$46.99

$

Usually ships in 3-6 days

0

29

Toro 39-4390

V BELT

$

$

Not available

30

Toro 3242-2

SCREW-SQH

$1.99

$

In Stock, Qty 6

0

31

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

33

Toro 39-4220

Hitch Adapter

$

$

Not available

34

Toro 5-3505

Pin
(Superseded to 5-3505-01)

$

$

Not available

35

Toro 24-2680

Push Arm Bracket
(Superseded to 24-2680-01)

$

$

Not available

36

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 17

0

Toro 37-5790

Reflector

Note: Not illustrated

$

$

Not available

Toro 32104-42

1/4-20 X 3/4 THDG SCR
(Superseded to 32104-95)

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0
