30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) DIFFERENTIAL ASSEMBLY NO. 805134-2 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

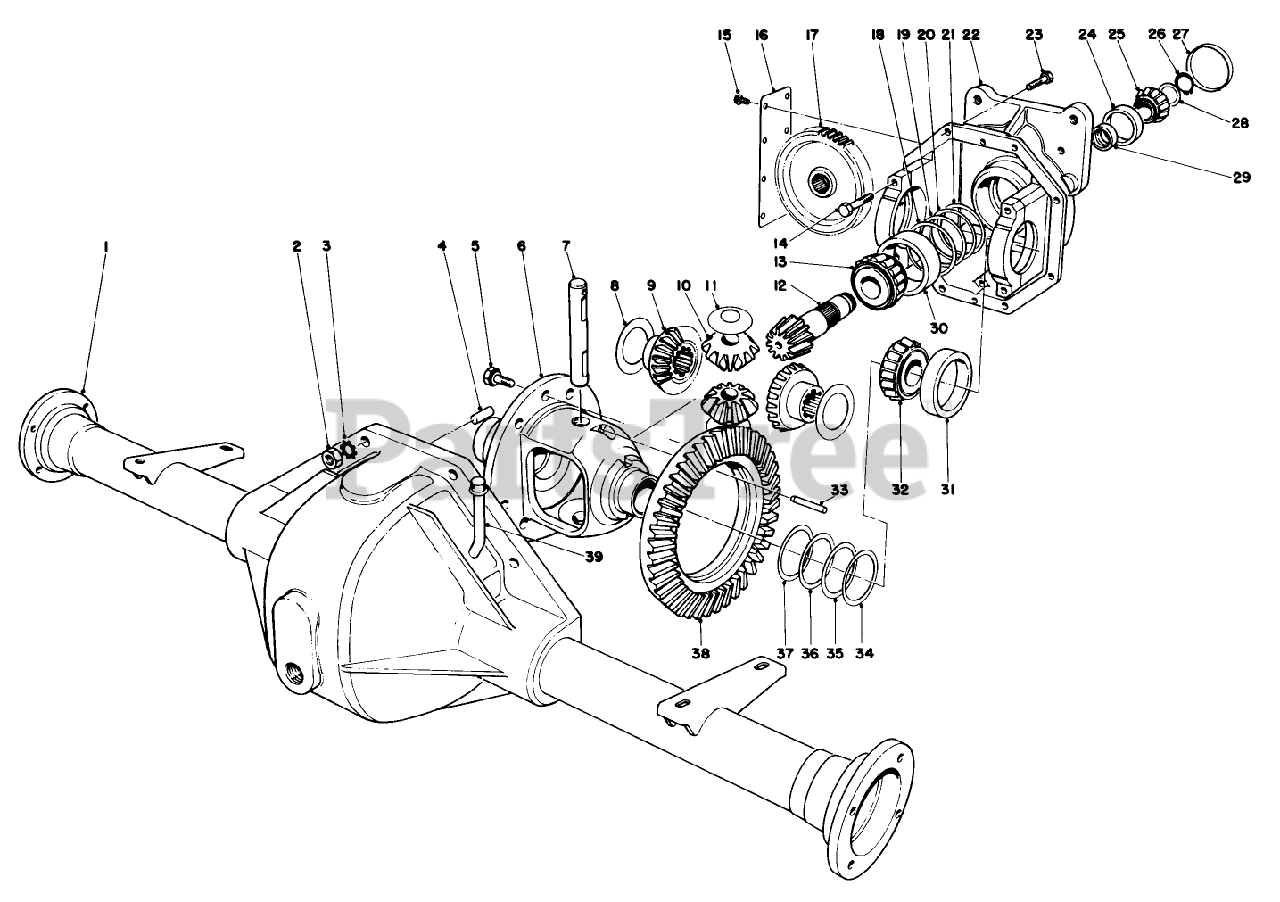

DIFFERENTIAL ASSEMBLY NO. 805134-2 Parts Diagram

  • Title

1

Toro 43-6840

HOUSING-LOWER

$

$

Not available

2

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 14

0

3

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

4

Toro 21-8270

PIN-DOWEL

$8.49

$

Usually ships in 3-6 days

0

5

Toro 21-7770

SCREW-GEAR, DRIVE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 21-7670

CASE-DIFFERENTIAL

$781.99

$

Usually ships in 3-6 days

0

7

Toro 21-7700

SHAFT-MATE, PINION

$61.99

$

Usually ships in 3-6 days

0

8

Toro 21-7720

WASHER-THRUST

$4.49

$

Usually ships in 3-6 days

0

9

Toro 24-8790

GEAR-DIFFERENTIAL
(Superseded to 110-4143)

$905.99

$

Usually ships in 3-6 days

0

10

Toro 21-7690

PINION-DIFFERENTIAL
(Superseded to 110-4143)

$905.99

$

Usually ships in 3-6 days

0

11

Toro 21-7730

WASHER-THRUST, PINION

$3.49

$

Usually ships in 3-6 days

0

12

Drive Pinion (Incl. Ref. #38)

$

$

Not available

13

Toro 43-6760

BEARING-ROLLER, CONE TAPER

$153.99

$

Usually ships in 3-6 days

0

14

Toro 324-23

SCREW-HH
(Superseded to 92-1773)

$3.99

$

Usually ships in 3-6 days

0

15

Toro 12-5450

SCREW

$8.99

$

Usually ships in 3-6 days

0

16

Toro 21-7830

COVER-GEAR

$30.99

$

Usually ships in 3-6 days

0

17

Toro 21-8150

Gear-Spur
(Superseded to 86-7230)

$785.99

$

Usually ships in 3-6 days

0

18

Toro 43-6710

SHIM-PINION (.003)

$2.99

$

Usually ships in 3-6 days

0

19

Toro 43-6711

SHIM-PINION (.005)

$4.99

$

Usually ships in 3-6 days

0

20

Toro 43-6712

SHIM-PINION (.010)

$3.99

$

Usually ships in 3-6 days

0

21

Toro 43-6713

SHIM-PINION (.030)

$8.99

$

Usually ships in 3-6 days

0

22

Toro 43-6540

Upper Housing (Incl. Ref. #14)

$

$

Not available

23

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

24

Toro 254-90

BEARING-CUP

$11.99

$

Usually ships in 3-6 days

0

25

Toro 254-91

CONE-BEARING

$20.99

$

Usually ships in 3-6 days

0

26

Toro 43-6550

RING-SNAP

$1.49

$

Usually ships in 3-6 days

0

27

Toro 21-7850

PLUG-CUP

$26.99

$

Usually ships in 3-6 days

0

28

Toro 43-6560

Shim Front Pinion Bearing .031
(Superseded to 46-2210)

$

$

Not available

Toro 43-6561

Shim Front Pinion Bearing .033
(Superseded to 46-2211)

Note: Not illustrated

$

$

Not available

Toro 43-6562

Shim Front Pinion Bearing .035
(Superseded to 46-2212)

Note: Not illustrated

$

$

Not available

Toro 43-6563

Shim Front Pinion Bearing .037
(Superseded to 46-2213)

Note: Not illustrated

$

$

Not available

Toro 43-6564

Shim Front Pinion Bearing .039
(Superseded to 46-2214)

Note: Not illustrated

$

$

Not available

Toro 43-6565

Shim Front Pinion Bearing .041
(Superseded to 46-2215)

Note: Not illustrated

$

$

Not available

Toro 43-6566

Shim Front Pinion Bearing .043
(Superseded to 46-2216)

Note: Not illustrated

$

$

Not available

Toro 43-6690

Shim Front Pinion Bearing .045
(Superseded to 46-2220)

Note: Not illustrated

$

$

Not available

Toro 43-6691

Shim Front Pinion Bearing .047
(Superseded to 46-2221)

Note: Not illustrated

$

$

Not available

Toro 43-6692

Shim Front Pinion Bearing .049
(Superseded to 46-2222)

Note: Not illustrated

$

$

Not available

Toro 43-6693

Shim Front Pinion Bearing .051
(Superseded to 46-2223)

Note: Not illustrated

$

$

Not available

Toro 43-6694

Shim Front Pinion Bearing .053
(Superseded to 46-2224)

Note: Not illustrated

$

$

Not available

Toro 43-6695

Shim Front Pinion Bearing .055
(Superseded to 46-2225)

Note: Not illustrated

$

$

Not available

Toro 43-6696

Shim Front Pinion Bearing .057
(Superseded to 46-2226)

Note: Not illustrated

$

$

Not available

29

Toro 21-8020

SPACER-BEARING

$36.99

$

Usually ships in 3-6 days

0

30

Toro 43-6750

BEARING-TAPER, CUP

$79.99

$

Usually ships in 3-6 days

0

31

Toro 254-66

CUP-BEARING, ROLLER

$16.99

$

Usually ships in 3-6 days

0

32

Toro 254-65

BEARING-ROLLER, CONE

$74.99

$

Usually ships in 3-6 days

0

33

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 20+

0

34

Toro 21-8090

SHIM-BEARING, DIFFERENTIAL (.003)

$1.49

$

Usually ships in 3-6 days

0

35

Toro 21-8100

SHIM-BEARING, DIFFERENTIAL (.005)

$4.49

$

Usually ships in 3-6 days

0

36

Toro 21-8110

SHIM-BEARING, DIFFERENTIAL (.010)

$4.99

$

Usually ships in 3-6 days

0

37

Toro 21-8120

SHIM-BEARING, DIFFERENTIAL (.030)

$6.99

$

Usually ships in 3-6 days

0

38

Ring Gear

$

$

Not available

39

Toro 21-8230

Vent Assembly
(Superseded to 72-9420)

$8.99

$

Usually ships in 3-6 days

0

Toro 43-6510

Gear & Pinion Assembly (Incl. Ref. #12 & 38)
(Superseded to 92-4848)

Note: Not illustrated

$1752.99

$

Usually ships in 3-6 days

0
