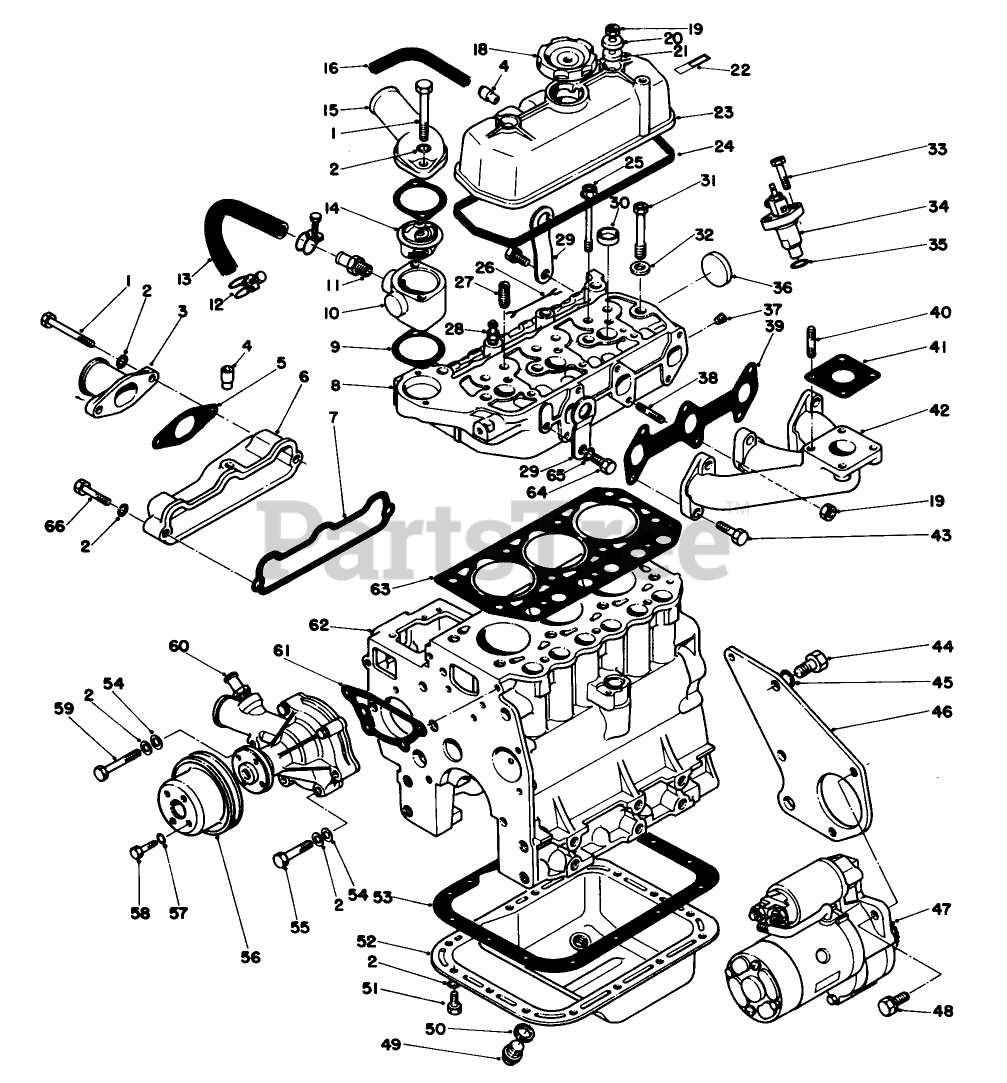

30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) ENGINE Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

ENGINE Parts Diagram

  • Title

1

Toro 42-9310

BOLT

$

$

Not available

2

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$4.49

$

In Stock, only 2 left!

0

3

Toro 42-9150

INLET PIPE MM 408564

$

$

Not available

4

Toro 42-7510

PIPE

$

$

Not available

5

Toro 42-9160

GASKET MM 408566

$

$

Not available

6

Toro 42-9120

MANIFOLD MM 408541

$

$

Not available

7

Toro 42-9140

GASKET

$

$

Not available

8

Toro 42-7450

Head Assembly, Cylinder

$

$

Not available

9

Toro 42-7550

GASKET

$26.99

$

In Stock, only 4 left!

0

10

Toro 43-1790

FITTING

$

$

Not available

11

Toro 42-7740

HOSE NIPPLE

$

$

Not available

12

Toro 43-3140

HOSE CLAMP MF 661011

$

$

Not available

13

Toro 43-3130

Hose, Water (Incl. Ref. #12)

$176.99

$

In Stock, only 2 left!

0

14

Toro 43-1780

Thermostat
(Superseded to 93-3524)

$167.99

$

In Stock, only 1 left!

0

15

Toro 42-7540

FITTING MD 008771

$

$

Not available

16

Toro 42-7430

AIR PIPE MM 408536

$

$

Not available

18

Toro 42-7420

CAP-FILLER

$

$

Not available

19

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

20

Toro 42-9800

WASHER

$

$

Not available

21

Toro 42-7490

OIL SEAL MD 000523

$

$

Not available

22

Toro 42-7530

Label-Engine No.

$

$

Currently unavailable

23

Toro 42-7500

COVER ASM MM 408491

$

$

Not available

24

Toro 42-7520

COVER GASKET

$

$

Not available

25

Toro 42-9330

CYL HD BOLT

$

$

Not available

26

Toro 42-9180

LEAD WIRE K 9670260

$

$

Not available

27

Toro 42-7460

VALVE GUIDE

$

$

Not available

28

Toro 42-7480

GLOW PLUG (12V)

$

$

Not available

29

Toro 42-7440

ENG HANGER MM 408470

$

$

Not available

30

Toro 42-7080

SEALING CAP
(Superseded to 107-4803)

$

$

Not available

30

Toro 42-7980

ADJ SCREW K 7231220

$

$

Not available

31

Toro 42-9320

CYL HD BOLT

$

$

Not available

32

Toro 42-9790

CYL HD BOLT WASHER

$

$

Not available

33

Toro 42-9390

BOLT

$

$

Not available

34

Toro 42-8110

Nozzle & Holder Assembly
(Superseded to 44-8070)

$

$

Not available

35

Toro 42-8120

HLDR GASKET K 6515430

$

$

Not available

36

Toro 42-7090

SEALING CAP

$

$

Not available

37

Toro 42-7410

1/8 PLUG MS 661120

$

$

Not available

38

Toro 42-9570

STUD

$

$

Not available

39

Toro 42-9170

GASKET

$

$

Not available

40

Toro 42-9570

STUD

$

$

Not available

41

Toro 42-9110

GASKET

$37.99

$

Usually ships in 3-6 days

0

42

Toro 43-1870

MANIFOLD

$

$

Not available

43

Toro 42-9520

Screw-HH
(Superseded to 33114-030)

$1.99

$

Usually ships in 3-6 days

0

44

Toro 42-9240

BOLT/WASHER

$

$

Not available

45

Toro 43-5940

WASHER-LOCK, SPRING

$

$

Not available

46

Toro 43-1770

REAR PLT MM 408257

$

$

Not available

47

Toro 43-0360

Starter Assembly
(Superseded to 112-1351)

$914.99

$

Usually ships in 3-6 days

0

48

Toro 43-0090

SCREW-HH

$10.99

$

In Stock, only 3 left!

0

49

Toro 42-9260

DRAIN PLUG

$

$

Not available

50

Toro 42-7290

GASKET-PLUG

$

$

Not available

51

Toro 42-9230

BOLT
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 9

0

52

Toro 42-7280

Pan Assembly Oil (Incl. Ref. #49 & 50)

$

$

Not available

53

Toro 42-7300

PAN GASKET

$

$

Not available

54

Toro 42-9660

WASHER

$

$

Not available

55

Toro 42-9500

Capscrew
(Superseded to 33114-045)

$1.99

$

Usually ships in 3-6 days

0

56

Toro 42-9070

PULLEY K9674051 F/W

$198.99

$

Usually ships in 3-6 days

0

57

Toro 43-5930

WASHER-LOCK, SPRING

$1.49

$

Usually ships in 3-6 days

0

58

Toro 42-9490

SCREW - CAP

$

$

Not available

59

Toro 42-9510

BOLT
(Superseded to 33114-060)

$1.49

$

In Stock, Qty 5

0

60

Toro 42-9080

WATER PUMP

$

$

Not available

61

Toro 42-9090

GASKET

$

$

Not available

62

Toro 42-7070

Block Sub Assembles Cylinder

$

$

Not available

63

Toro 42-7470

CYL GASKET

$

$

Not available

64

Toro 42-9300

SCREW - CAP, HH
(Superseded to 63-7790)

$3.99

$

Usually ships in 3-6 days

0

65

Toro 42-9600

WASHER-LOCK, SPRING
(Superseded to 48-9590)

$0.99

$

Usually ships in 3-6 days

0

66

Toro 42-9530

BOLT/WASHER
(Superseded to 33114-040)

$1.99

$

Usually ships in 3-6 days

0

Toro 42-9200

Complete Gasket Set
(Superseded to 99-5663)

Note: Not illustrated

$

$

Not available

Toro 43-6440

Compression Gauge Adapter

Note: Not illustrated

$

$

Not available

Toro 43-6450

Tool-Camshaft Bushing Installation

Note: Not illustrated

$

$

Not available

Toro 43-6460

Piston Setting Tool

Note: Not illustrated

$

$

Not available

Toro 43-7580

Nozzle Tester Connecting Pipe

Note: Not illustrated

$

$

Not available
