30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) PRIMER PUMP ASSEMBLY NO. 43-5760 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

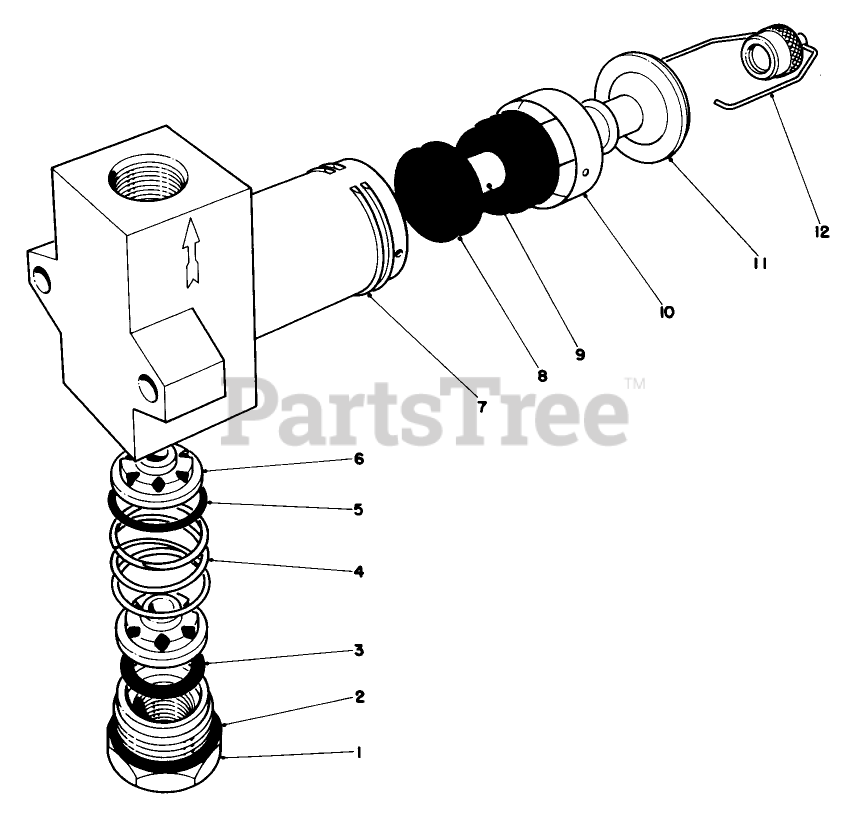

PRIMER PUMP ASSEMBLY NO. 43-5760 Parts Diagram

  • Title

1

Toro 43-5830

VALVE NUT

$

$

Not available

2

Toro 43-5820

SEAL

$

$

Not available

3

Toro 43-5810

VALVE SEAL

$

$

Not available

4

Toro 43-5800

SPRING

$

$

Not available

5

Toro 43-5790

VALVE SEAL

$

$

Not available

6

Toro 43-5780

PRIME PUMP VALVE

$

$

Not available

7

Toro 43-5770

Body-Hand Primer
(Superseded to 43-5760)

$

$

Not available

8

Toro 43-5840

Seal-Hand Primer Piston
(Superseded to 42-6070)

$

$

Not available

9

Toro 43-5850

Plunger-Hand Primer
(Superseded to 42-6070)

$

$

Not available

10

Toro 43-5870

Cap-Plunger
(Superseded to 42-6070)

$

$

Not available

11

Toro 43-5860

Guide-Hand Primer Plunger
(Superseded to 42-6070)

$

$

Not available

12

Toro 43-5880

CLAMP

$

$

Not available
