30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) STARTER ASSEMBLY NO. 43-0360 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

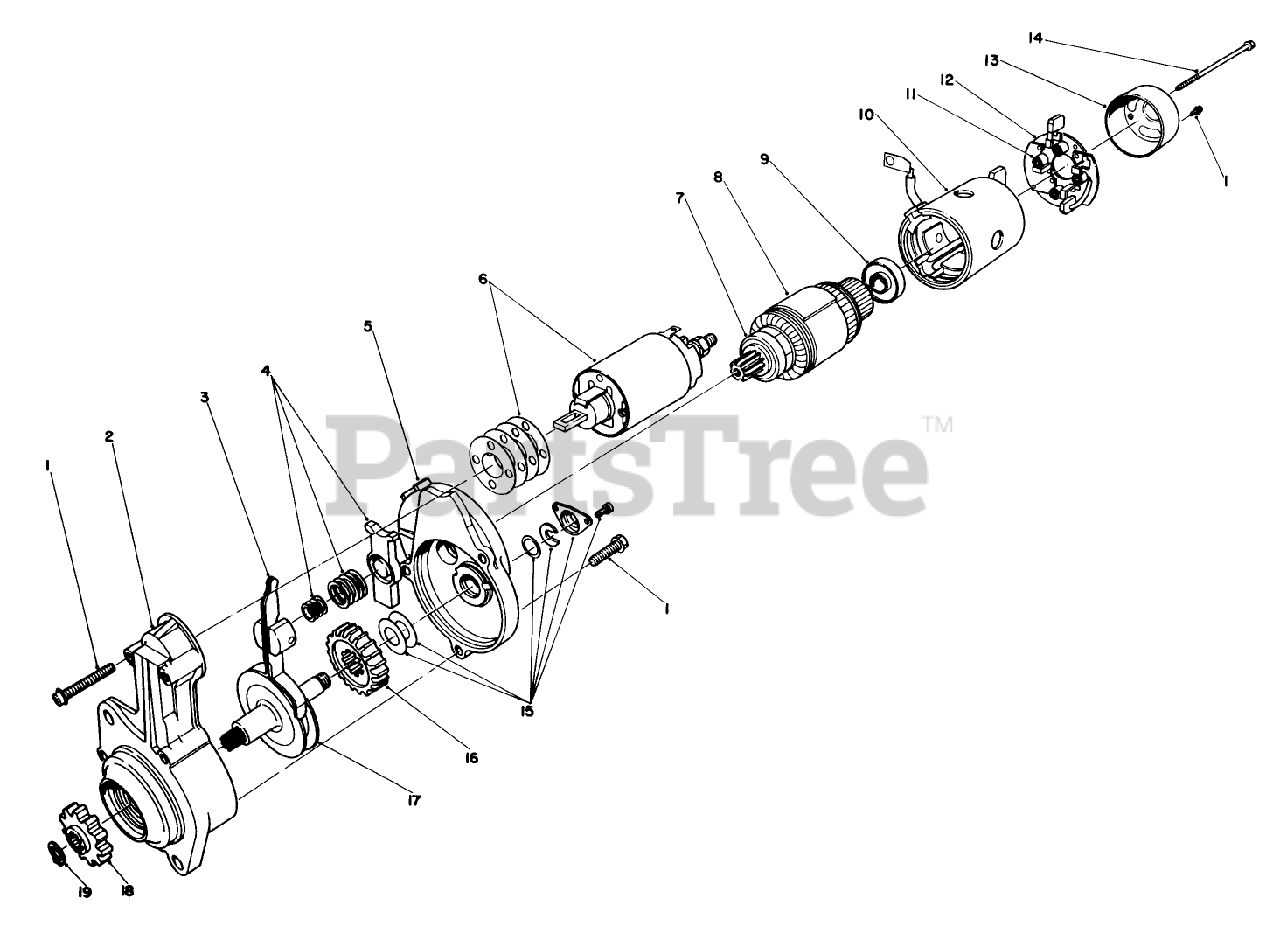

STARTER ASSEMBLY NO. 43-0360 Parts Diagram

  • Title

1

Toro 43-0140

Screw Set

$

$

Not available

2

Toro 43-0170

Bracket Assembly, Front

$

$

Not available

3

Toro 43-0180

Lever Assembly

$

$

Not available

4

Toro 43-0190

SPRING SET

$

$

Not available

5

Toro 43-0200

Bracket Assembly Center

$

$

Not available

6

Toro 43-0210

Switch Assembly
(Superseded to 46-7660)

$

$

Not available

7

Toro 43-0230

Bearing Front

$

$

Not available

8

Toro 43-0220

Armature Set (Incl. Ref. #7 & 9)

$

$

Not available

9

Toro 43-0240

Bearing Rear

$

$

Not available

10

Toro 43-0320

Yoke Assembly

$

$

Not available

11

Toro 43-0340

BRUSH SPRG

$

$

Not available

12

Toro 43-0330

Brush Holder Assembly (Incl. Ref. #11)

$

$

Not available

13

Toro 43-0350

Bracket Rear

$

$

Not available

14

Toro 43-0150

BOLT

$

$

Not available

15

Toro 43-0310

Cover Set

$

$

Not available

16

Toro 43-0300

GEAR MD 607458

$

$

Not available

17

Toro 43-0290

Shaft Assembly Pinion

$

$

Not available

18

Toro 43-0260

Pinion Set (Incl. Ref. #19)

$

$

Not available

19

Toro 43-0270

Snap Ring

$

$

Not available

Toro 43-0280

Gear Set (Incl. Ref. #16 & 17)

Note: Not illustrated

$

$

Not available

Toro 43-0250

Shaft Assembly, Clutch Set (Incl. Ref. #15-19)

Note: Not illustrated

$

$

Not available
