30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) CUTTING UNIT MODEL NO. 30721 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

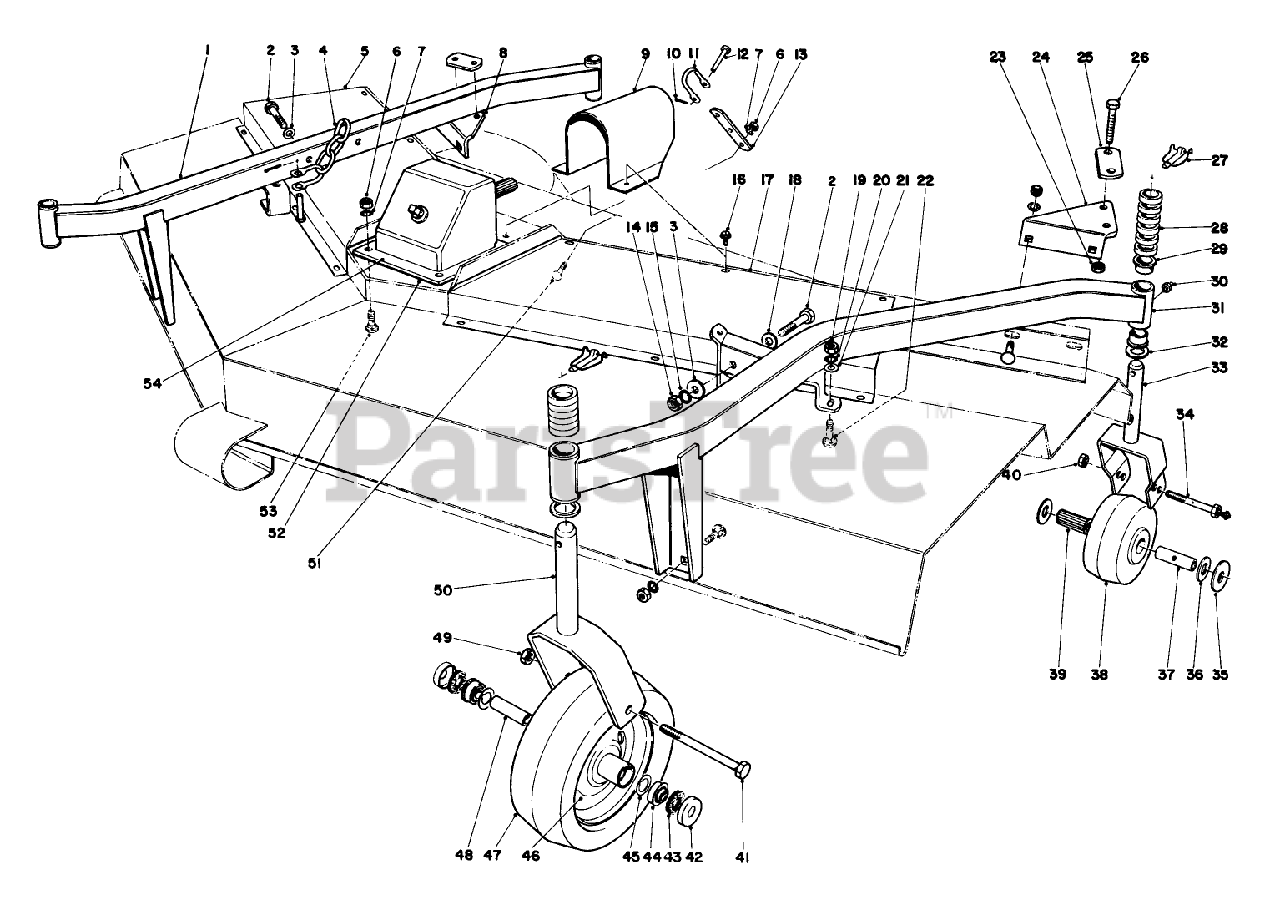

CUTTING UNIT MODEL NO. 30721 Parts Diagram

  • Title

1

Toro 26-1490

Caster Arm R.H. (Incl. Ref. #29)

$

$

Not available

2

Toro 324-12

SCREW-HH
(Superseded to 3241-7)

$3.99

$

In Stock, Qty 5

0

3

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

4

Toro 21-3160

Lift Chain
(Superseded to 3-1365)

$

$

Not available

5

Toro 26-1890

RH DECK COVER R

$

$

Not available

6

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 13

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

8

Toro 39-3340

Bracket-Clamp
(Superseded to 39-3340-01)

$

$

Not available

9

Toro 26-2250

Shroud Universal
(Superseded to 93-9838-03)

$

$

Not available

10

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

11

Toro 5-2942

SHACKLE

$

$

Not available

12

Toro 283-10

PIN-CLEVIS

$9.99

$

Usually ships in 3-6 days

0

13

Toro 21-3770

Lift Strap
(Superseded to 21-3770-01)

$

$

Not available

14

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

15

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

16

Toro 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

17

Toro 26-1900

LH DECK COVER R

$

$

Not available

18

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

19

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

21

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 3233-1

SCREW-CARR

$8.49

$

Usually ships in 3-6 days

0

23

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

24

Toro 39-7450

Bracket-Clamp
(Superseded to 39-7450-01)

$129.99

$

Usually ships in 3-6 days

0

25

Toro 39-3330

Bar-Caster Clamp
(Superseded to 39-3330-01)

$

$

Not available

26

Toro 325-13

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3290-384

PIN-LYNCH

$21.99

$

Usually ships in 3-6 days

0

28

Toro 26-1580

SPACER 1/2 IN

$

$

Not available

29

Toro 28-9290

Bushing
(Superseded to 94-1291)

$10.99

$

In Stock, only 4 left!

0

30

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 10

0

31

Toro 26-1430

Caster Arm L.H. (Incl. Ref. #29)

$

$

Not available

32

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

33

Toro 26-1560

Caster Fork Rear
(Superseded to 99-5690)

$

$

Not available

34

Toro 21-3870

AXLE ASM

$

$

Not available

35

Toro 46-8970

WASHER

$6.99

$

Usually ships in 3-6 days

0

36

Toro 46-9030

BEARING RETAINER

$5.99

$

Usually ships in 3-6 days

0

37

Toro 21-1030

SPANNER BUSHING

$

$

Not available

38

Toro 21-3860

WHEEL

$

$

Not available

39

Toro 21-3850

ROLLER BRG W/46-8960

$

$

Not available

40

Toro 32146-11

Nut
(Superseded to 3296-19)

$1.49

$

In Stock, Qty 20+

0

41

Toro 325-21

Screw
(Superseded to 325-22)

$8.49

$

In Stock, Qty 7

0

42

Toro 3-6778

AXLE SLINGER B

$2.99

$

Usually ships in 3-6 days

0

43

Toro 3-6777

WASHER

$2.99

$

Usually ships in 3-6 days

0

44

Toro 251-181

.500 RF BALL BEARING

$

$

Not available

45

Toro 3-6775

WASHER

$

$

Not available

46

Toro 11-2929

Caster Wheel & Tire (Incl. Ref. #47)
(Superseded to 95-3082)

$161.99

$

Usually ships in 3-6 days

0

47

Toro 46-6230

TIRE

$

$

Not available

48

Toro 3-6776

SPACER

$

$

Not available

49

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

50

Toro 26-1530

Caster Fork
(Superseded to 26-1530-01)

$204.99

$

Usually ships in 3-6 days

0

51

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 4 left!

0

52

Toro 38-5780

SPACER R

$

$

Not available

53

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

54

Toro 8-0909

GEAR BOX ASM

$

$

Not available
