30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) DELUXE SEAT KIT MODEL NO. 30786 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

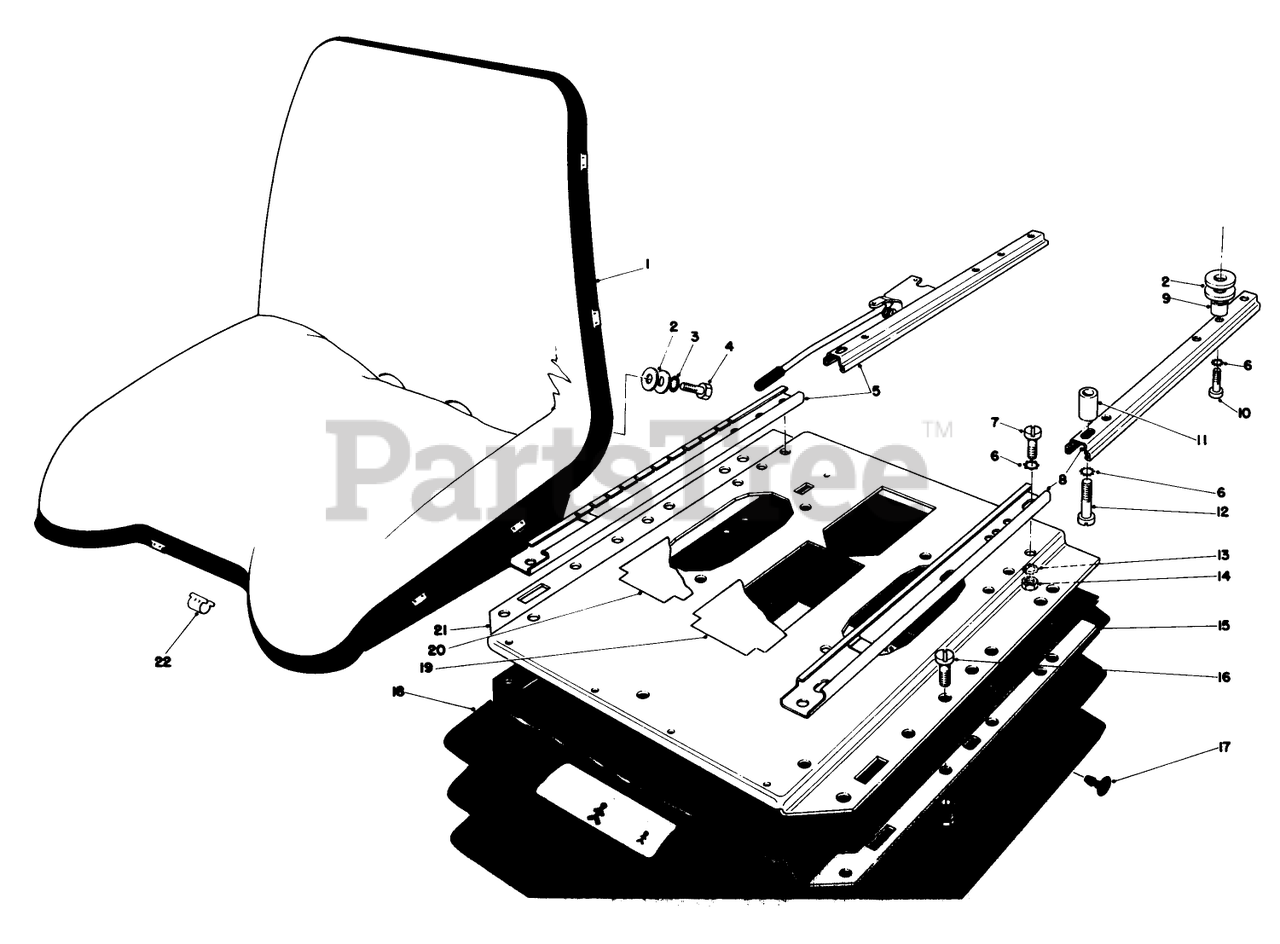

DELUXE SEAT KIT MODEL NO. 30786 Parts Diagram

  • Title

1

Toro 39-5730

BUCKET SEAT

$

$

Not available

2

Toro 39-5690

13 MM WASHER

$

$

Not available

3

Toro 39-5680

SERRATED WASHER

$

$

Not available

4

Toro 39-5670

HEX HD CAPSCREW

$

$

Not available

5

Toro 40-3790

ADJ TRACK & LATCH

$

$

Not available

6

Toro 40-3800

SERRATED WASHER

$

$

Not available

7

Toro 40-3810

Cylinder Bolt M8X16

$

$

Not available

8

Toro 40-3820

ADJ TRACK

$505.99

$

Usually ships in 3-6 days

0

9

Toro 40-3830

SLEEVE

$

$

Not available

10

Toro 40-3840

CYL BOLT

$

$

Not available

11

Toro 40-3850

SLEEVE

$

$

Not available

12

Toro 40-3860

CYL BOLT

$

$

Not available

13

Toro 40-3870

SPRING WASHER

$

$

Not available

14

Toro 40-3880

Nut M8
(Superseded to 68-9400)

$2.99

$

In Stock, only 2 left!

0

15

Toro 40-3890

TRIM

$113.99

$

Usually ships in 3-6 days

0

16

Toro 39-9220

CAPSCREW

$

$

Not available

17

Toro 39-5710

PLUG-PLASTIC

$9.49

$

Usually ships in 3-6 days

0

18

Toro 40-3900

BELLOWS

$

$

Not available

19

Toro 40-3910

CENTER COVER

$

$

Not available

20

Toro 40-3920

COVER

$

$

Not available

21

Toro 40-3930

Upper Suspension Plate Complete

$

$

Not available

22

Toro 39-9540

OUTSIDE CLAMP

$

$

Not available

Toro 37-9630

Seat ASM-Complete

Note: Not illustrated

$

$

Not available
