30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) V-PLOW INSTALLATION KIT MODEL NO. 30757 (OPTIONAL) Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

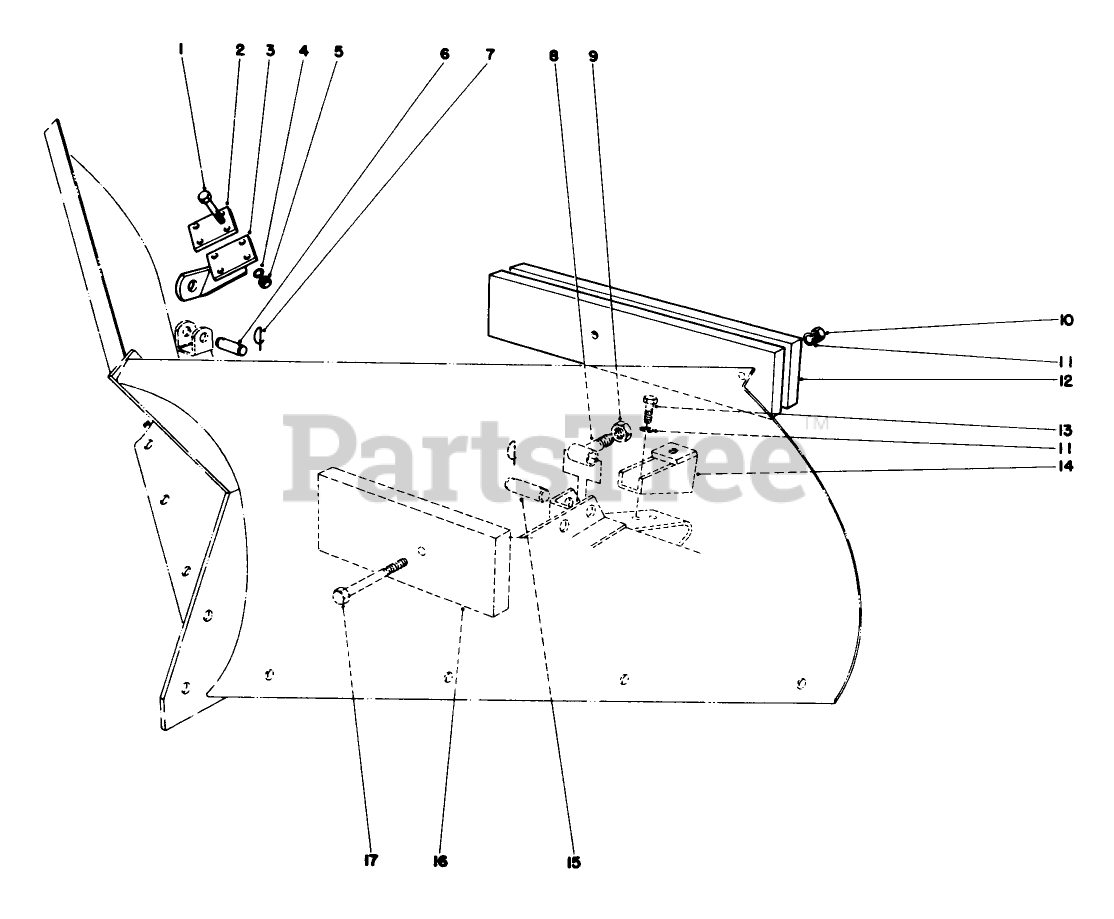

V-PLOW INSTALLATION KIT MODEL NO. 30757 (OPTIONAL) Parts Diagram

  • Title

1

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 17

0

2

Toro 24-2690

Camp Plate
(Superseded to 24-2690-01)

$

$

Not available

3

Toro 24-2680

Push Arm Bracket
(Superseded to 24-2680-01)

$

$

Not available

4

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

5

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 14

0

6

Toro 5-3505

Pin
(Superseded to 5-3505-01)

$

$

Not available

7

Toro 5-3126

PIN-LYNCH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 23-9930

Push Pin
(Superseded to 23-9930-01)

$

$

Not available

9

Toro 21-3000

NUT-HJ
(Superseded to 21-3000-01)

$42.99

$

Usually ships in 3-6 days

0

10

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

12

Toro 24-2660

Outside Weight
(Superseded to 24-2660-01)

$

$

Not available

13

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

14

Toro 24-2630

Stop
(Superseded to 24-2630-01)

$

$

Not available

15

Toro 25-1350

PIN-PLAIN

$225.99

$

Usually ships in 3-6 days

0

16

Toro 24-2670

Inside Weight
(Superseded to 24-2670-01)

$

$

Not available

17

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 8

0

Toro 11-0390

TIRE CHAIN (SET OF 2)

Note: Not illustrated

$

$

Not available
