30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) CONTROL VALVE-43-1710 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

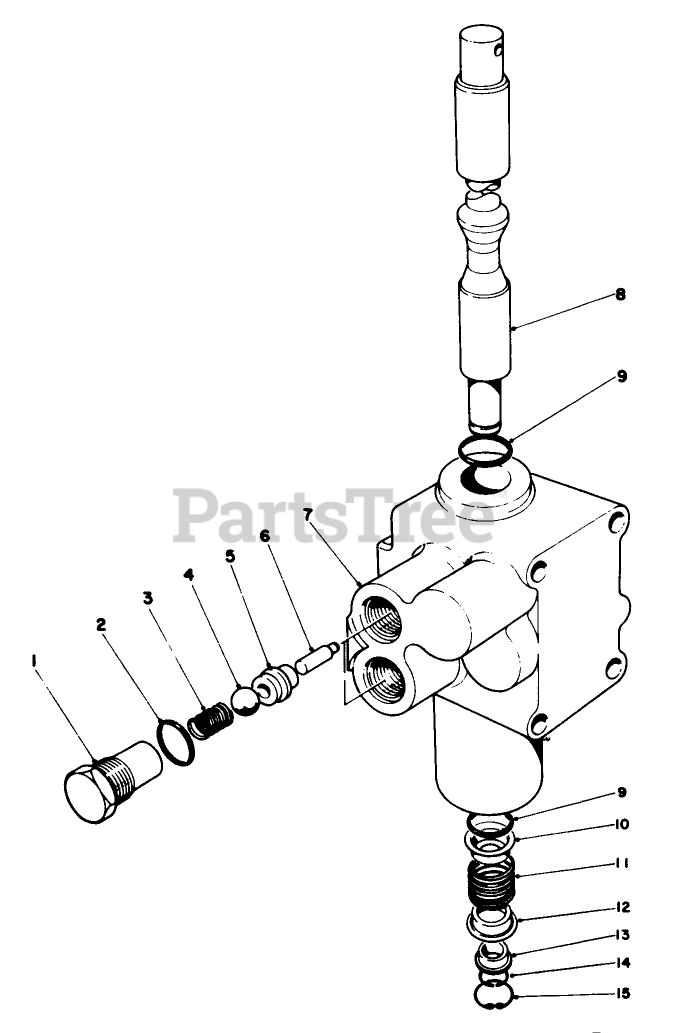

CONTROL VALVE-43-1710 Parts Diagram

  • Title

1

Toro 22-8330

PLUG

$60.99

$

Usually ships in 3-6 days

0

2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

3

Toro 22-8340

SPRING

$21.99

$

Usually ships in 3-6 days

0

4

Toro 22-8350

BALL

$13.99

$

Usually ships in 3-6 days

0

5

Toro 22-8370

SEAT-VALVE

$99.99

$

Usually ships in 3-6 days

0

6

Toro 22-8360

PIN

$53.99

$

Usually ships in 3-6 days

0

8

Toro 22-8420

SPOOL

$496.99

$

Usually ships in 3-6 days

0

9

Toro 22-8500

O-RING

$19.99

$

Usually ships in 3-6 days

0

10

Toro 22-8380

RETAINER

$23.99

$

Usually ships in 3-6 days

0

11

Toro 22-8410

SPRING

$20.99

$

Usually ships in 3-6 days

0

12

Toro 22-8390

RETAINER

$64.99

$

Usually ships in 3-6 days

0

13

Toro 22-8400

SPACER

$46.99

$

Usually ships in 3-6 days

0

14

Toro 22-8480

RING-SNAP

$59.99

$

Usually ships in 3-6 days

0

15

Toro 22-8490

RING-SNAP

$8.49

$

Usually ships in 3-6 days

0
