30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) HYDRAULIC CYLINDER ASSEMBLY-21-0390 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

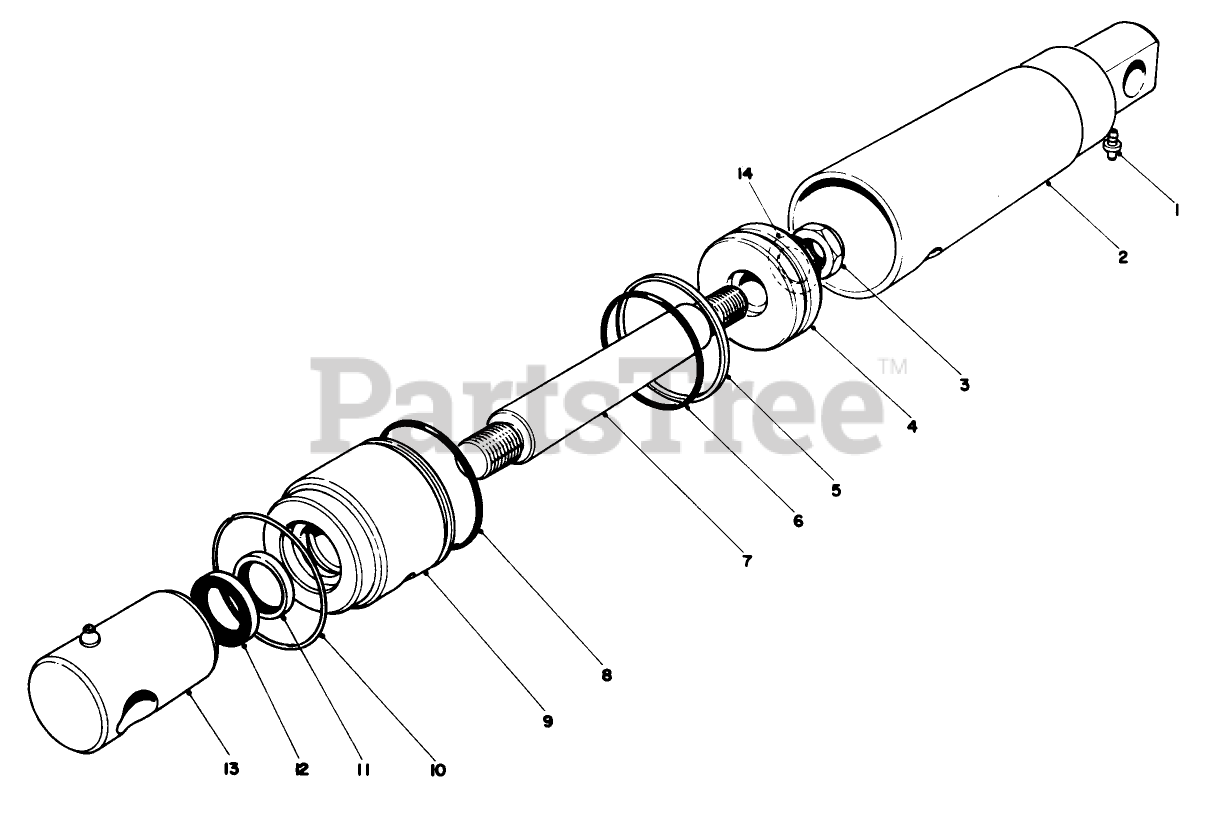

HYDRAULIC CYLINDER ASSEMBLY-21-0390 Parts Diagram

  • Title

1

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

2

Toro 21-9040

Barrel Assembly
(Superseded to 100-6592)

$

$

Not available

3

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 9

0

4

Toro 21-9080

PISTON

$

$

Not available

5

Slipper Ring

$

$

Not available

7

Toro 21-9030

Piston Rod

$

$

Not available

9

Toro 21-9070

Bearing

$

$

Not available

10

Lock Ring

$

$

Not available

11

Seal ASM

$

$

Not available

12

Seal Wiper

$

$

Not available

13

Toro 21-9060

Rod End

$

$

Not available

14

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

Toro 21-9100

Seal Repair Kit (Incl. Ref. 5-6, 8 & 10-12)

Note: Not illustrated

$

$

Not available
